Chapter 4: System Setup

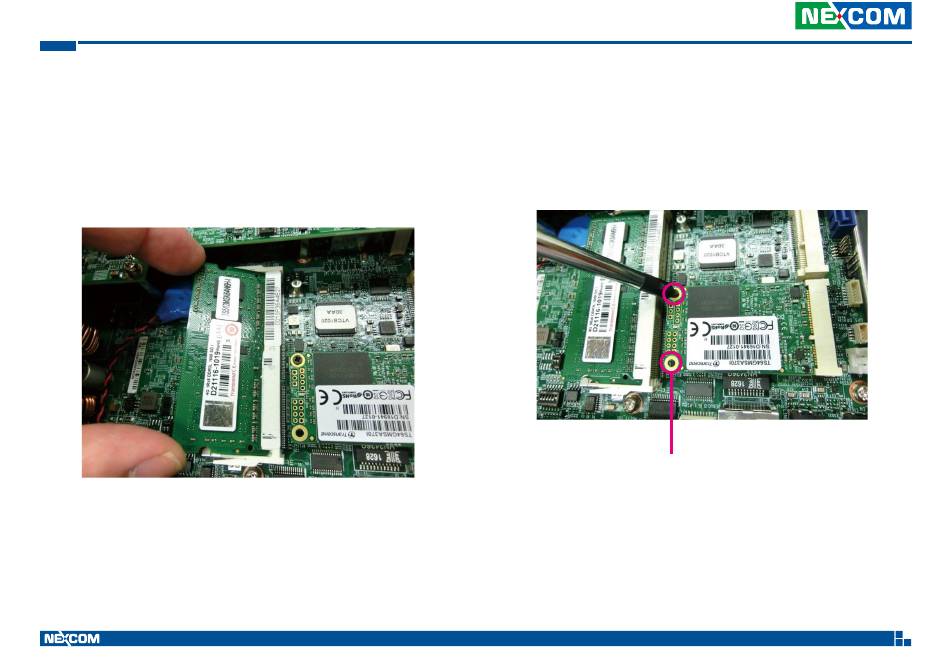

Installing a SO-DIMM

1. Push the ejector tabs which are at the ends of the socket outward. Then
insert the module into the socket at an approximately 30 degrees angle.
Apply firm even pressure to each end of the module until it slips down
into the socket. The contact fingers on the edge of the module will
almost completely disappear inside the socket.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.

Installing the Wi-Fi Module

1. Locate the Mini PCI Express slot (CN9). Insert the Wi-Fi module into the
Mini PCI Express slot at a 45 degrees angle until the gold-plated connector
on the edge of the module completely disappears inside the slot. Then
fasten screws into the mounting holes to secure the module.
Mounting
screws
42
VTC 1020 and nROK 1020 Series User Manual
