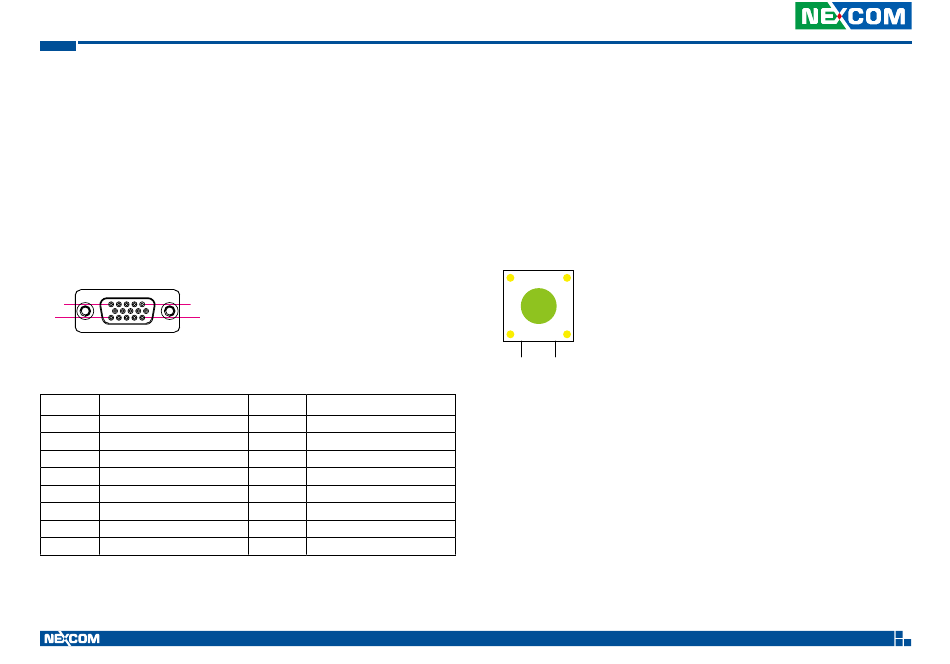

Chapter 2: External Connectors Pinout Description

C
2: e
haPter
xternal

VGA Connector

Connector number: 1
5
1
15
11
Pin
Definition
1
VGA_RED
3
VGA_BLUE
5
GND
7
GND
9
VGA_+5V
11
CH7517_SPD_R
13
VGA_HS
15
VGA_CLK
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
C
onneCtors
Pin
Definition
2
VGA_GREEN
4
CH7517_SPC_R
6
GND
8
GND
10
GND
12
VGA_DATA
14
VGA_VS
P
d
Inout
esCrIPtIon

Reset Switch

Connector Number: 2
1
2
Press this button to restart the system.
19
VTC 1020 and nROK 1020 Series User Manual
