Chapter 3: Jumpers and Connectors

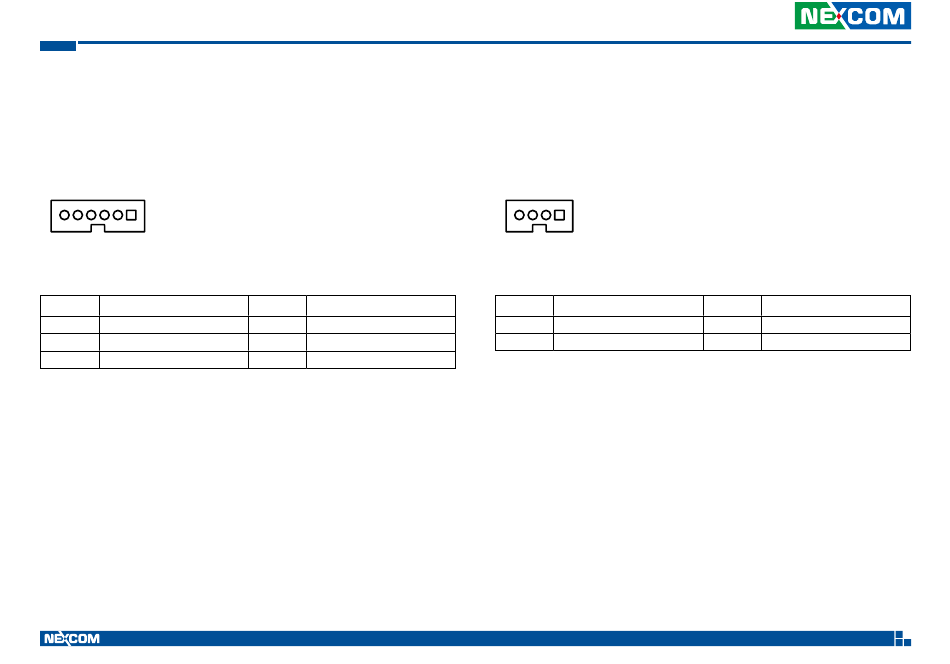

GPS Connector

Connector type: 1x6 6-pin header, 1.0mm pitch
Connector location: J8
6 1
Pin Definition
1 GPS_BAT
3 CTX
5 GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GPS_LED
4 CRX
6 VCC3_GPS

GPS DR Connector

Connector type: 1x4 4-pin header, 1.0mm pitch
Connector location: J7
4 1
Pin Definition
1 GND
3 ODOMETER
38
Pin Definition
2 1PPS
4 DIRECTION
