Appendix A: Software Demo Utility for I/O Ports of Function Control

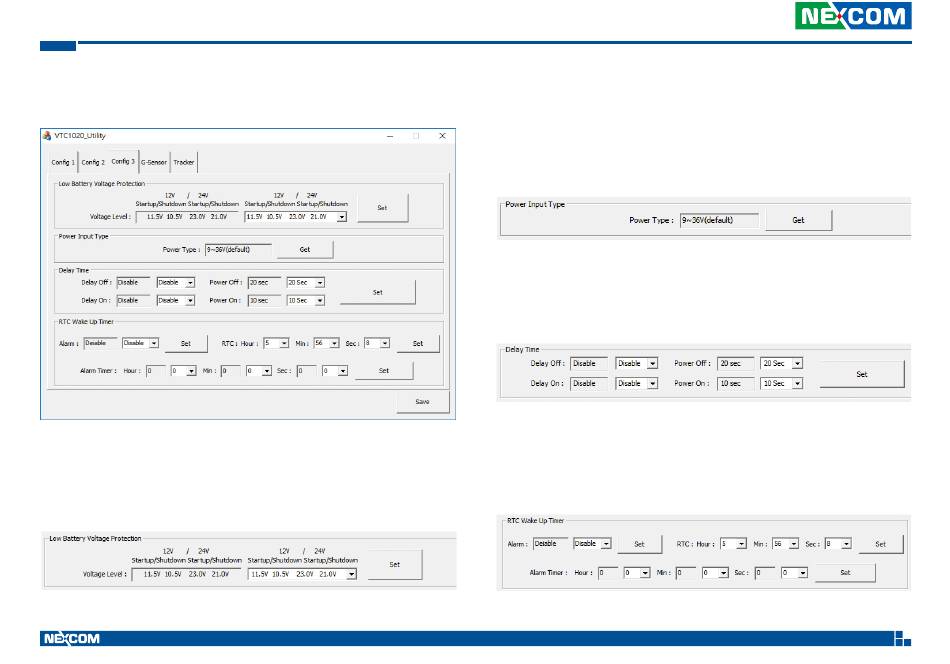

3. Config3
3.1 Low Battery Voltage Protection
Sets the Low Battery Voltage Protection Startup/Shutdown voltage level
during 12V/24V.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
3.2 Power Input Type
Shows the setting of input voltage in SW1 DIP switch.
If the setting is 12V: 12V is shown.
If the setting is 24V: 24V is shown.
If the setting is 9V~36V: 9V~36V is shown.
3.3 Delay Time
Enables or disables the delay time function. There are several selections of
delay time.
3.4 RTC Wake Up Timer
Enables or disables the RTC wake up function. The timer setting of RTC
and Alarm Timer can be configured.
49
VTC 1020 and nROK 1020 Series User Manual
