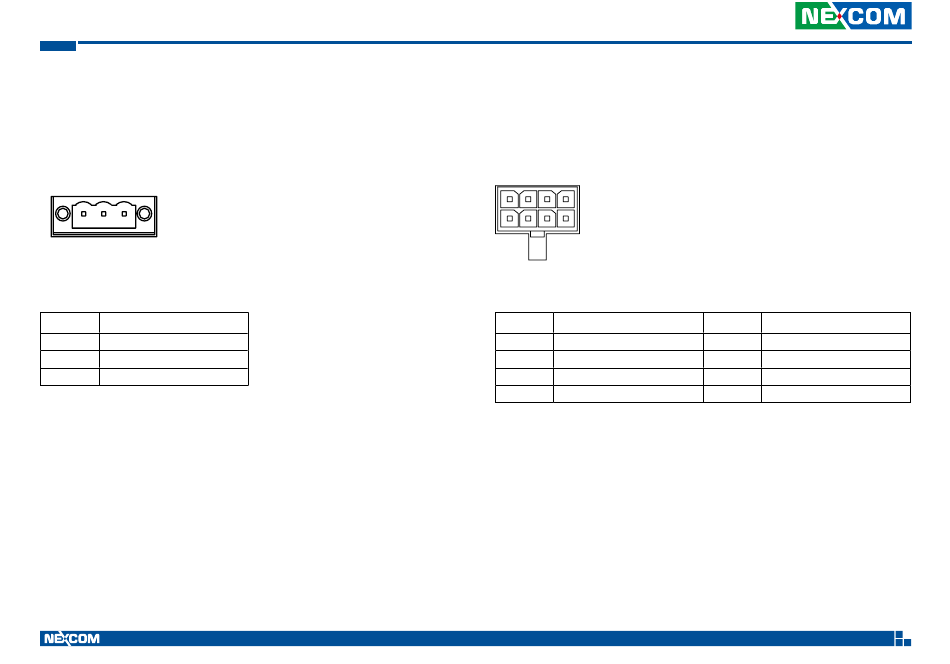

Chapter 2: External Connectors Pinout Description
DC Power Input
Connector number: 13
1
3
Pin
Definition
1
GND_IN
2
V_IN
3
IGNITION
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
12V DC Output
Connector number:14
1
4
5
8
Pin
Definition
1
NC
3
GND
5
BAT_DAT
7
Push button input
25
Pin
Definition
2
NC
4
GND
6
BAT_CLK
8
+V12S
VTC 1020 and nROK 1020 Series User Manual
