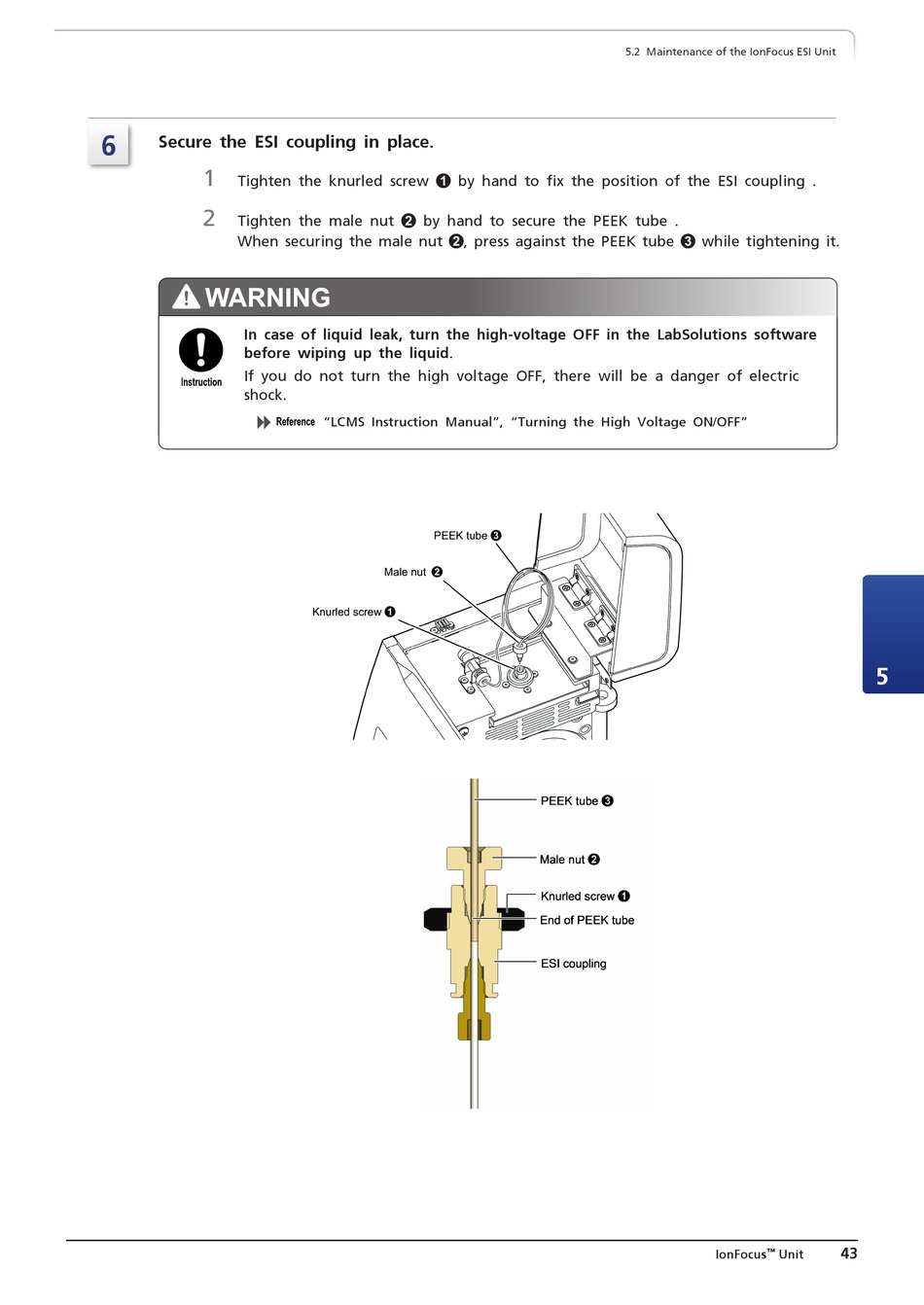

Secure the ESI coupling in place.
1
Tighten the knurled screw 1 by hand to fix the position of the ESI coupling .
2
Tighten the male nut 2 by hand to secure the PEEK tube .
When securing the male nut 2, press against the PEEK tube 3 while tightening it.
In case of liquid leak, turn the high-voltage OFF in the LabSolutions software
before wiping up the liquid.
If you do not turn the high voltage OFF, there will be a danger of electric
shock.
"LCMS Instruction Manual", "Turning the High Voltage ON/OFF"
5.2 Maintenance of the IonFocus ESI Unit
™
