Part Names and Functions

2.1

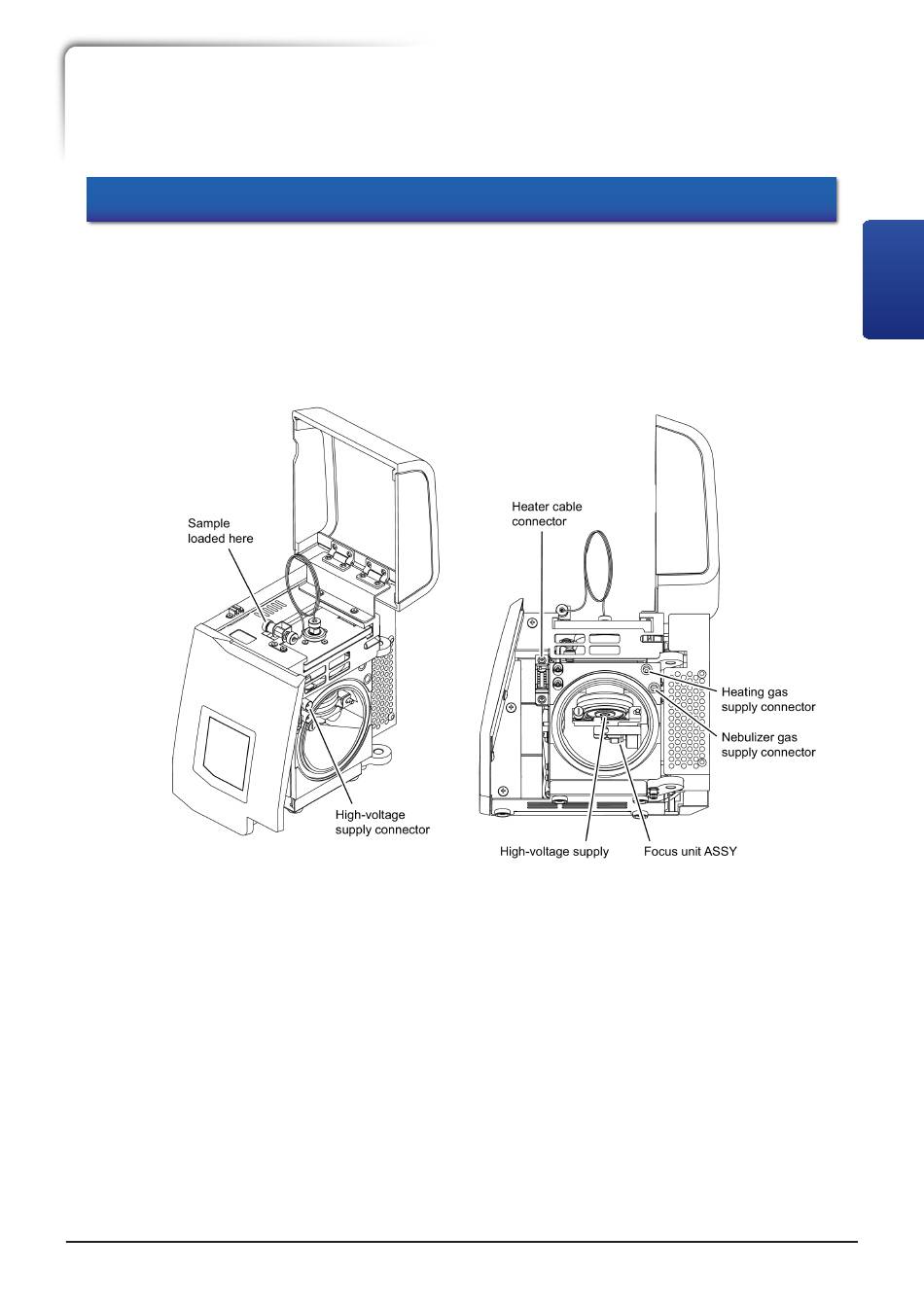

Names of Parts

IonFocus Unit ionizes the sample delivered from the liquid chromatograph at atmospheric
pressure.
With the ElectroSpray Ionization (ESI) method, the unit performs the ionization effective
2
for ionic/highly polar compounds in the sample. In addition, the focus electrodes enables
efficient introduction of ions into the mass spectrometer. Unnecessary neutral particles
are removed through the drain.
3
™
IonFocus Unit
