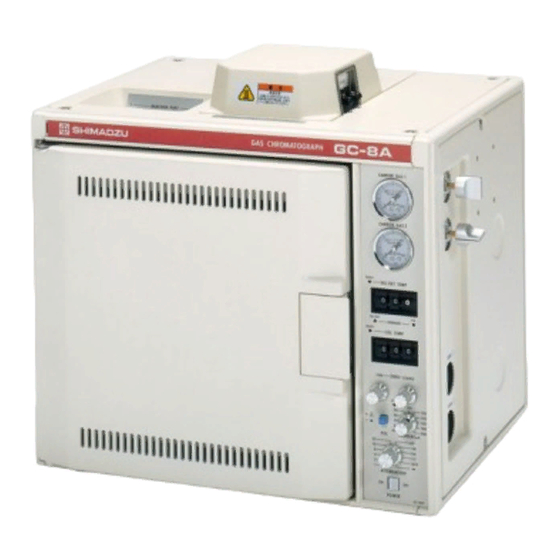

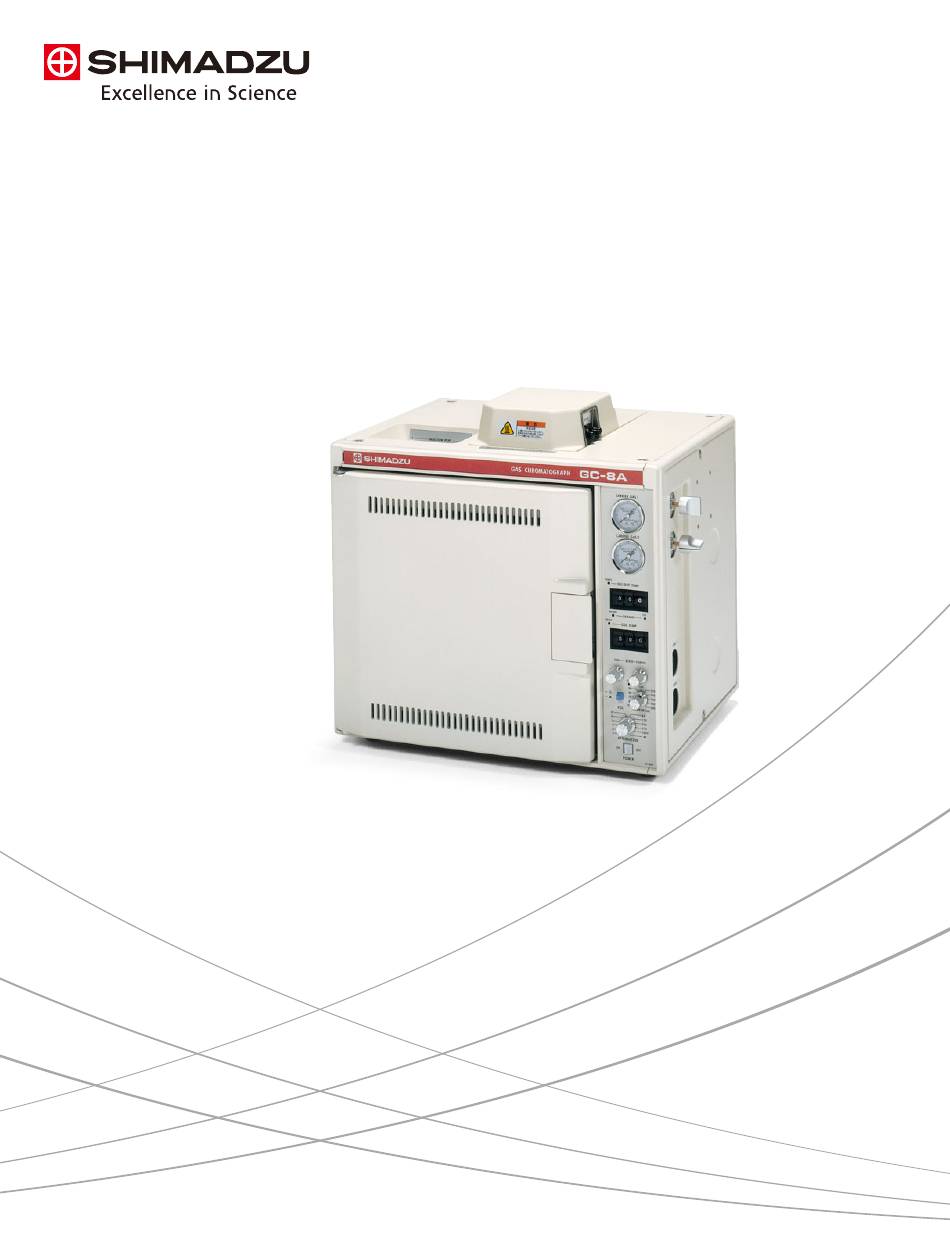

- Page 1 C184-E016B Gas Chromatograph GC-8A Series...
- Page 2 GC-8A Series Dedicated Single Detector Gas Chromatograph GC that meets increasing analytical requirements… GC that can analyze instantaneously… GC that is tough and useful… The GC-8A is a gas chromatograph that makes these dreams come true. GC-8AIT GC-8AIF Contents Simple design with emphasis on functionality...
- Page 3 Column Oven La r ge-c a pac it y, cu b ic o ve n Rap id he at ing a n d c ooling cha r ac te r i s t ic s Almost cubic in shape, the column oven opens entirely at the front, making changing columns simple and easy.
- Page 4 Sample Injection Ports Easy - t o- us e o n - c o l u m n s a m p le C a p i ll a r y c o l u m n a d a p t e r i nj e c ti on p o rt s Adding the optional CLH-800 capillary column holder allows simple mounting of the capillary column for both split and...
- Page 5 Detectors Thermal Conductivity Detector (GC-8AIT, GC-8APT) Highly stable and sensitive filaments The rhenium-tungsten filaments, each of which has a resistance of 100Ω, ensure the highest sensitivity and stability. Carrier gas Constant current system The bridge current is kept constant even when the detector temperature is changed.
- Page 6 Electron Capture Detector (GC-8AIE) Linear ECD with high sensitivity and wide dynamic range Electrode The constant-current ECD maintains a constant current flow in the detector. It offers excellent performance of a linear dynamic Ni source range of 10,000 and 0.2 pg (Υ-BHC) minimum limit of detection, and greatly restricts peak abnormalities such as negative peaks.
- Page 7 GC-8AIT Column Oven Flow Control Temperature range : Room temperature to 399°C Carrier gas : Two pressure regulators Temperature control : Proportional-integration type of zero cross Two column inlet pressure gauges switching system Thermal Conductivity Detector (TCD) Temperature control accuracy : ±0.1°C Temperature : When the temperatures of the column...
- Page 8 GC-8AIF Column Oven Flame Ionization Detector (FID) Temperature range : Room temperature to 399°C Detector : Dual cell with cylindrical collectors Temperature control: : Proportional-integration type of zero cross Maximum temperature : 400°C switching system Detection limit : 3 x 10 g/s for diphenyl Temperature control accuracy : ±0.1°C...
- Page 9 GC-8AIE Column Oven Flow Control Carrier gas One pressure regulator Temperature range : Room temperature to 399°C One column inlet pressure gauge Temperature control : Proportional-integration type of zero cross switching system Electron Capture Detector (ECD) Temperature control accuracy : ±0.1°C Temperature : When the temperatures of the column Detector...
- Page 10 GC-8APFp Column Oven Flow Control Temperature range : -100°C to 400°C (The optional cryogenic Carrier gas : One primary pressure regulator work attachment and cryogenic valve One primary column inlet pressure gauge unit are necessary for sub-ambient One differential flow controller temperature operation.) One column inlet pressure gauge Temperature control...
- Page 11 Accessories Hydrogen Generator Compact hydrogen generator by ion exchange membrane water electrolysis. High-purity hydrogen is formed through electrolysis of pure water. The compact design fits perfectly beside a GC-8A gas chromatograph. Requires deionized water with a specific resistance of 5 MΩcm min. Model OPGU-2200S 221-45131-91 (115V)
- Page 12 3.2mm ID, 5mm OD 2.6mm ID, 5mm OD 201-48705-05 221-22949-05 221-22950-05 201-48705-10 221-22949-10 221-22950-10 201-48705-15 221-22949-15 221-22950-15 201-48705-20 221-22949-20 221-22950-20 201-48705-25 221-22949-25 221-22950-25 201-48705-30 221-22949-30 221-22950-30 * Columns exceeding 3 m also available. Consult your Shimadzu representative for details. GC-8A Series Gas Chromatograph...
- Page 13 For Research Use Only. Not for use in diagnostic procedures. The contents of this publication are provided to you “as is” without warranty of any kind, and are subject to change without notice. Shimadzu does not assume any responsibility or liability for any damage, whether direct or indirect, relating to the use of this publication.
