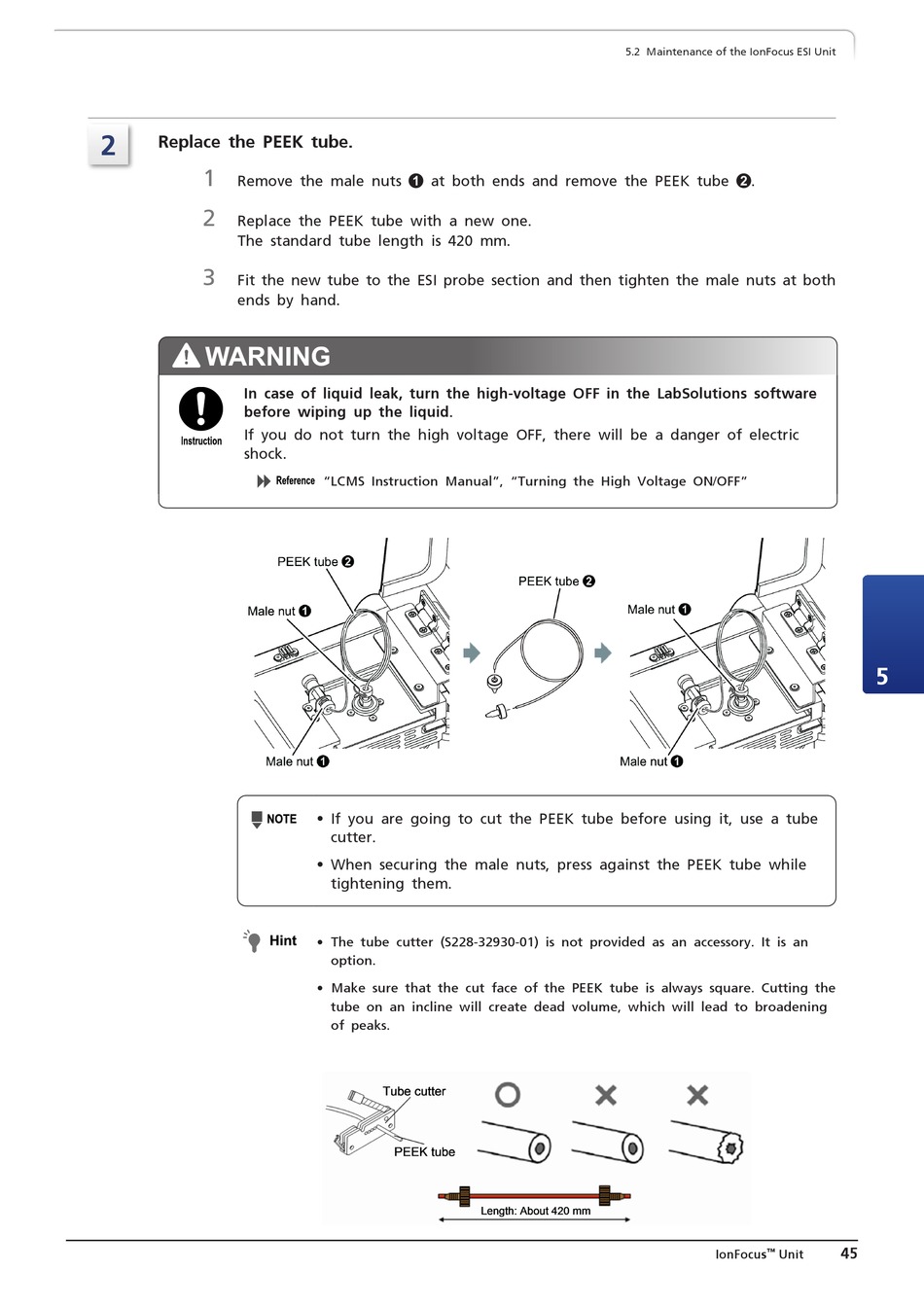

Replace the PEEK tube.
1
Remove the male nuts 1 at both ends and remove the PEEK tube 2.
2
Replace the PEEK tube with a new one.
The standard tube length is 420 mm.
3
Fit the new tube to the ESI probe section and then tighten the male nuts at both
ends by hand.
In case of liquid leak, turn the high-voltage OFF in the LabSolutions software
before wiping up the liquid.
If you do not turn the high voltage OFF, there will be a danger of electric
shock.
"LCMS Instruction Manual", "Turning the High Voltage ON/OFF"
• If you are going to cut the PEEK tube before using it, use a tube
cutter.
• When securing the male nuts, press against the PEEK tube while
tightening them.
• The tube cutter (S228-32930-01) is not provided as an accessory. It is an
option.
• Make sure that the cut face of the PEEK tube is always square. Cutting the
tube on an incline will create dead volume, which will lead to broadening
of peaks.
