3.1.6 Removing the Ionization Unit

Before removing the ionization unit, turn the high voltage OFF from the
LabSolutions software.
If you do not turn the high voltage OFF, there will be a danger of electric
shock.
Check that the temperature of the DL, heat block, and interface heater has
fallen to 50 °C or lower before proceeding with the work.
The inside of the ionization unit and the area around the DL and heat block
reach high temperatures.
Turn the heater OFF from the LabSolutions before starting this work.
If you proceed with the work while the temperature is still high, you may
sustain burns.
1
Turn the LC pump OFF and disconnect the tubing from the LC.
2
Turn the gas OFF from LabSolutions.
"LCMS Instruction Manual", "Gas ON/OFF Status and Flow Rate Monitor"
3

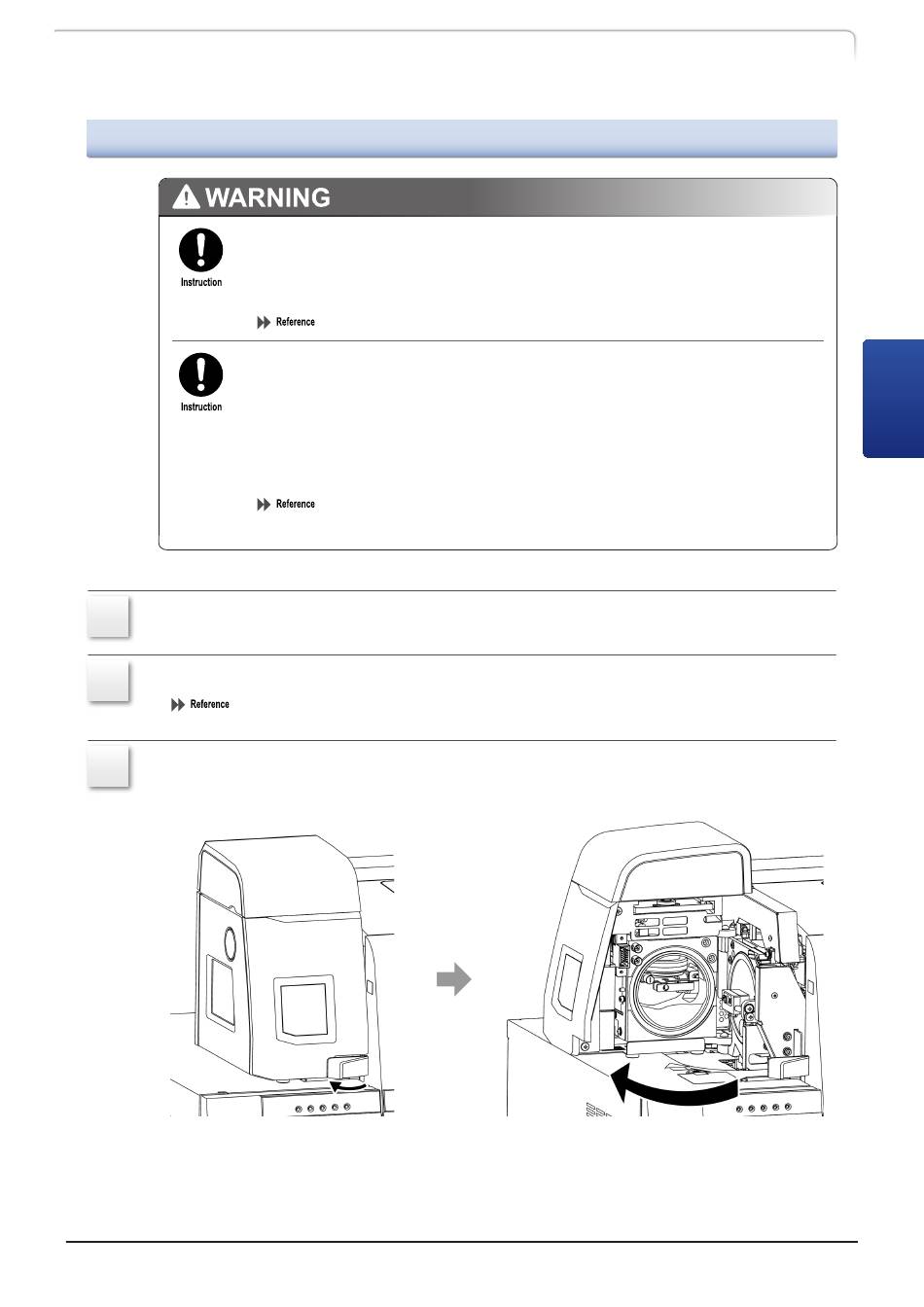

Unlock the ionization unit by sliding the knob to the left, and open the ionization
unit.
"LCMS Instruction Manual", "Turning the High Voltage ON/OFF"
"LCMS Instruction Manual", "Heater ON/OFF Status and Temperature
Monitor"
