7 Maintenance Parts

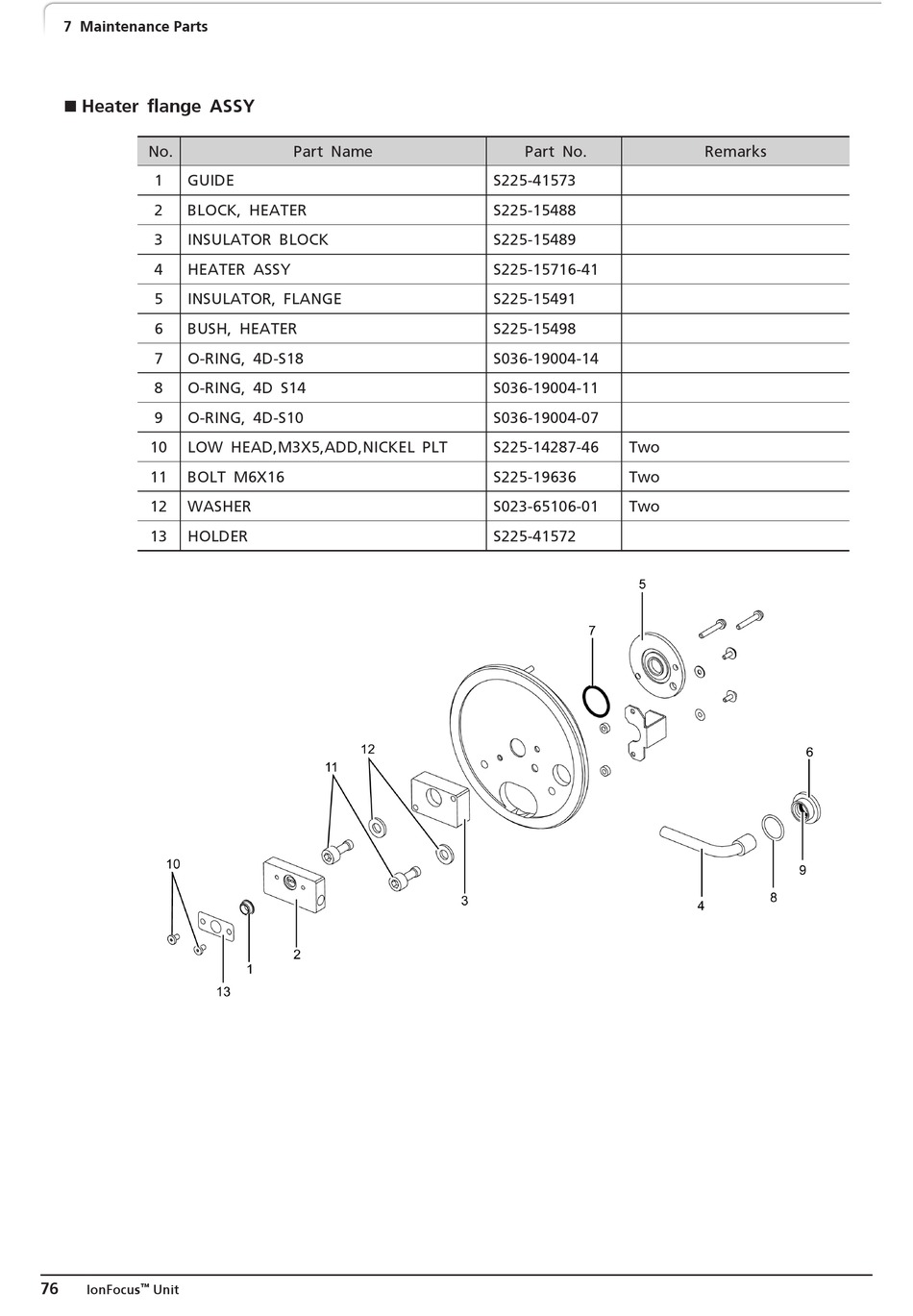

n Heater flange ASSY
No.
1
GUIDE
2
BLOCK, HEATER
3
INSULATOR BLOCK
4
HEATER ASSY
5
INSULATOR, FLANGE
6
BUSH, HEATER
7
O-RING, 4D-S18
8
O-RING, 4D S14
9
O-RING, 4D-S10
10
LOW HEAD,M3X5,ADD,NICKEL PLT
11
BOLT M6X16
12
WASHER
13
HOLDER
76
™
IonFocus
Unit
Part Name
Part No.
S225-41573
S225-15488
S225-15489
S225-15716-41
S225-15491
S225-15498
S036-19004-14
S036-19004-11
S036-19004-07
S225-14287-46
Two
S225-19636
Two
S023-65106-01
Two
S225-41572
Remarks
