C.R. Laurence INTELLI-TRACK Installation Instructions Manual page 9

INTELLI-TRACK™ SPS SYSTEM
Insert Pivots and Stops (Continued)

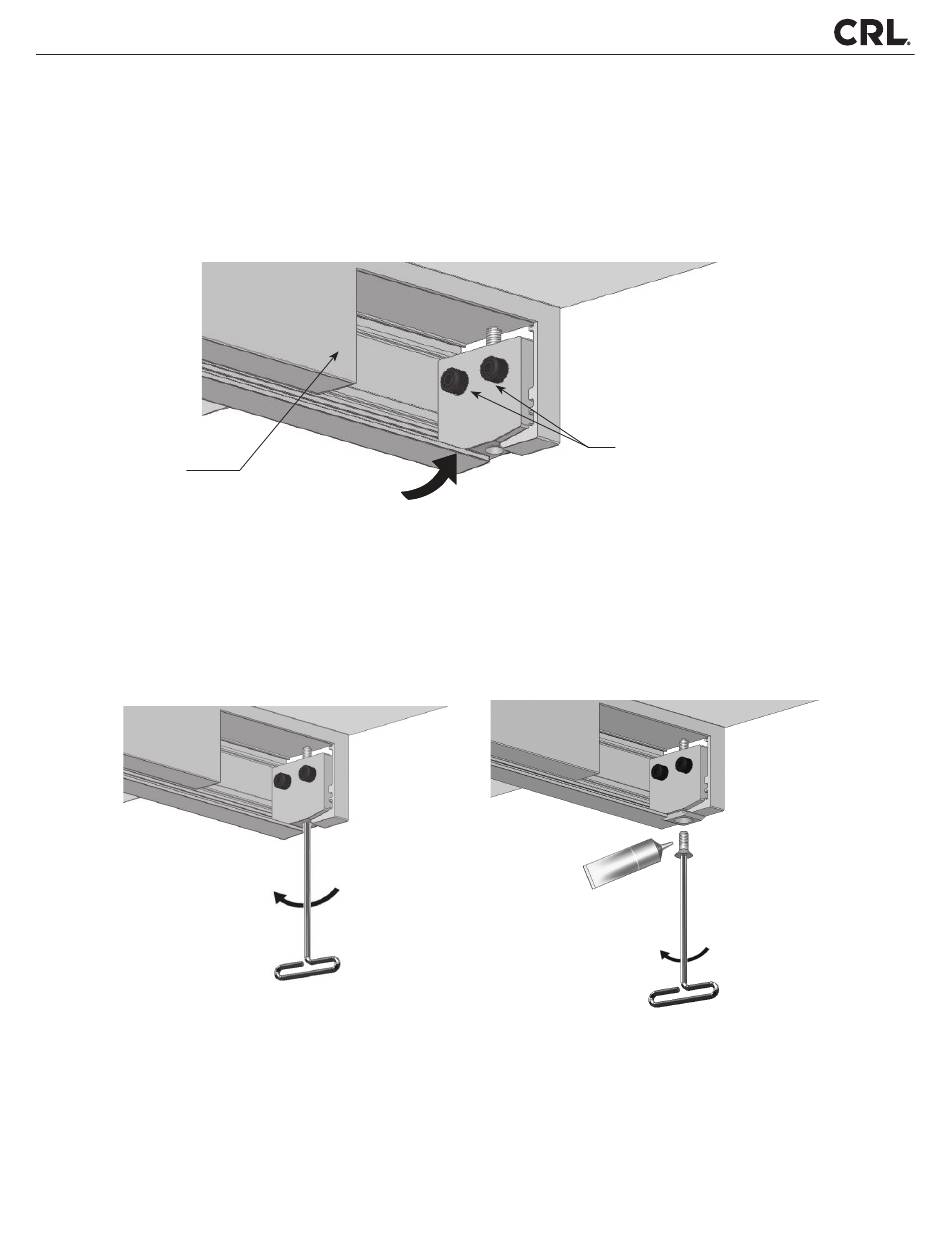

Position and Secure the Stop
1. Install a Stop at all locations where a Sliding Wall Panel can collide with building structure and Pivoting Doors.
Make certain that the Stop's rubber bumpers face toward the Sliding Wall Panels (Fig 5).
Sliding
Panel
2. Using a 3/16" Hex Drive Socket or T-Handle Hex Tool, turn the set screw clockwise until it sits tight against
the top of the Track (Fig 6).
3. Using a 7/32" Hex Drive Socket or T-Handle Hex Tool, re-attach the Clamping Plate. The supplied Loctite
Threadlocker must be applied to the threads, preventing loosening. Tighten this screw firmly as its clamping
action prevents the Stop from moving (Fig 7).
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Figure 5
Figure 6
Rubber Stops
• 1.800.421.6144
P. 9
Figure 7
®
