INTELLI-TRACK™ SPS SYSTEM
CONVERTIBLE DOOR
The Assembly Instructions, Component Placement Plan (CPP), and tools are located in a marked hardware box.
Always check your materials prior to attaching the Door Rails. Make sure that the glass is the correct size, and no visible
defects are present.
IMPORTANT NOTE: All glass should be fully tempered. Laminated glass should not be used with CRL Wedge-Lock™
Rails when fabricating Moving Wall Panels.
Wall Panel Rail
STEPS:

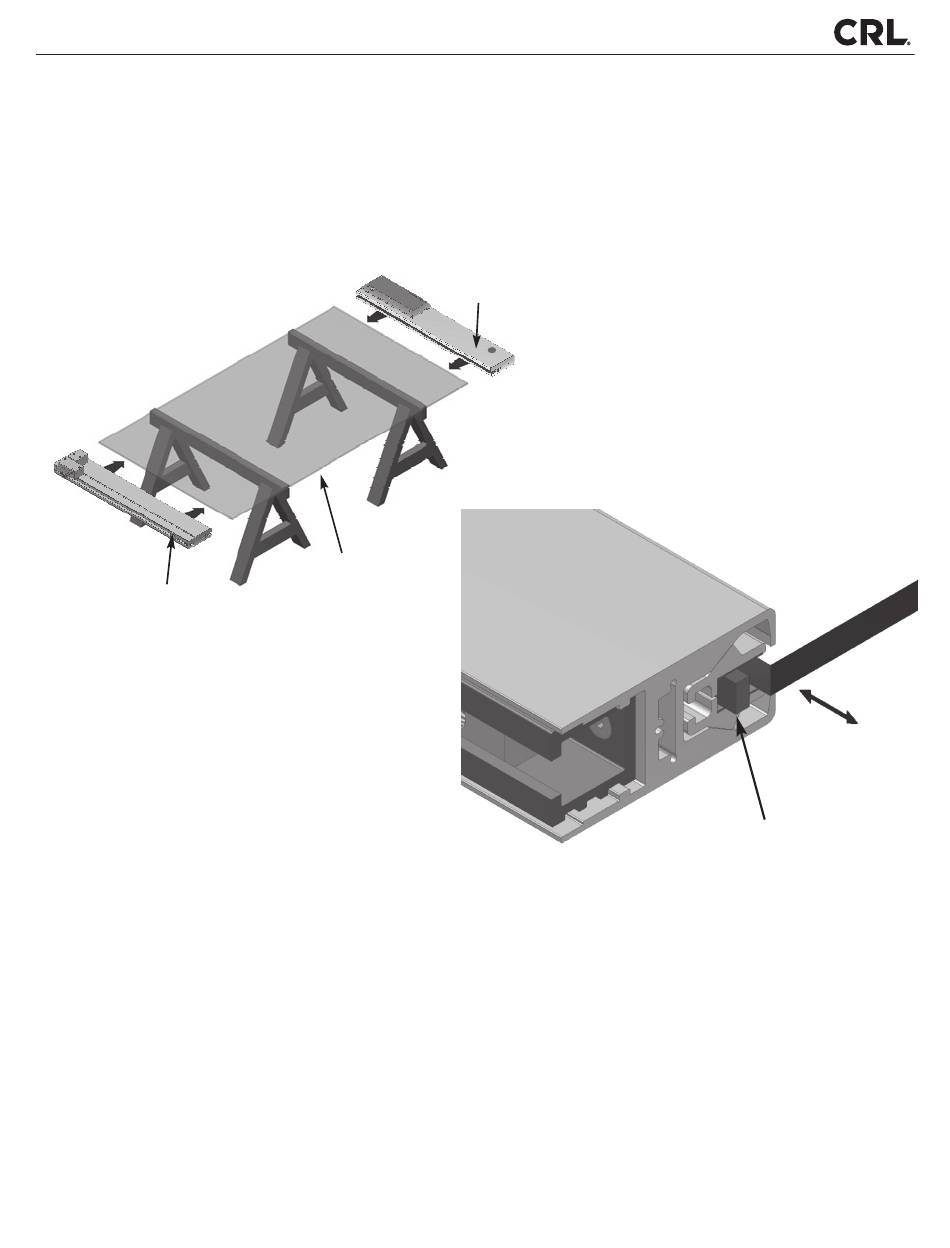

1) Lay your glass panel flat on two sawhorses or other appropriate support structure. At each end of the Wall Panel
Rails are Spacer Blocks (used to keep the Wedge-Lock
glass and align the vertical edge of the glass even with the End Cap. Top Wall Panel Rails do not yet have End Caps,
so align the edge of the glass to protrude from both ends of the Wall Panel Rail evenly.
2) The End Caps and Seal Kits for Top Wall Panel Rails are packaged separately, as they are installed in the final steps.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Wall Panel Rail
Glass
Clamps separated). Slip the Wall Panel Rail onto the
™
P. 40
Spacer Block
• 1.800.421.6144 • crlaurence.com
