INTELLI-TRACK™ SPS SYSTEM
Insert Pivots and Stops
NOTE: Sliding Wall Panels must not be allowed to hit the end of Pivoting Doors. To prevent this from happening a
Stop must be installed between the free-swinging end of Pivoting Doors and adjacent Sliding Wall Panels
(Fig. 4).
Look at the CPP to determine the order for inserting Pivots and Stops into the Track via the opening for the Roller
Access Splice. Using 7/32" Hex Bit Socket or T-Handle Hex Tool, remove the clamping plate that is exposed on the
bottom of Pivots and Stops. Make certain that the set screws and sliding Pivot Pin do not extend above the top surface,
as this will prevent collision with Track Mounting Bolts while sliding them along the Track to the installation location.
NOTE: Pivots do not have a special orientation during insertion into the Track, but Stops must be rotated such that
their rubber bumpers face toward the adjacent Sliding Wall Panel.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058

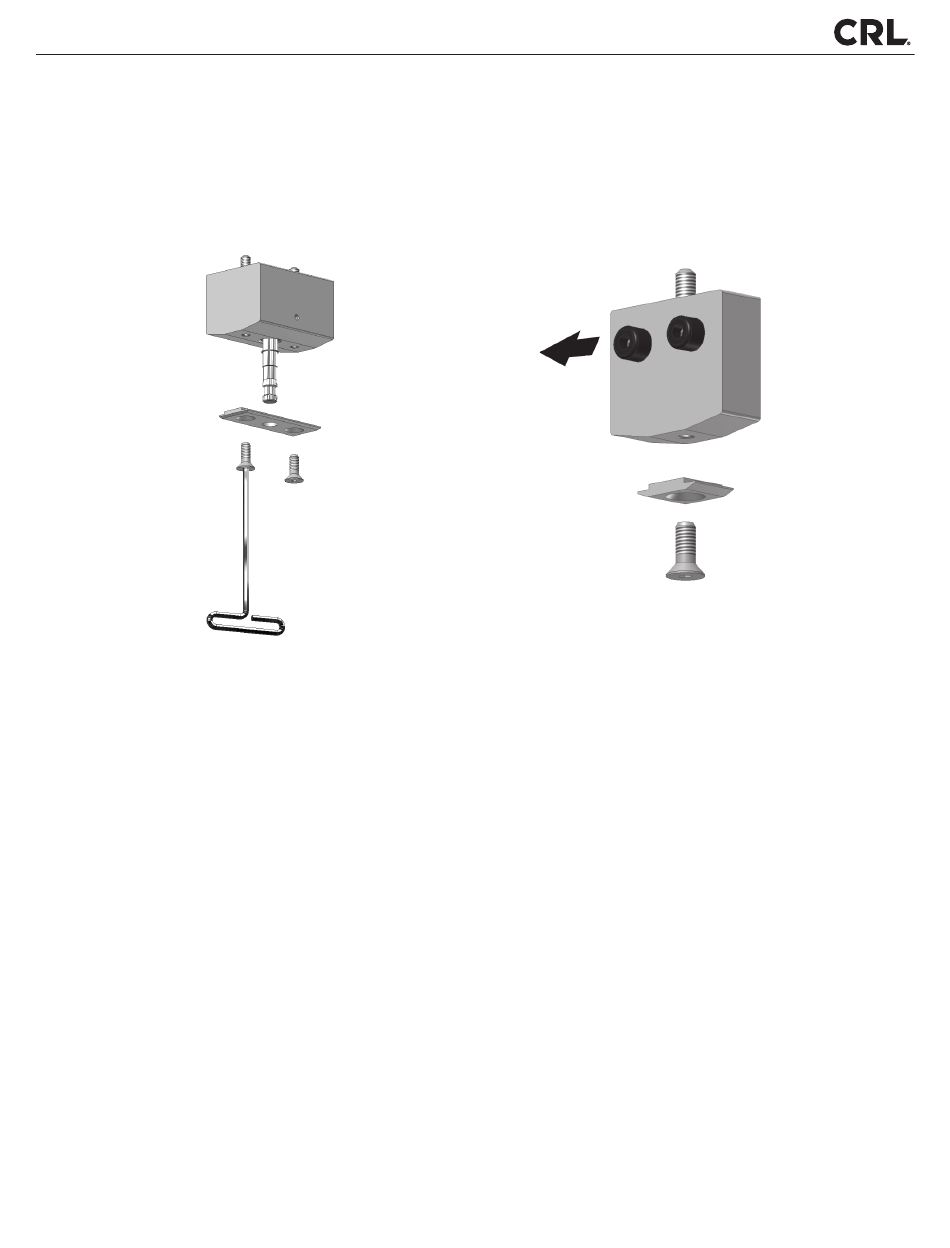

Fixed Pivot
Rubber Bumper Stops
Facing Sliding Wall Panel
Figure 4
P. 8
Door Stop
