INTELLI-TRACK™ SPS SYSTEM
Install the Top Seal System (Continued)

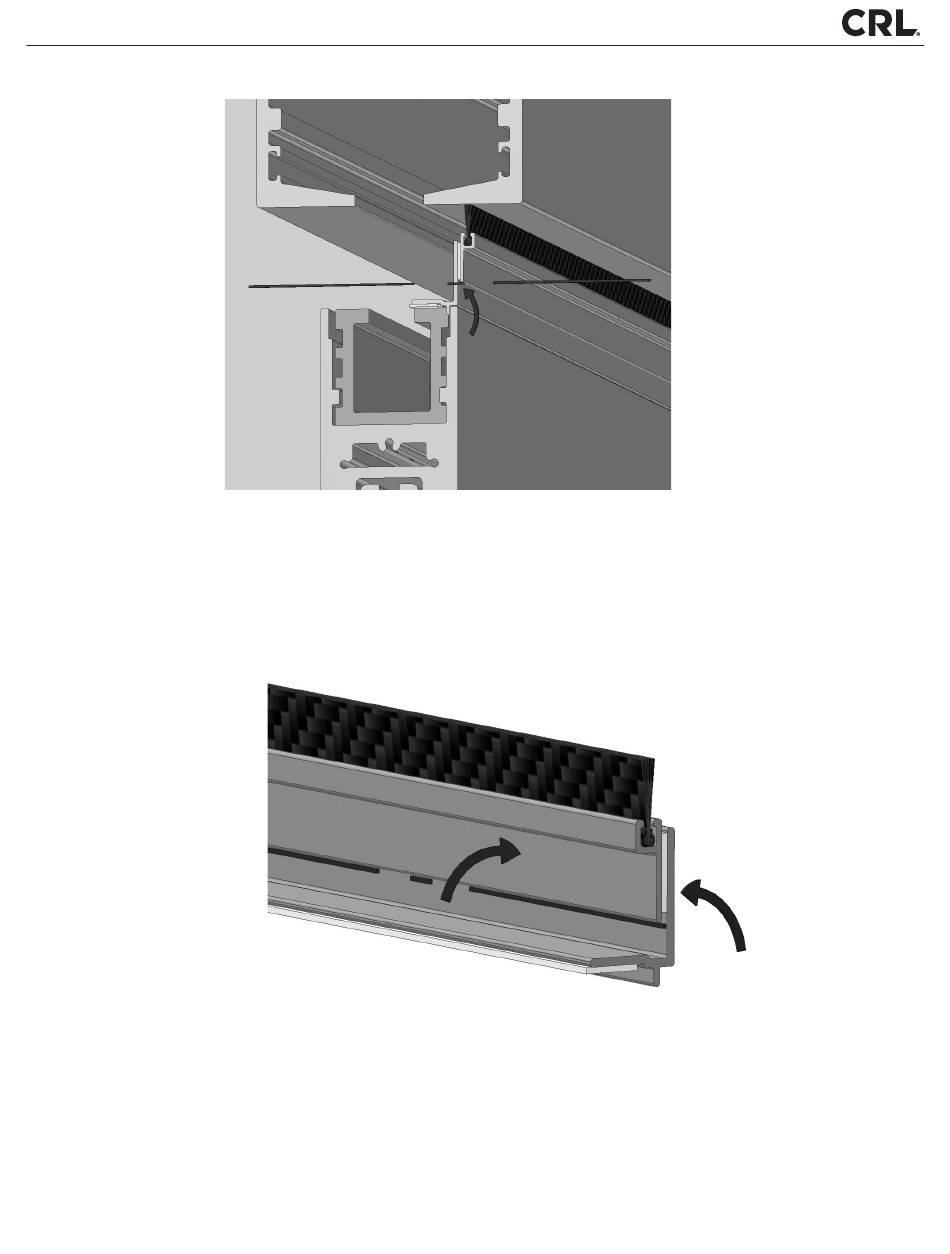

4. Dry-fit by positioning the Brush Seal on the exterior side of the Base Extrusion with its tape liner intact.
Move the Brush Seal up until it has an even line with the Track above, and then make a pencil mark on the
Base Extrusion at both ends for later alignment of the Brush Seal. Remove Brush Seal then Base Extrusion
from the Wall Panel Rail.
5. The Brush Seal is tape applied to the interior of the Base Extrusion (the opposite side that was marked with
the pencil in the previous step). Remove the tape liner from the Brush Seal, align the bottom edge with the
pencil marks made on the opposite side, and press the two pieces together. Apply moderate pressure for the
full length of the extrusions to set the tape.
