INTELLI-TRACK™ SPS SYSTEM

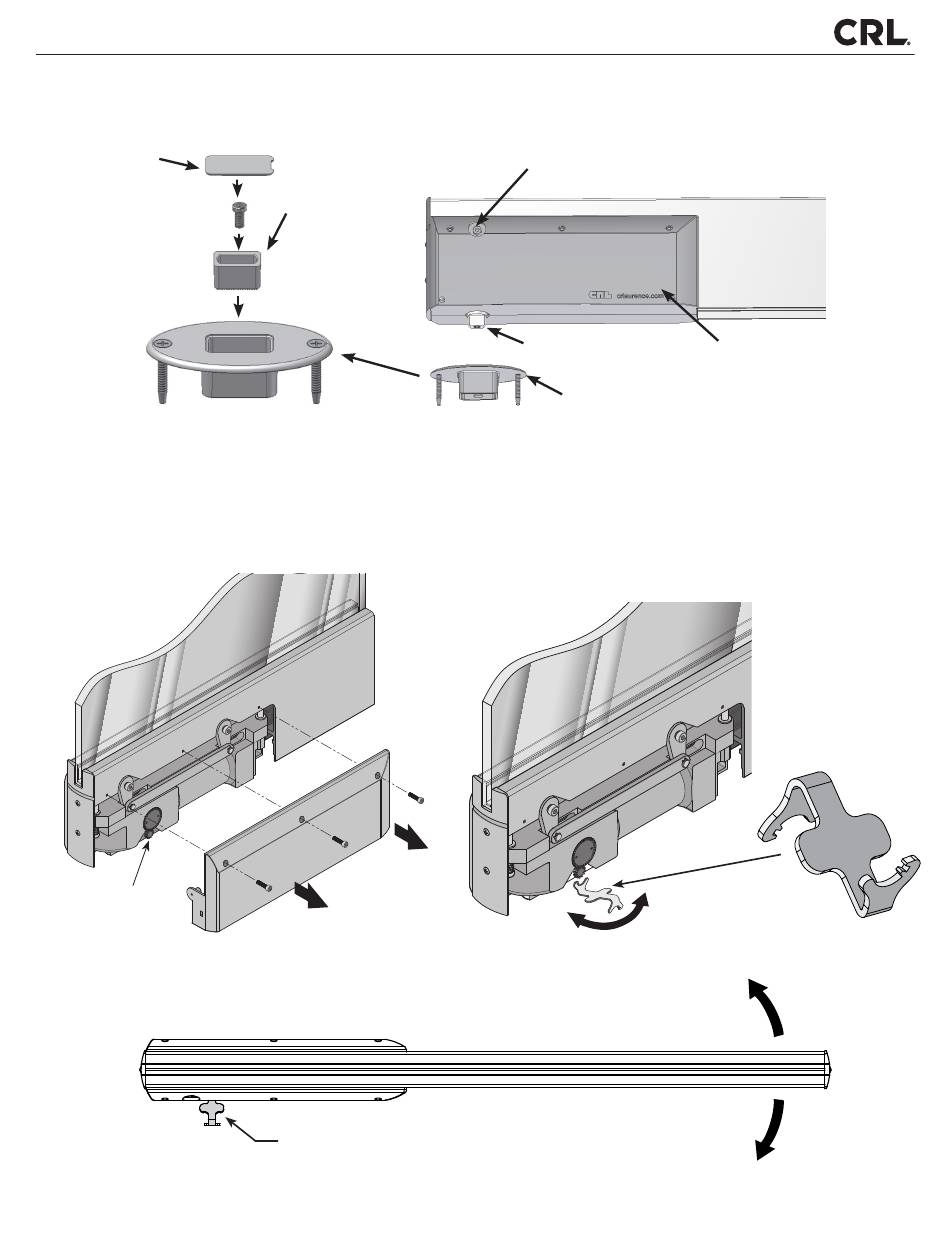

Bottom Pivot Assembly
Dust Cover
Centering the Door
To center the SPS Convertible Door use the Cat. No. HWD060 Centering Tool. Remove either side Cover Panel and
place the Centering Tool over the Lower Centering Gear. Try 1/4 turn and check door by opening all of the way and
letting it self close. Adjust until door centers in opening. Replace the cover when done.
Lower Centering
Gear
NOTE: Remove cover, before adjusting..
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Spindle Drop Bolt
Adjustable
Receiver Cup
Turn Lower Centering Gear with the
Centering Tool to set the Door in Center Position.
P. 31
Spindle
Cover Panel
Floor Receiver
Body
Cat. No. HWD060
Centering Tool
• 1.800.421.6144
• crlaurence.com
