INTELLI-TRACK™ SPS SYSTEM
INSTALLATION PROCEDURES (Continued)

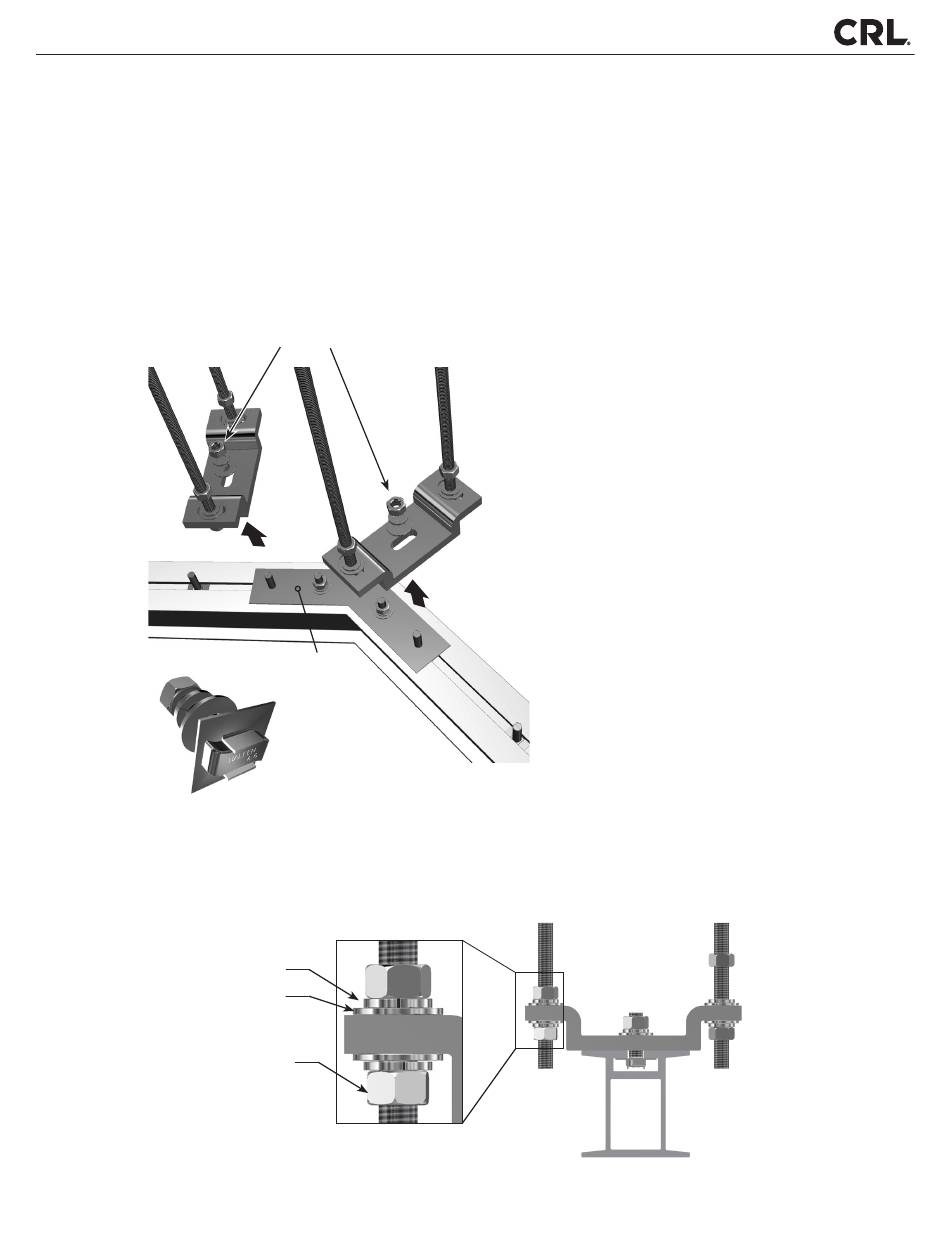

STEP 8 Install the Intermediate Rail.
(a) Start by laying out the Intermediate Support Rail components on the floor in alignment with the track outline marks
made earlier. The slotted side should be up.
(b) Slide the Halfen T-Bolt units into the rail slot from the ends. One for each Dual Rod Bracket and four for each
Corner Support Bracket. Note: Once the rails are assembled it is not possible to add or remove the T-bolts.
Halfen T-Bolt
with Washers
and Hex Nut
STEP 9 Level the Intermediate Rail. It is usually more important to level the Intermediate Rail to the floor than to the horizon.
If the Floor below has a slight slope, the rail should follow because the SPS Panels require a 1/4" to 5/16" bottom
clearance. Adjust level and height using the DRB Leveling Nuts.
Split-Lock Washer
Flat Washers
DRB Leveling Nut
NOTE: Use this hardware
combination for all
connections
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
DRB Center Nuts
Lift Up
Lift Up
Corner
Support
Bracket
(c) Corner Support Brackets are used for
45˚ connections above non-welded track
joints. They are not required in the
parking areas or straight runs.
(d) Assemble two 45˚ Intermediate rail
sections if using corner support brackets
and lift up to the hanging Dual Rod
Brackets for attachment to the
Halfen T-Bolts using the 1/2" Nut and
Washer System.
(e) Complete assembly of the entire
Intermediate Rail system and attach to
the remaining Dual Rod Brackets with
the 1/2" Hex Nut and Washers.
(f) After all of the Intermediate Railing is
hung, permanently torque down the
DRB Center Nuts.
