INTELLI-TRACK™ SPS SYSTEM
Convertible Door (Continued)

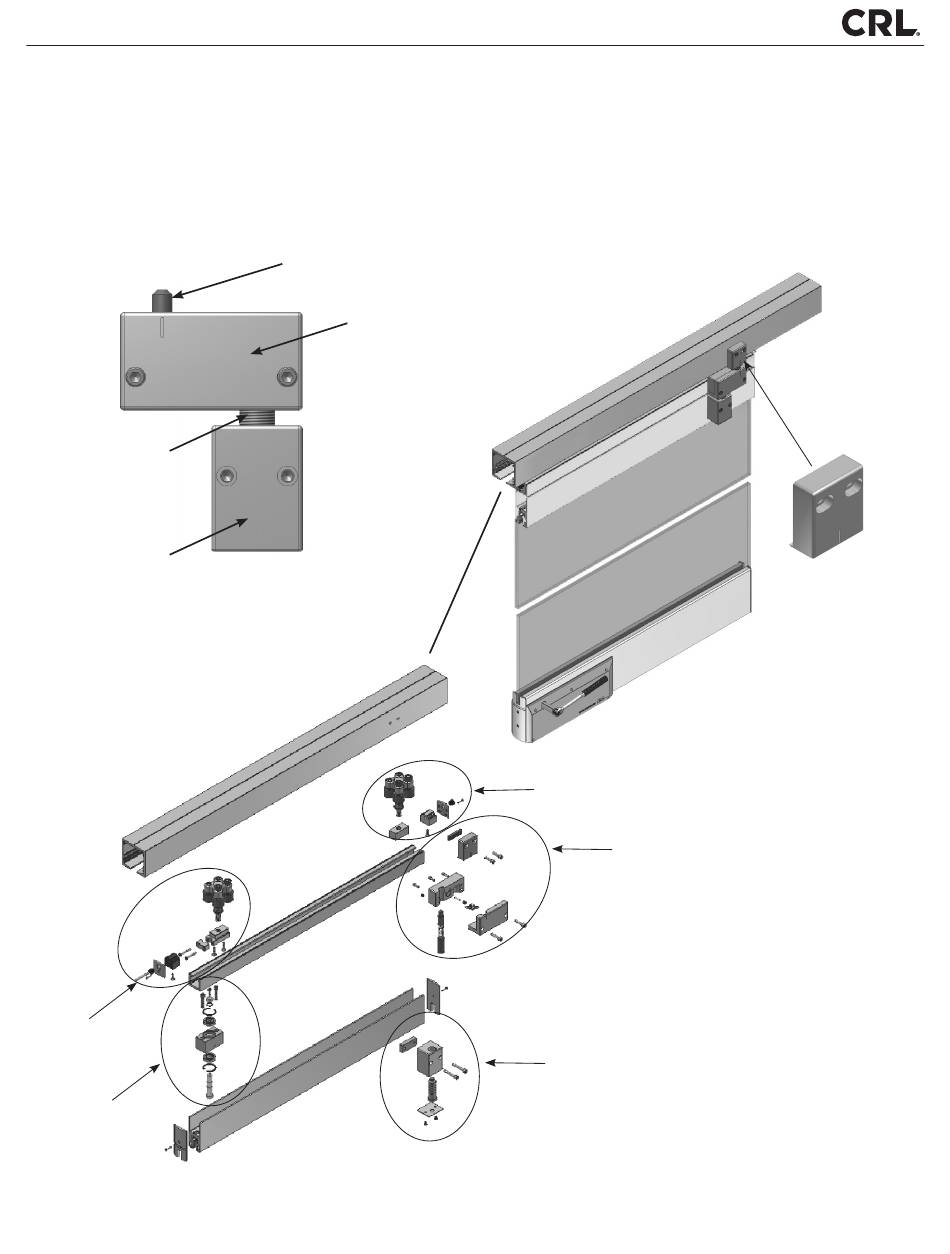

10) Engage the Spindle into the Floor Receiver and attach the Lock Pin Receiver Block to the track using 5/16 - 18
stainless hex bolts drilled and tapped. Make sure that the indicator marks line up. Before tightening the bolts completely,
drop the Locking Bolt using the long reach Allen Tool untill it disengages from the Converter Block. Doing so will raise
the Track Pin and allow a more precise adjustment to the Receiver Block. Continue to tighten the 5/16" bolts and check
for track pin bind.
Lock Bolt
Bolt Block
Upper Coordinator Assembly
Left Roller
Assembly
Pivot Hinge
Assembly
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Track Pin
Converter
P. 42
Right Roller
Assembly
Upper
Coordinator
Assembly
Lower
Coordinator
Assembly
• 1.800.421.6144
Receiver Block
