C.R. Laurence INTELLI-TRACK Installation Instructions Manual page 6

INTELLI-TRACK™ SPS SYSTEM
1. Locate and install the Roller Access Splice as shown on the CPP. If your SPS System was ordered with stock length
Track(s), The Roller Access Splice is pre-drilled and ready to receive two fasteners. Align the Roller Access Splice
with the end of the Parking Area Assembly and fasten into place (Fig 5). Use 3/8" Hex Head type fasteners made from
one of the following materials: A307 Galvanized or A316 Stainless Steel.
NOTE: ALWAYS USE LOCK WASHERS.
2. Measure back to the Roller Access Splice to determine your cut lengths of the remaining Track,
allowing for slight clearance for later removal of the Roller Access Splice.
3. Install four Drive-In Alignment Strips at all Track joints, except at the Roller Access Splice. Each Drive-In Alignment
Strip installs barbed-end first, align with the receiving socket in the Track extrusion, and then drive-in with a smooth
faced hammer. One half of each Alignment Strip's length should remain exposed, ready to engage the next Track
section (Fig. 7).
4. Install the remaining Track section(s) working toward the Roller Access Splice and carefully following the CPP.
Use 3.8" Hex Head type fasteners made from one of the following materials: A307 Galvanized or A316 Stainless Steel.
NOTE: ALWAYS USE LOCK WASHERS.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058

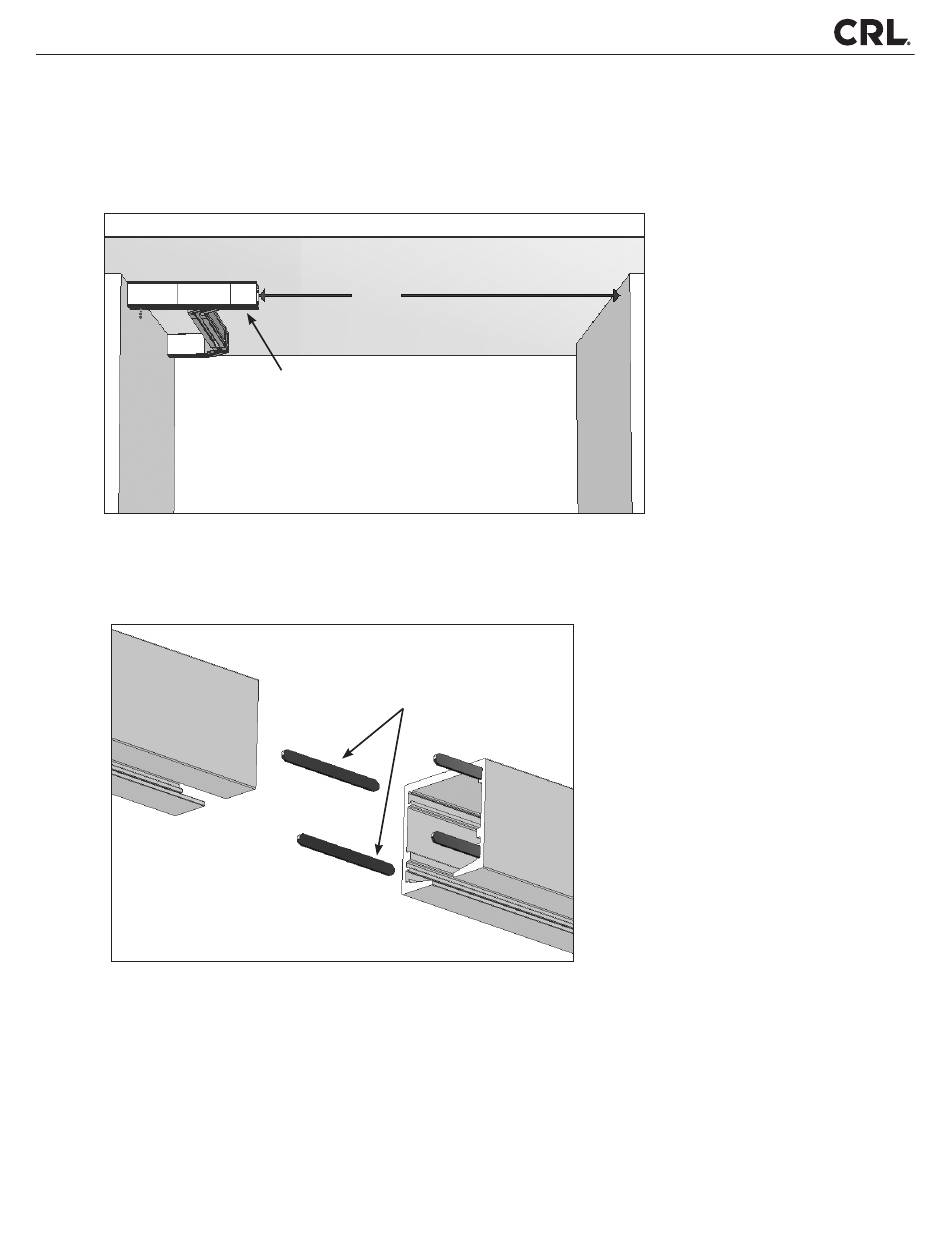

Roller Access Splice
Drive-In Alignment Strips
Figure 7
Secure Track Sections with
Drive-In Alignment Strips.
Do not use on either end of
the Roller Access Splice.
• 1.800.421.6144
P. 6
Figure 6
Measure from the
Roller Access Splice
when using stock lengths.
• crlaurence.com
