INTELLI-TRACK™ SPS SYSTEM
Assemble Wall Panels

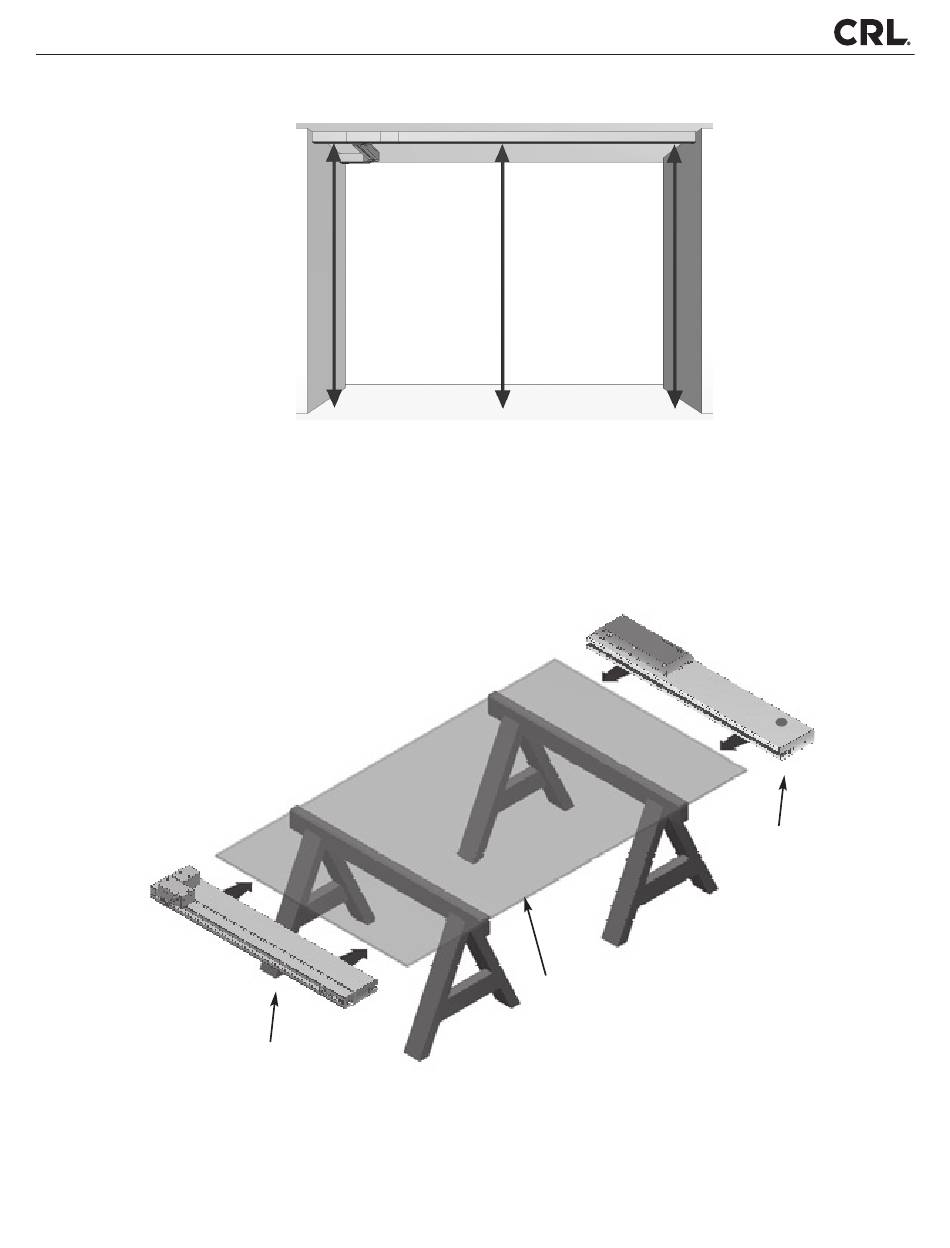

Measure from the bottom of the Track to the floor, deduct for the top and bottom rails, as well as the nominal 1/4" (6.4)
clearance above the floor. The determination of Panel width requires many considerations, but in normal conditions the glass
widths match the Wall Panel Rails and Door Rails. All vertical gaps between walls, wall Panel rails, and door rails
are calculated at 1/8" unless specific instructions were given at time of ordering. Refer to CPP to verify.
NOTE: All glass should be fully tempered. Laminated glass should not be used with CRL Wedge-Lock Rails when fabricating
Moving Wall Panels. However, laminated glass can be used for fully framed wall Panels (supplied by others).
Wall Panel Rail
1. Lay your glass panel flat on two sawhorses or other appropriate support structure. At each end of the Wall Panel
Rails are Spacer Blocks (used to keep the Wedge-Lock
glass and align the vertical edge of the glass even with the End Cap. Two Wall Panel Rails do not yet have End Caps,
so align the edge of the glass to protrude from both ends of the Wall Panel Rail evenly.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Glass
Clamps separated). Slip the Wall Panel Rail onto the
™
• 1.800.421.6144
P. 13
Wall Panel Rail
• crlaurence.com
