C.R. Laurence INTELLI-TRACK Installation Instructions Manual page 10

INTELLI-TRACK™ SPS SYSTEM
Insert Pivots and Stops (Continued)

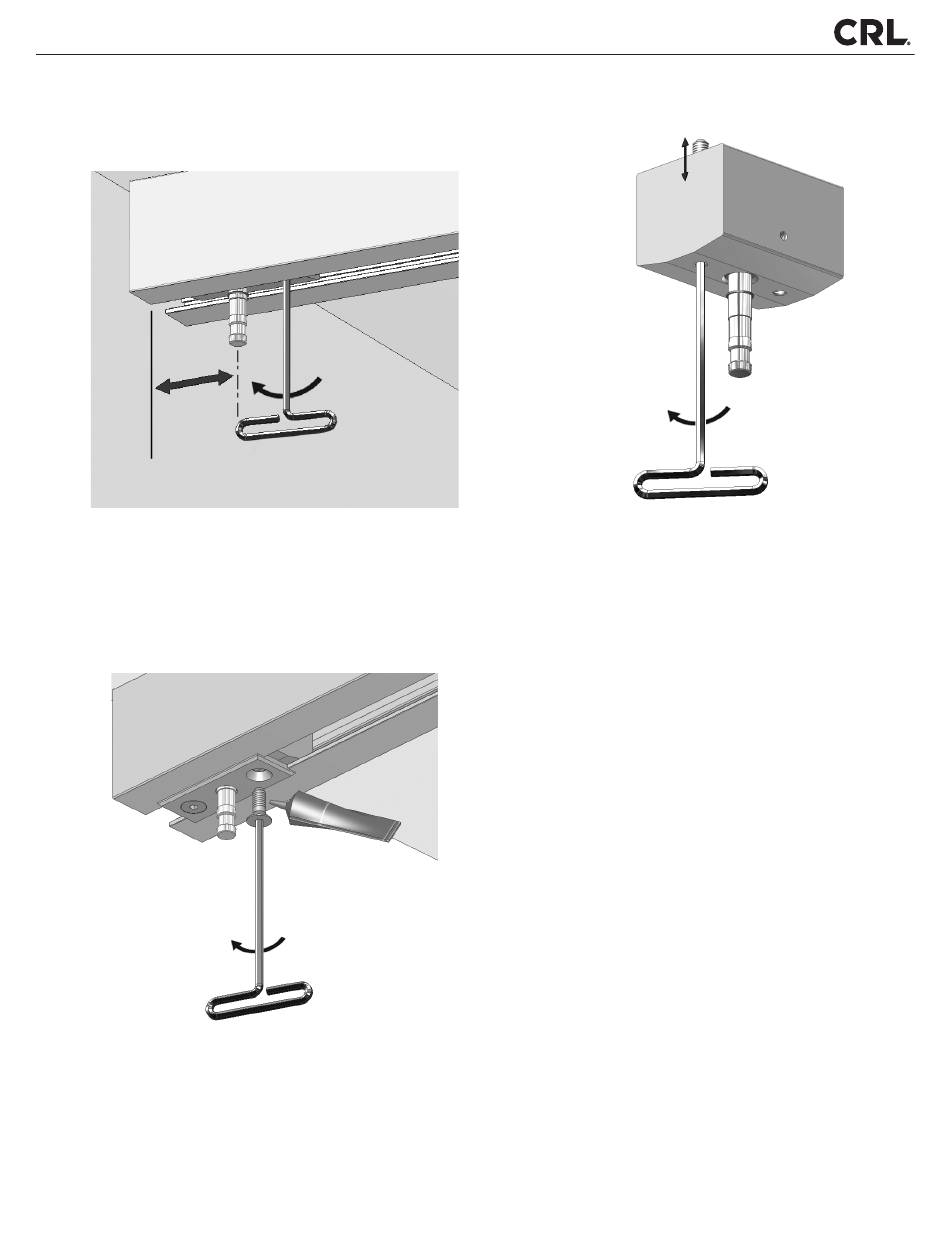

Position and Secure the Top Door Pivot
2-3/4"
(69.8)
1. The centerline of the pivot pin should be positioned
at 2-3/4" (69.8) from the finished wall.
3. Using a 7/32" Hex Socket or T-Handle Hex Tool,
re-attach the clamping plate. Apply the supplied
Loctite Threadlocker to the threads. Tighten the
®
screw firmly.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
2. Using a 3/16" Hex Drive Socket or T-Handle Hex Tool
turn the two set screws clockwise until they sit tight
against the top of the Track.
• 1.800.421.6144
P. 10
• crlaurence.com
