INTELLI-TRACK™ SPS SYSTEM
Assemble Wall Panels (Continued)

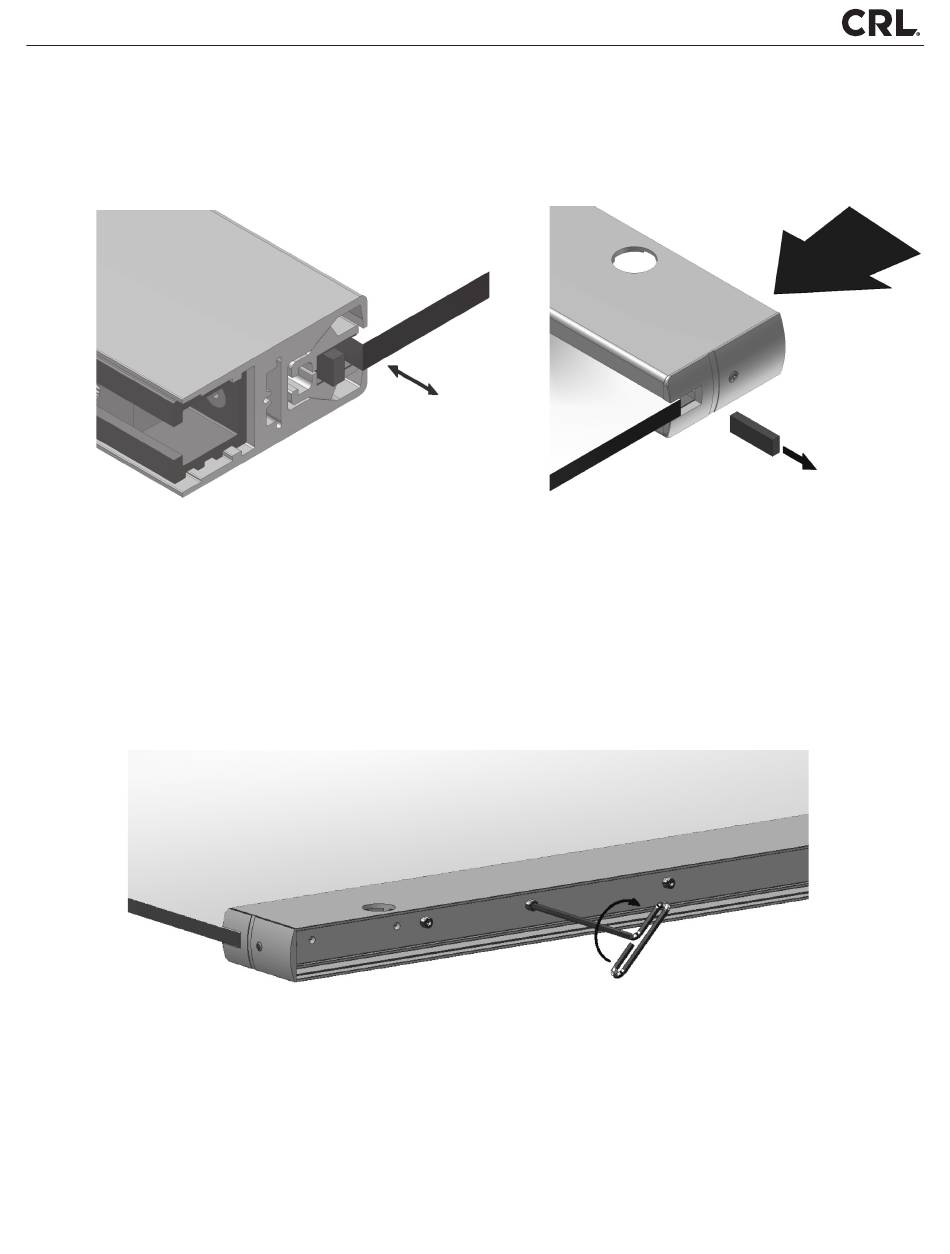

2. After this alignment is achieved, pull the Spacer Blocks from each end of the Wall Panel Rail, then push the Wall
Panel Rail toward the glass until the glass bottoms out in the Wedge-Lock
3. Tighten a Socket Head Cap Screw in the middle of the channel with the 3/16" T-Handle Hex Tool, supplied.
Top Wall Panel Rail Socket Head Cap Screws are accessed through holes in a cover plate. Tighten all of the
Socket Head Cap Screws working left to right using the 3/16" T-Handle Hex Tool.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Channels. Check again for alignment.
™
• 1.800.421.6144
P. 14
• crlaurence.com
