INTELLI-TRACK™ SPS SYSTEM

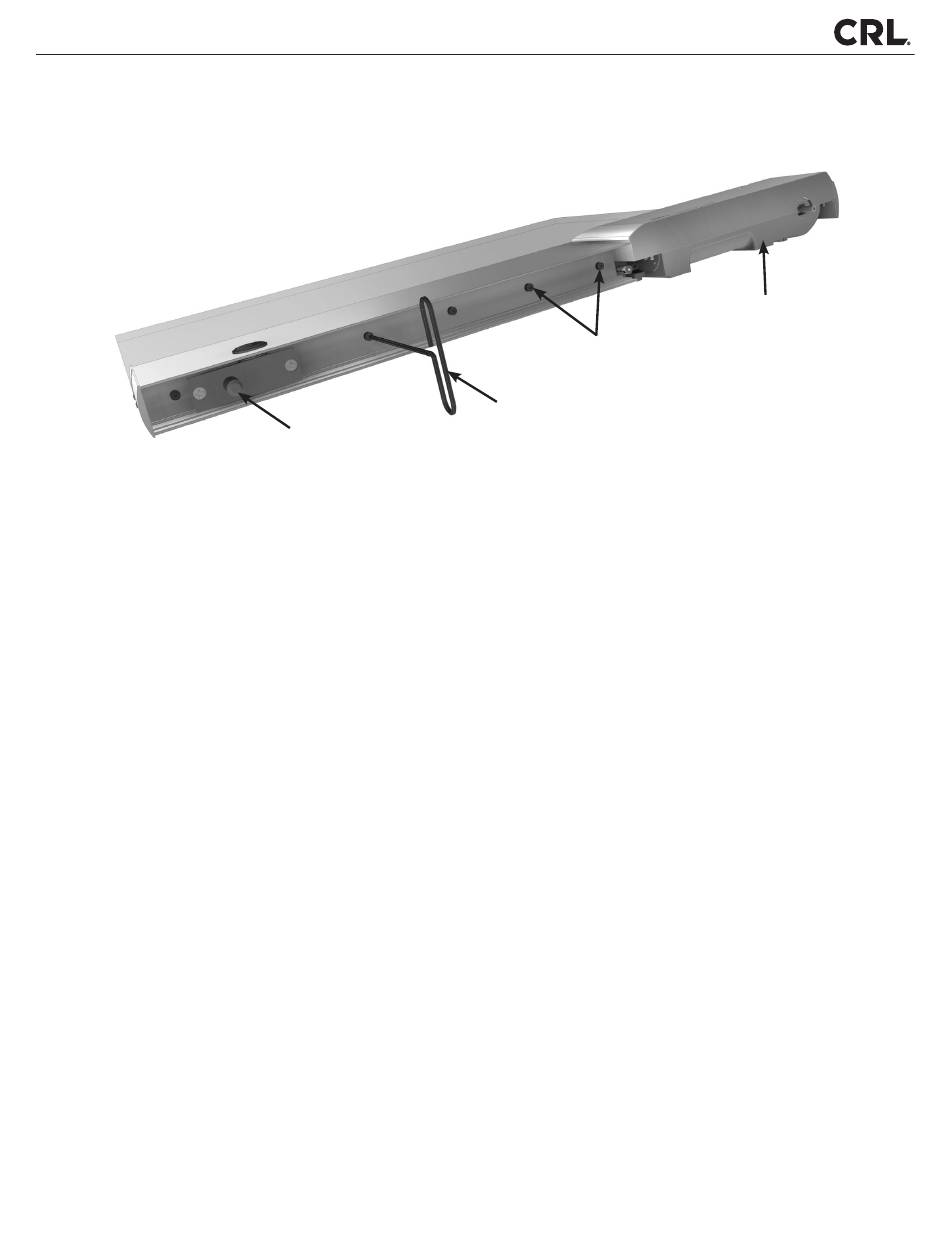

View of Bottom Rail
3. Starting with a Clamp Screw toward the center of the Bottom Rail, tighten with the 3/16" Hex Bit Drive Socket or
T-Handle Hex Tool. Snug each fastener but do not torque. Alternate back-and-forth working your way out to the
ends. When all fasteners are snug, repeat the same pattern until the Allen Wrench turns 1/4 turn past tight. This
will assure a torque on each screw about 7-8 foot pounds. Usually a third sequence of tightening is not necessary.
However, it's easy to make a quick check by simply inserting the T-Handle Allen Wrench into a screw that was
already tightened a second time.
4. Repeat the process for the Top Rail. The fasteners are accessed through holes in the cover plate. It is
especially important to properly torque each fastener as in Step 3. The Top Rail Clamp is responsible for
supporting most of the door's weight. Failure to properly install the door by not tightening the Socket Head Cap
screws to their specified torque may result in personal injury.
5. Attach the Roller Assemblies to the Top Door Rail in the same method as outlined in the Stacking Panel
Installation Manual. Spacing will be determined by the width of the parking section Track.
6. Insert the Convertible Door into the Intelli-Track
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Floor Lock Pin
access section and slide into position.
™
Clamp Screws
3/16" T-Handle Hex Bit Tool
