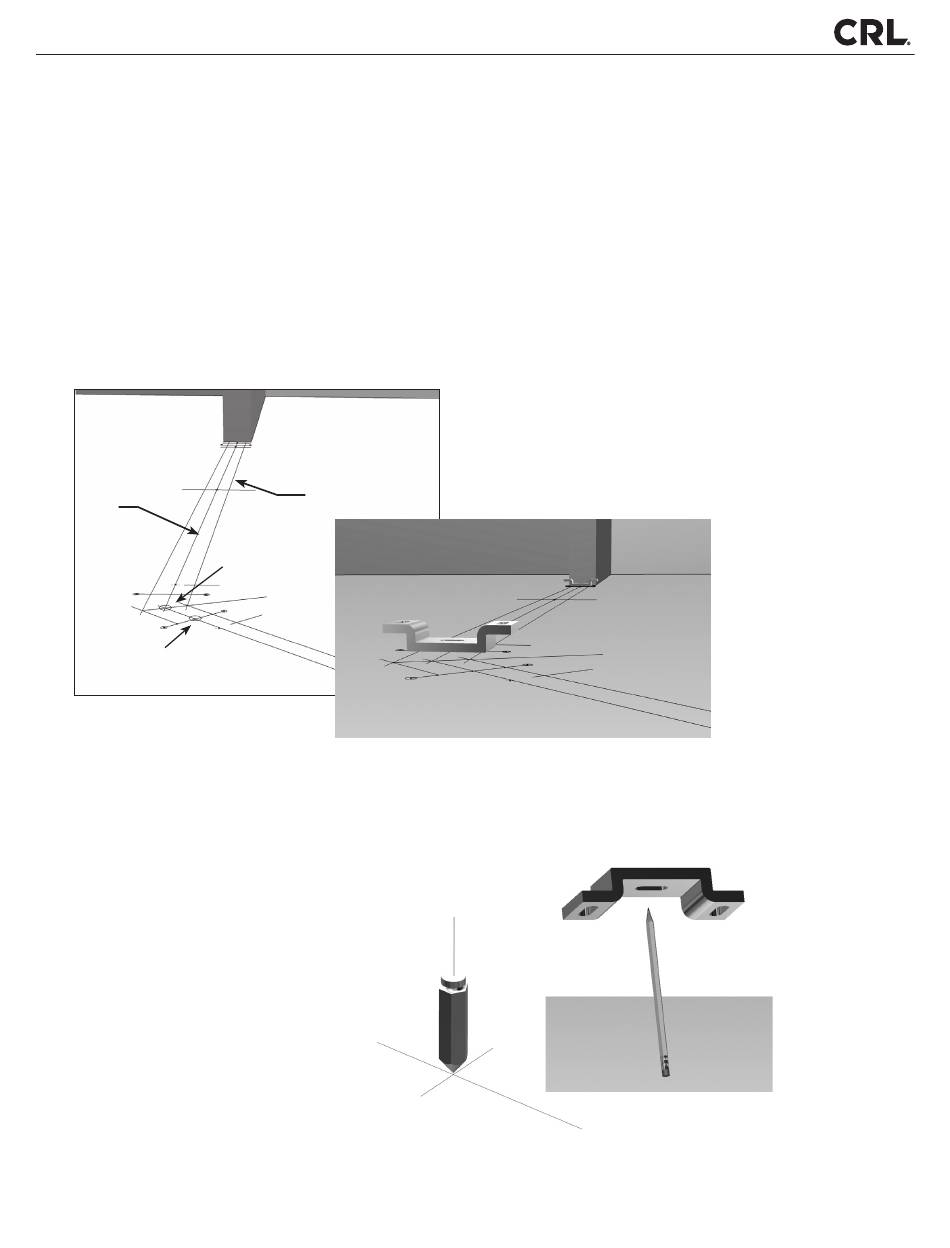

STEP 2: Floor Layout. Critical to a successful installation is an accurate layout directly below the work surface
at the floor level. The layout area MUST be clean and free of any debris. If the floor coverings are installed,
cover with a new layer of rosin paper to accept layout marks.
(a) Begin by marking the centerline of the SPS track from wall-to-wall using the job drawings to obtain
measurements and reference points.
(b) Continue by drawing the track outlines. If possible, check layout lines against actual parts by setting them
on top of the marks.
(c) Using the job-site drawings and a Dual Rod Bracket, mark the center holes of each hanger on the floor.
Track
Center
Lines
Dual Rod Bracket
Center Holes
STEP 3: Ceiling Layout. The goal is to precisely transfer the layout to the ceiling above.
There are several options available including the use of levels and plumb bobs.
A plumb-bob or a plummet is a weight, usually with a pointed
tip on the bottom, that is suspended from a string and used as
a vertical reference line, or plumb-
line. Simply have a helper hold
the line end to the ceiling and you
spot the point. Once the weight
becomes stationary over the
target, mark the ceiling indicating
the center hole position of the
Dual Rod Bracket.
