INTELLI-TRACK™ SPS SYSTEM
DROP-TRACK SUPPORT SYSTEM
PRODUCT DESCRIPTION
Many commercial installations of a Stacking Partition System require the track to be mounted well below an overhead fixed
surface in order to align with the drop-ceiling plane. Previous track support systems have been limited to a short drop length
and have required a great number of support rods in order to maintain load support and lateral stability.
CRL's new Drop Track Support system has been engineered to allow a greater distance from the overhead mounting surface
to the SPS Track. We have reduced the installation time with the addition of the new Intermediate Support Rail Assembly and
adjustable Lateral Support Rods. The result is an increase in sectional strength and system stability.

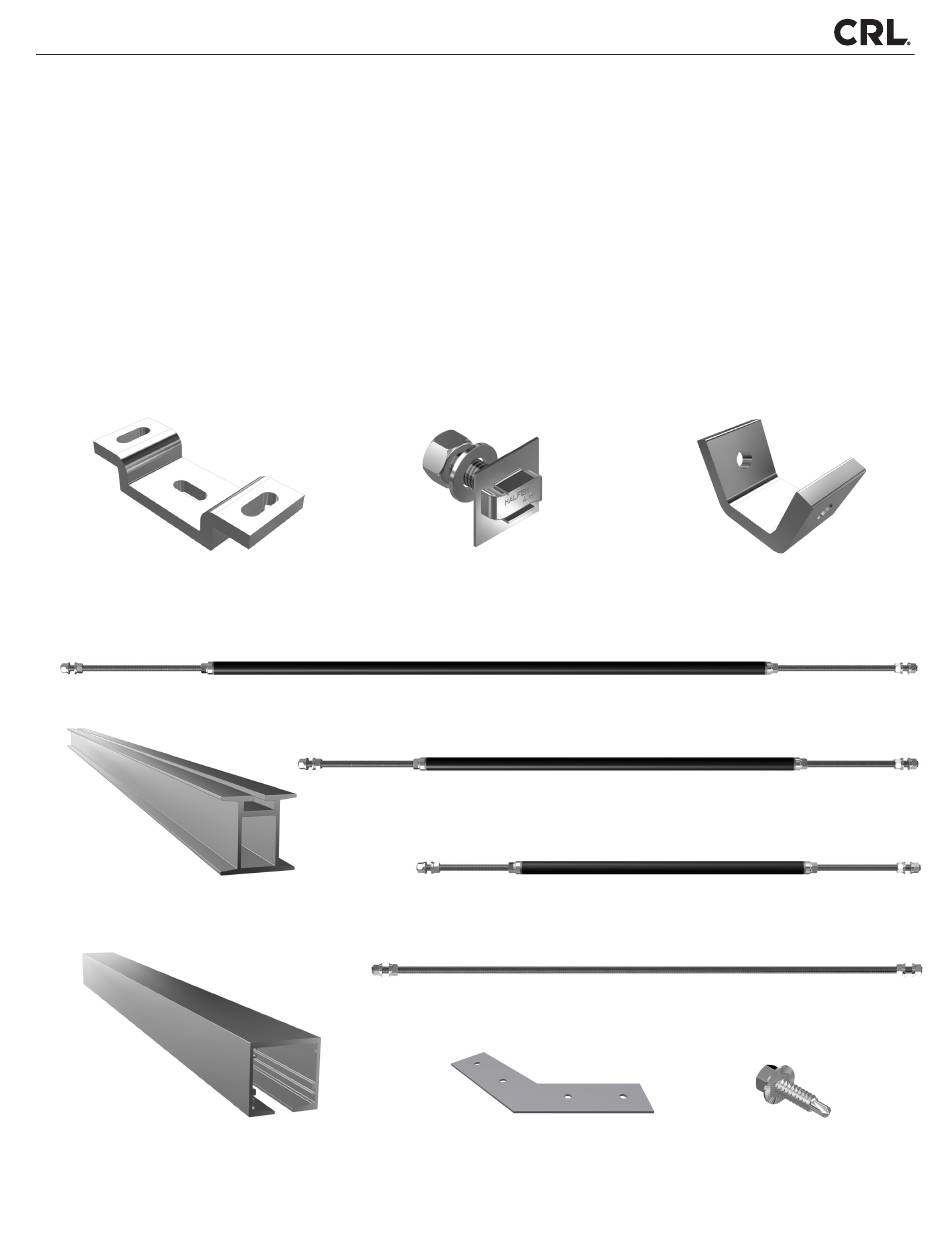

PARTS IDENTIFICATION

Dual Rod Bracket
Intermediate Support Rail
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Main Track
Halfen T-Bolt System
Lateral Stabilizer Tie Rod assembly for drops 50"- 60"
Lateral Stabilizer Tie Rod assembly for drops 42"- 50"
Lateral Stabilizer Tie Rod assembly for drops 34"- 42"
Corner Support Plate
P. 32
Single Rod Bracket
Threaded Rod for drops less than 34"
Self Drilling Screw
