INTELLI-TRACK™ SPS SYSTEM
Assemble Wall Panels (Continued)

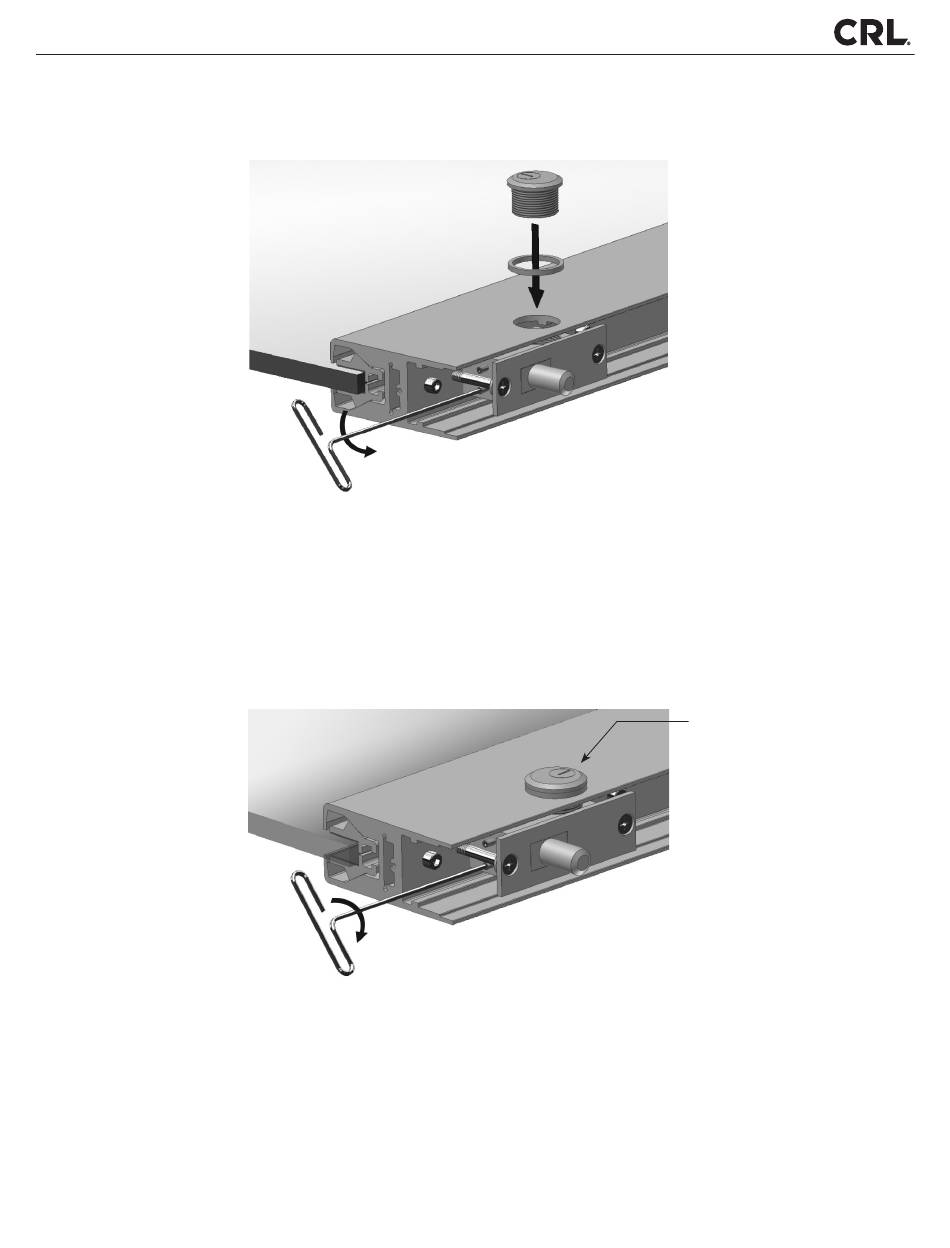

4. Remove End Cap to gain access to the two (2 mm) Allen Set Screws located in the end of the locking mechanism.
Back the Allen Set Screws out until tips have cleared the threads for the Cylinder or Thumbturn. Thread the Cylinders
or Cylinder/Thumbturn that have been chosen for the application through the prefabrication hole in the sides of the
Door Rail and into the lock mechanism. Be sure the 1/8" (3 mm) Spacer Rings are on the Cylinder Thumbturn before
doing this.
5. Once the Cylinders are properly seated, position the small round turning portion of the Cylinder or Thumbturn in the
3 or 9 o'clock horizontal position, depending on which side of the door they are on. The small turning portion should
always face to the opposite end of the Wall Panel Rail. Tighten the two (2 mm) Allen Set Screws to secure the Cylinders
in the correct position. Check to see that the Cylinder/Thumbturn on each side of the Door Rail operates freely before
attaching the End Cap.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144
P. 15
NOTE:
There are three different types
of Cylinder's that can be used:
Keyed Cylinder: Cat. No. DRA10
Thumbturn: Cat. No. DRA22
Dummy Cylinder: Cat. No. DRA30
3 o' cl ock
Position
