INTELLI-TRACK™ SPS SYSTEM
INSTALLATION PROCEDURES (Continued)

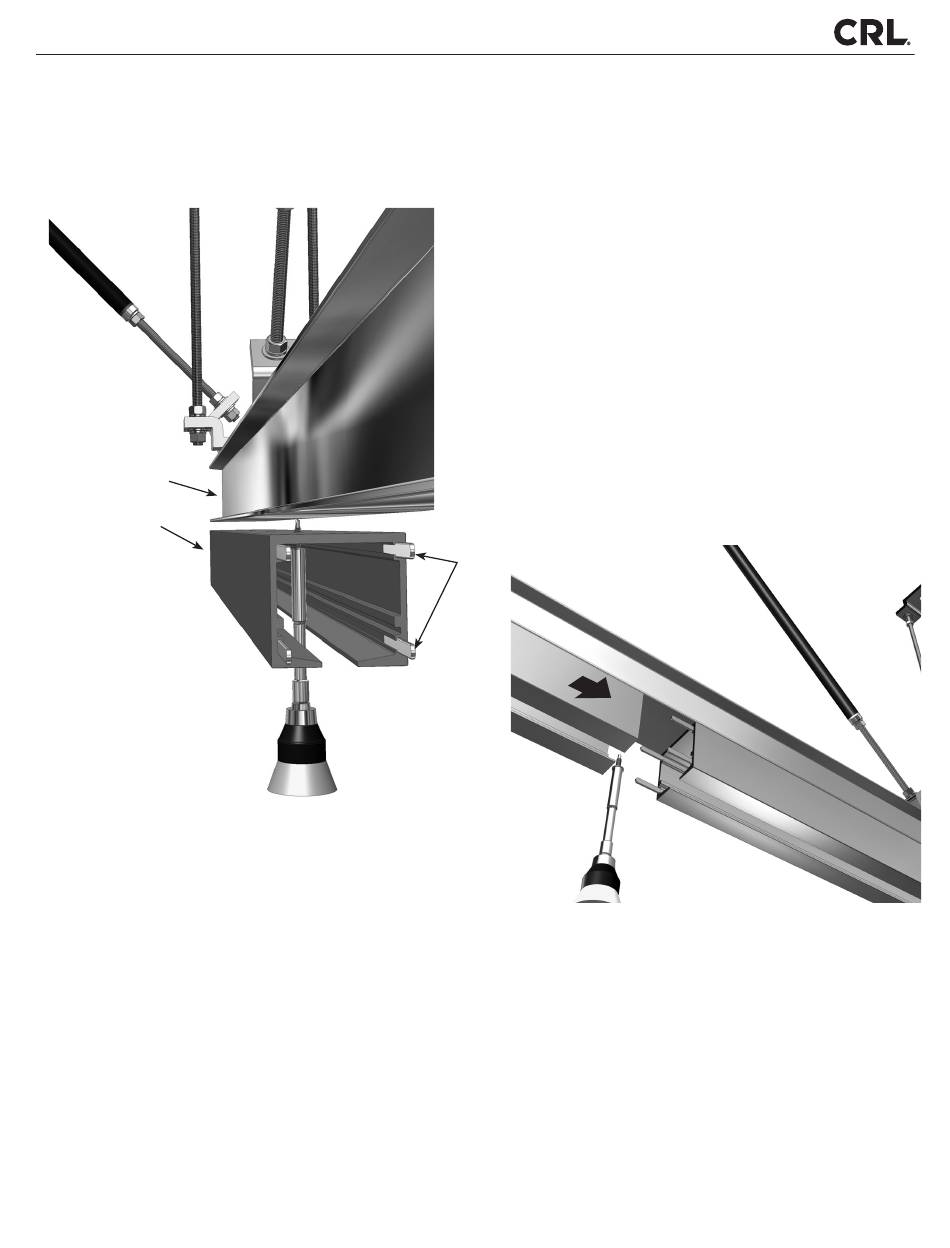

STEP 11 Attach the Track Sections. Insert four alignment pins in the shared end of the first track section furthest
from the parking area. Using the Self Drilling Screws and an appropriate drill driver with socket,
attach the track to the Intermediate Support Rail one section at-a-time. Align the track's edges to the
Intermediate
Support Rail
Main Track
Continue attaching all of the track using the same procedures. However, it is important NOT to install
alignment pins on the Access Section. It is the small removable section between the main track and the
parking area to allow for the insertion of the stacking panels. The Access Section should be secured with
2-3 self taping screws. When all of the track sections are attached, carefully secure the attachment screws
aligning edges as you go. Double check all of the Stabilizer Tie Rods insuring that the lock nuts are tight.
A properly installed Drop Track system should have good rigidity and straight sightlines. Any offset ends
not aligned properly to the adjacent track can result in a "roller bump". Do not lubricate the track channel.
Clean all debris from inside the track before use. The CRL Drop Track Support System allows easy
adjustments while providing a rigid and secure platform for our Stacking Partition Systems.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
Intermediate Rail and drive the Self Taping screws snugly
through the pre-drilled holes. Now back the screw
off about 1 turn or enough to allow temporary side-to-side
movement in the track. The temporary free play will make
it easier to connect the alignment pins to the next section.
Alignment Pins
Slide into position and attach
with Self Taping Screws
P. 39
