INTELLI-TRACK™ SPS SYSTEM
PHASE THREE

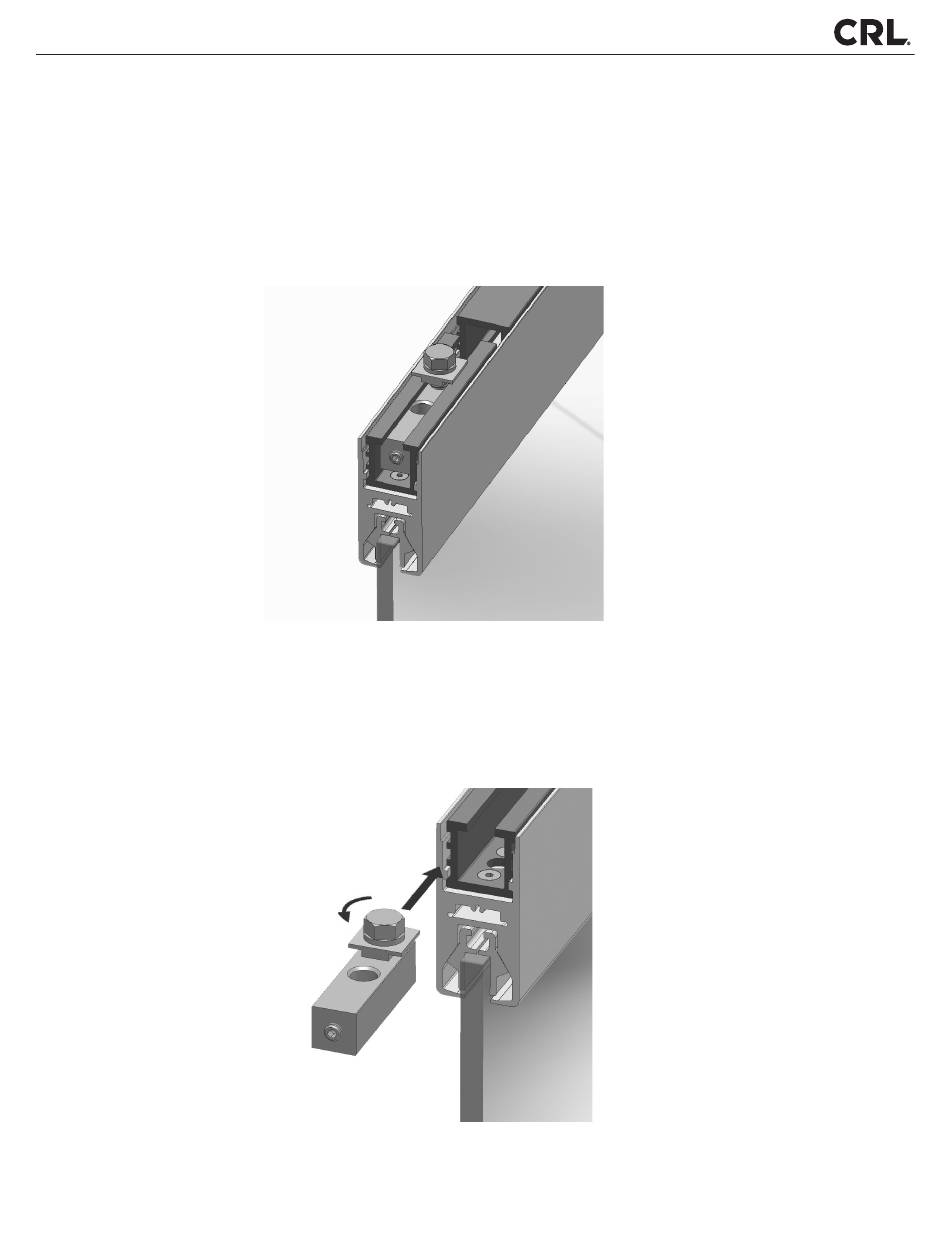

Top Door Rail Fitting Pivot Receiver Installation
1.
The Top Door Rail Fitting Pivot Receiver must be installed into the top door rail. CRL will provide a special
door rail preparation ready to accept this hardware.
2.
Loosen the 1/2" Hex Bolt located on the top of the Pivot Receiver. With the door rail's End Cap removed, slide
in the Pivot Receiver. Make certain that the 3/8" set screw installed at the end of the Pivot Receiver is facing
outward toward the end of the door rail. Loosen this set screw if it is visible in the pivot pin receiving hole.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
• 1.800.421.6144
P. 26
• crlaurence.com
