INTELLI-TRACK™ SPS SYSTEM
Install the Sliding Wall Panels into the Track
1. Remove the Roller Access Splice, which is typically located in front of the first Parking Area Track intersection.
Consult CPP for location.
2. Starting with Panel #1, install a pair of Intelli-Track™ Roller Assemblies into the SPS Track through the
roller-access opening.
Refer to the CPP for proper orientation of the Tracking Rollers of each Intelli-Track
The programming of the Movable Wall Panels is determined by the orientation of the Rollers and must match the CPP.
This is the key element in determining how the Wall Panel is routed by the SPS intersections.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
2.6

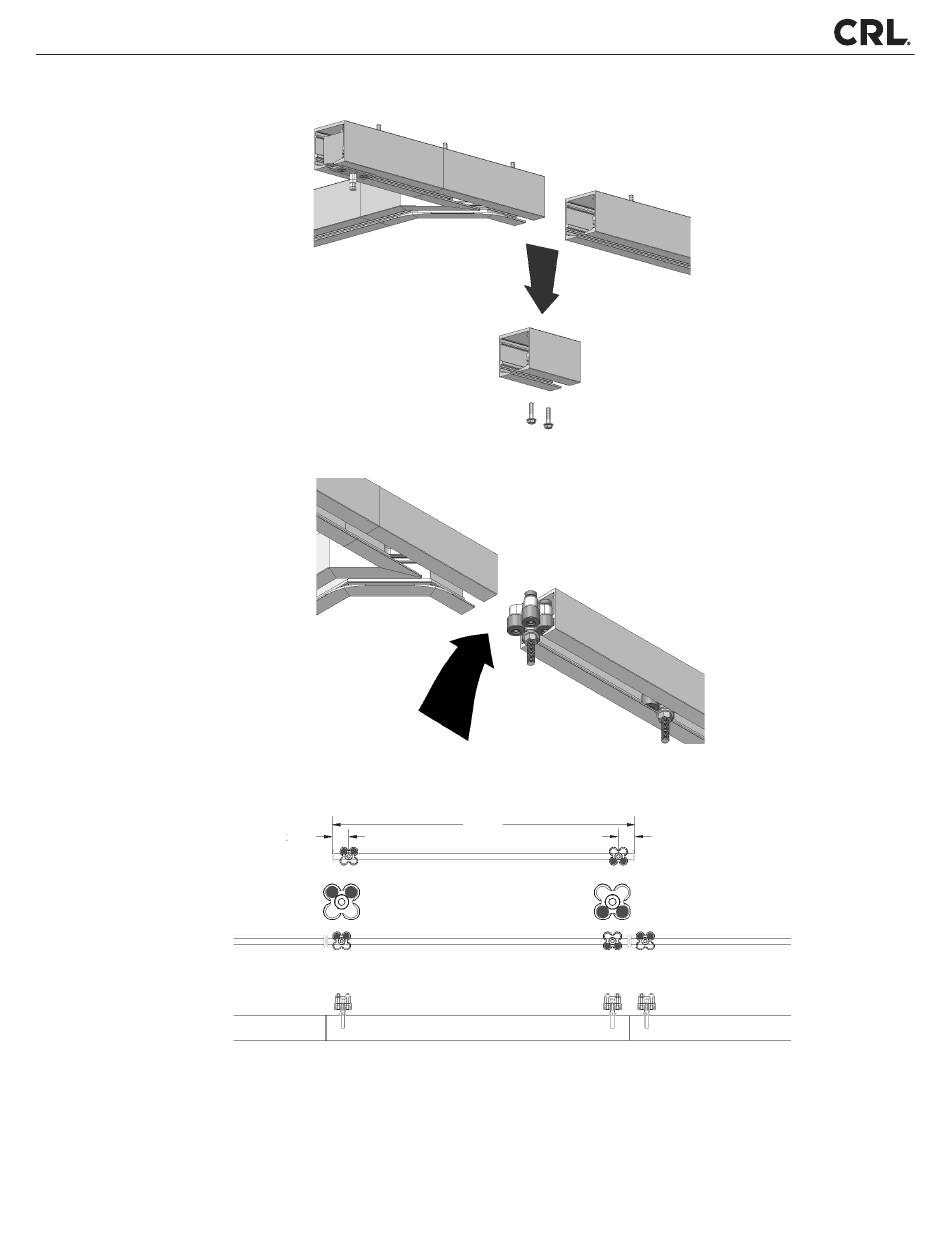

PLAN VIEW - TOP RAILS
