SPS Glass Wall Panel Assembly, Installation

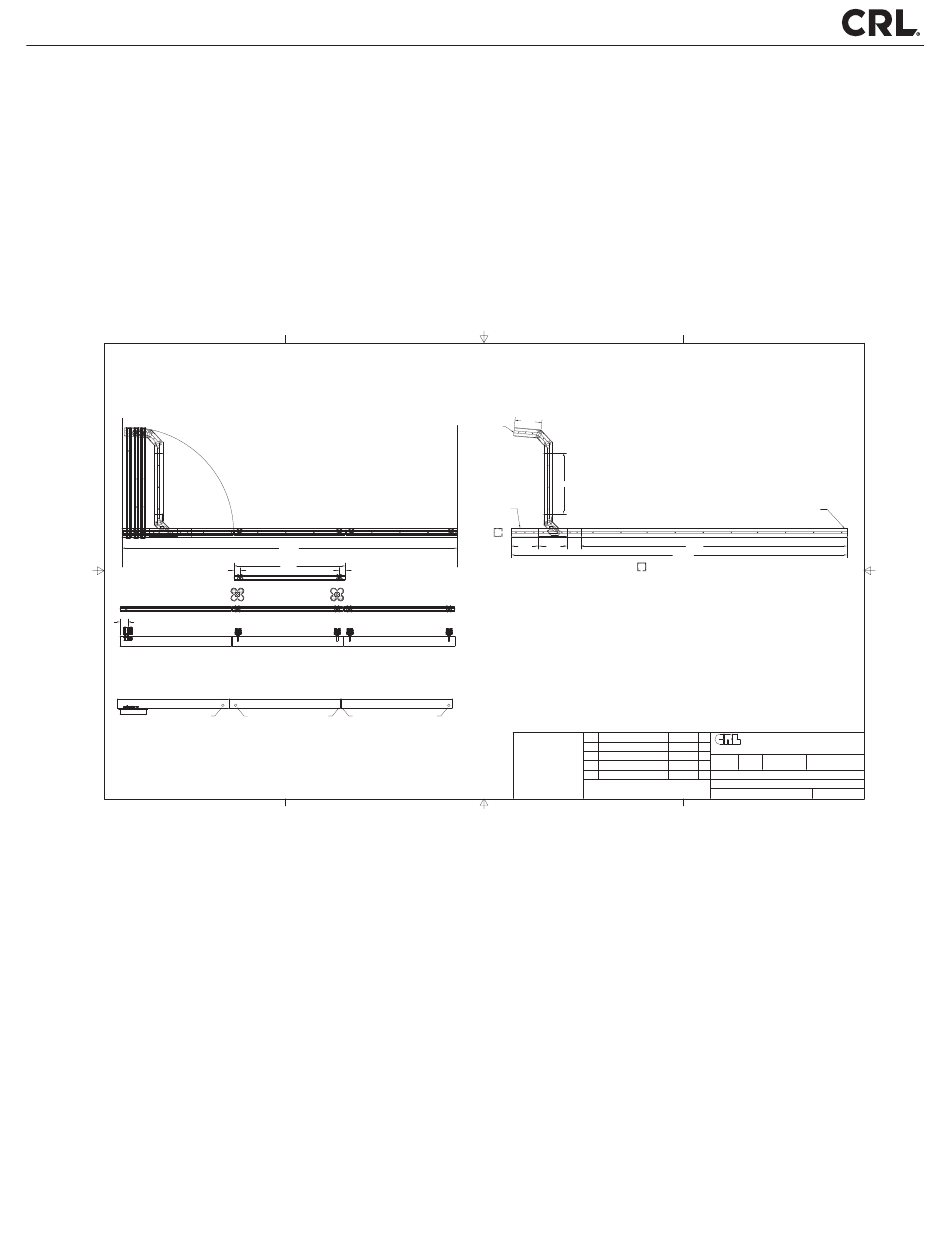

Component Placement Plan (CPP)
4
B
3.375
TOP RAIL #3
A
BTM RAIL #3
CYLINDER OUT
RECEIVER
THUMBTURN IN
FLOOR CLOSER
4
Review the Component Placement Plan provided by CRL to determine Wall Panel Bottom Rail
configuration, size, and sequence number. NOTE: The #1 Wall Panel is the Panel farthest from the parking
area. Each component is labeled to match its designated location on the plan.
