INTELLI-TRACK™ SPS SYSTEM
Convertible Door (Continued)

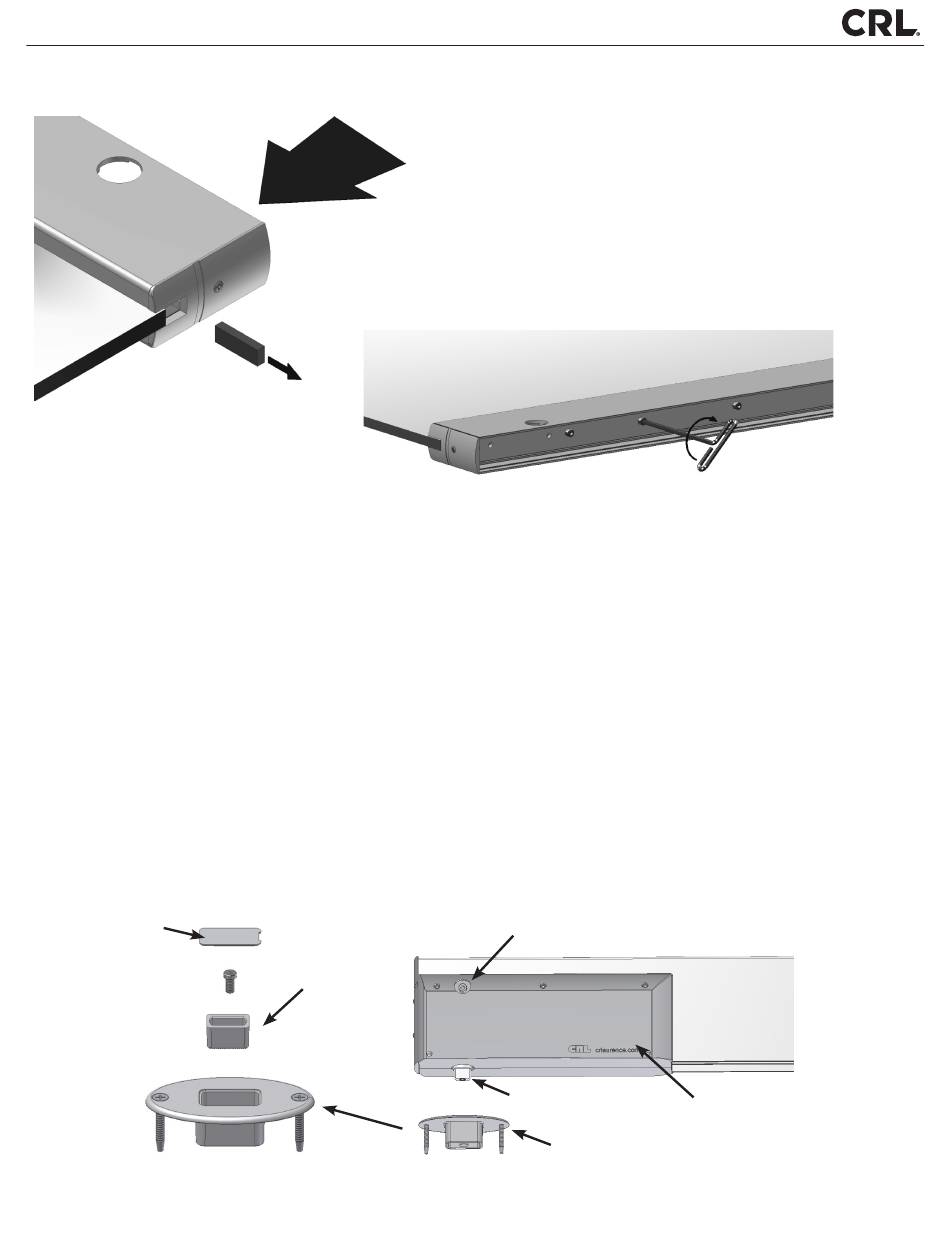

5) Tighten a socket head cap screw in the middle of the channel with the 3/16" Tee Handle Allen Wrench supplied in the
hardware box. Top Wall Panel Rail Socket Head Cap Screws are accessed through holes in a cover plate. Tighten all
of the Socket Head Cap Screws working left to right using the 3/16" Tee Handle Allen Wrench. To assure the proper
torque is achieved (7 to 8 foot pounds), tighten again from left to right, only this time turn the Tee Handle Allen Wrench
until it begins to twist. This twist indicates the proper torque has been achieved. Usually a third sequence of tightening is
not necessary. However, it's easy to make a quick check by simply inserting the Tee Handle Allen Wrench into a screw
that was already tightened a second time.
6) Attach the Roller Assemblies to the top Rail and slide the door into the track following the steps outlined in the Phase Two
Assembly Instruction Section. Position the Convertible Door into the operating location along the overhead track.
Proceed to the next step to install the Floor Receiver.
7) Adhere several layers of tape to the floor under the Convertible Door's location. Hold the door in position. Make sure that
it is plumb, level and aligns with the adjacent panels. Lower the spindle firmly so that it imprints the tape. Slide the door to
the side and install the floor receiver
8) Make a hole in the floor 1.25" Wide x 2.25" Long x 1.25" Deep centered around the mark left by the
door spindle. Make sure that the receiver box is centered in the unit to allow adjustment latter in either direction.
Dust Cover
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
4) After alignment of the glass, pull the Spacer Blocks from each end of the
Wall Panel Rail, then push the Wall Panel Rail toward the glass until the
glass bottoms out in the Wedge-Lock™ Channels. Check again for alignment
Adjustable
Receiver
Cup
P. 41
Spindle Drop Bolt
Spindle
Cover Panel
Floor Receiver Body
