INTELLI-TRACK™ SPS SYSTEM

Operating Procedures

IMPORTANT: To avoid damage and injury follow each step in the order presented.
Conversion to Swinging Door:
1) Slide panel into position.
2) Using the Adjustment Tool, lower the Spindle completely into the Floor Receiver.
3) With the Allen Tool, insert it through the Lock Bolt Access and turn the Lock Bolt Clockwise. Completely draw the
Bolt Block up to the Converter until it is snug. At the same time the Track Pin will drop clear of the Receiver Block.
4) At this point the door should pivot with the closer engaged and open in both directions.
Conversion to Stacking Panel:
1) Using the Allen Tool, insert it through the Lock Bolt Access and turn the Lock Bolt Counterclockwise until it drops
freely and is no longer engaged into the Converter.
2) Raise the Closer Spindle with the Adjustment Tool until it fully retracted into the Closer Housing.
3) The panel is ready to stack.
NOTE: Engagement of the Spindle into the Floor Receiver must be the First In and Last Out Procedure.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058 • 1.800.421.6144
P. 43

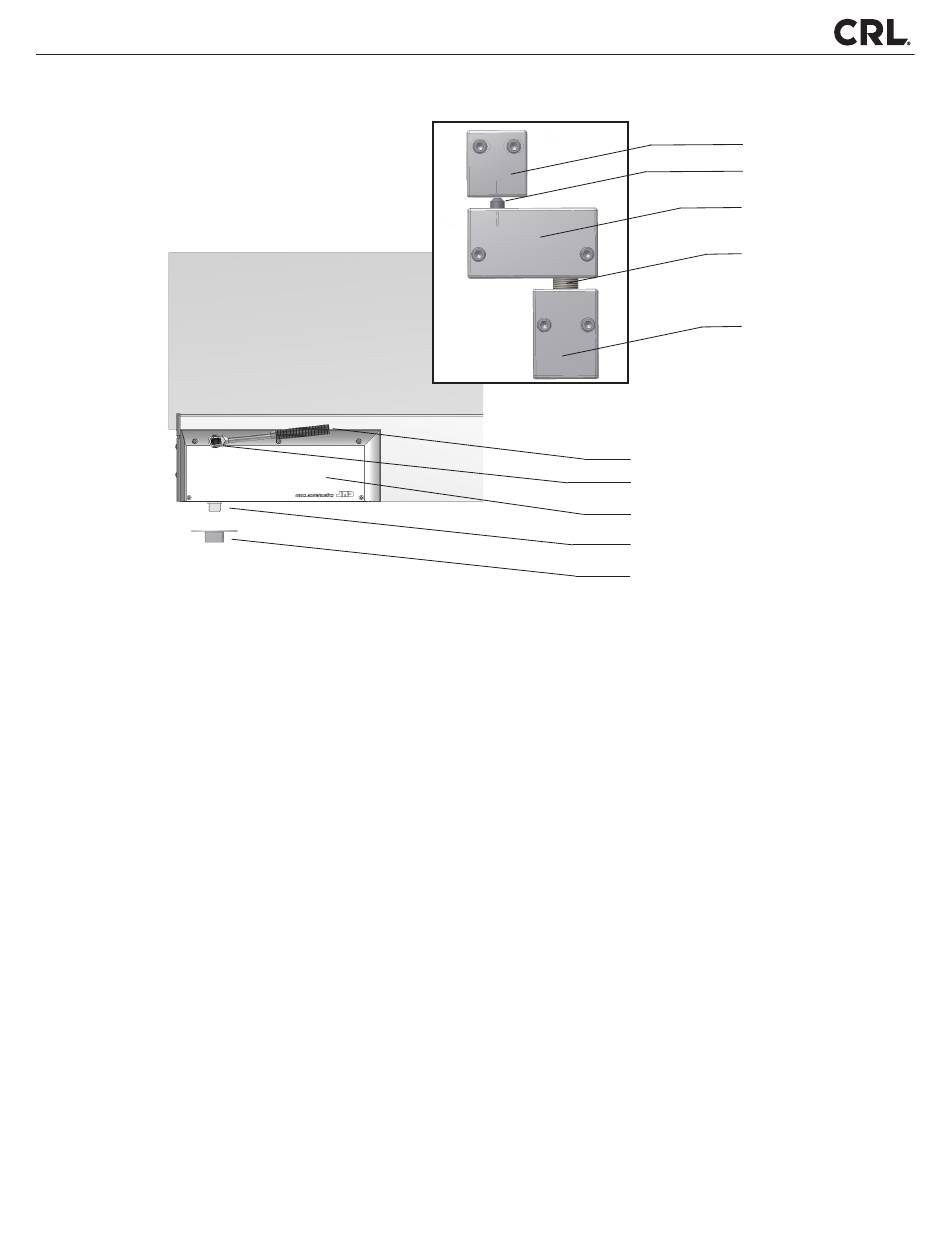

Receiver Block
Track Pin
Converter
Lock Bolt
Bolt Block
Adjustment Tool
Adjustment Bolt
Closer Housing
Spindle
Floor Receiver
