INTELLI-TRACK™ SPS SYSTEM

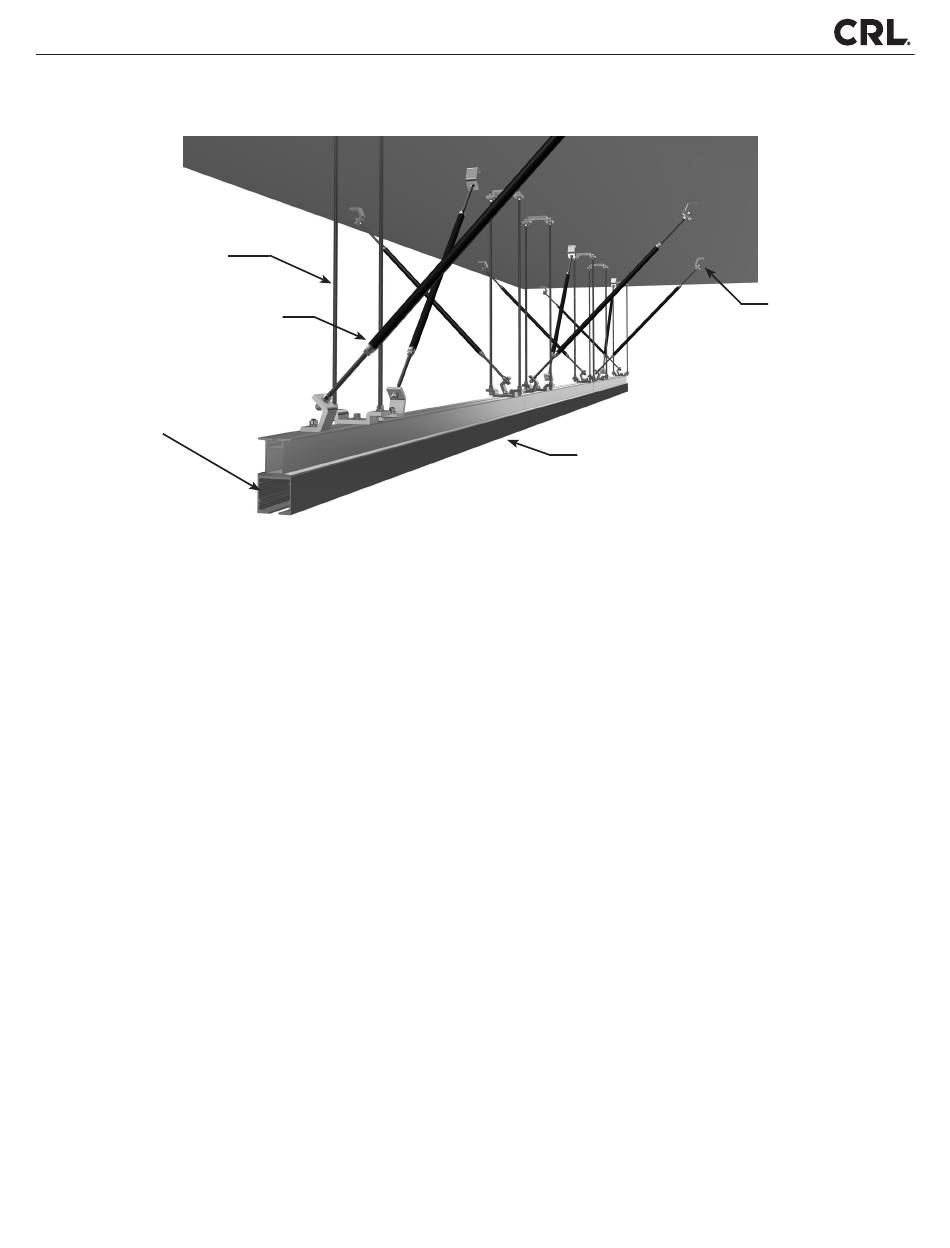

TYPICAL DROP-TRACK INSTALLATION
Dual Threaded
Hangar Rods
Adjustable Lateral
Stabilizers Tie Rods
Intermediate
Support Rail
Properly Engineered mounting procedures to a fixed overhead surface must
be strictly followed. Any deviation could result in bodily injury to you and others.

INSTALLATION PROCEDURES

STEP 1: Parts Inventory. Make sure that you have all of the necessary components
for the installation before starting the job.
PARKING AREA:
SPS ROLLER TRACK:
INTERMEDIATE SUPPORT RAIL:
DUAL ROD BRACKETS:
SINGLE ROD BRACKETS:
LATERAL STABILIZER TIE RODS:
34" THREADED ROD:
HALFEN T-BOLT ASSEMBLY:
SELF-DRILLING SCREW:
CORNER SUPPORT PLATE:
NOTE: Fasteners are not included for attaching the brackets to the ceiling or roof-structure above. It is your
reasonability to assure that the method of attachment is properly engineered to support the SPS system.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
SPS Roller Track
Shipped from factory as a single-welded unit.
Pre-cut straight and mitered sections.
Pre-cut straight and mitered sections
Minimum four brackets (top and bottom) per 8' of track.
Minimum four brackets (top and bottom) per 8' of track.
Minimum three assemblies per 8' of track.
(Optional) Replaces Tie Rods on drops less than 34".
One for each bottom bracket.
Minimum every 12" of roller track.
Not Required on all systems.
• 1.800.421.6144
P. 33
Overhead
surface
fasteners
NOT
INCLUDED
