INTELLI-TRACK™ SPS SYSTEM

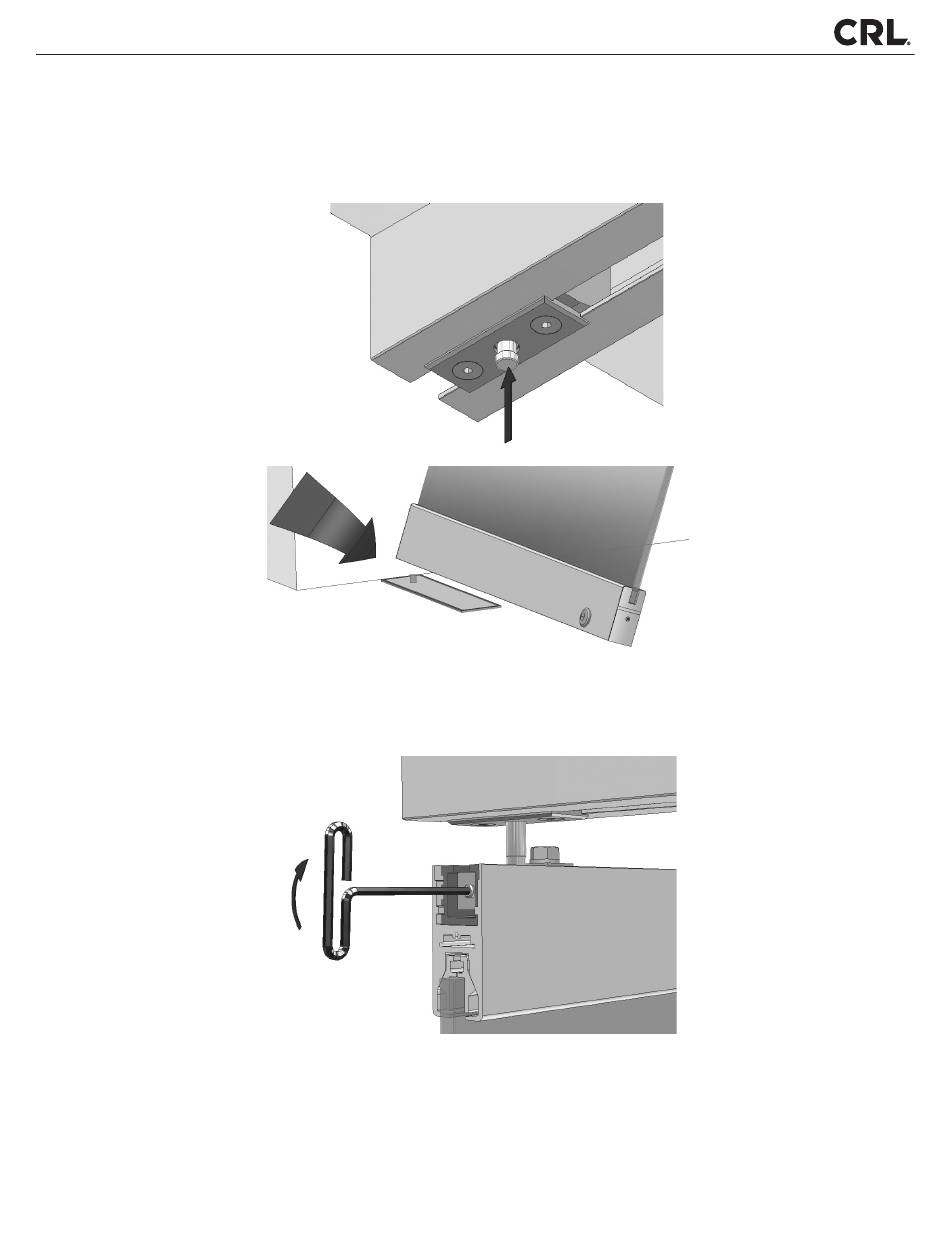

Hanging the Pivot Door
1. Lift the Pivot Pin up into the Track before resting the door on top of the floor mounted closing device.
2. Tile the door to it's upright position. Align the pivot pin receiving hole with the pivot pin, and then pull down on the
.
pivot pin until it bottoms out in the receiving hole. It is now safe to release the weight of the door.
.
3. Carefully open the door to expose the 3/8" set screw found at the end of the Pivot Receiver. Using a 3/16"
Hex Drive Socket or T-Handle Hex Tool, turn the set screw clockwise until it presses firmly against the Pivot Pin.
IMPORTANT NOTE: This step is critical in order to prevent the Pivot Pin from disengaging and possible
door support failure.
