INTELLI-TRACK™ SPS SYSTEM
Top Door Rail Fitting Pivot Receiver Installation (Continued)
3.

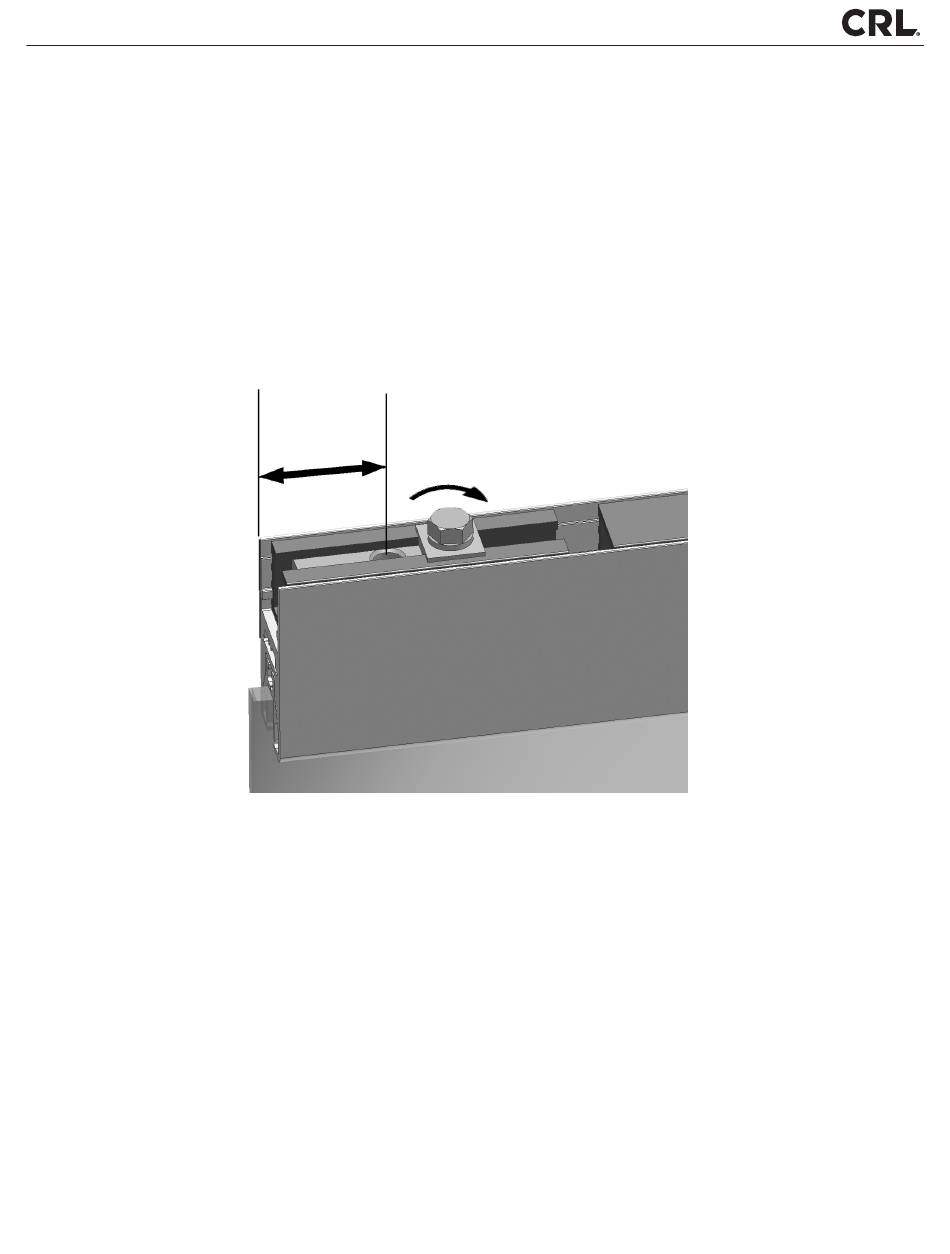

Align the pivot pin receiving hole's center at 2-3/8" (60.3) as measured from the end of the door rail, with the
End Cap removed.
4.
Using a 1/2" open-end wrench, tighten the 1/2" Hex Head bolt until the hardware is locked in place.
C.R. Laurence Co., Inc. • 2503 E. Vernon Ave., Los Angeles, CA 90058
2-3/8"
(60)
P. 27
• 1.800.421.6144
• crlaurence.com
