In addition to the LEDs described in the above table, the front panel also has LEDs linked to the Switch Ethernet in-
terfaces.

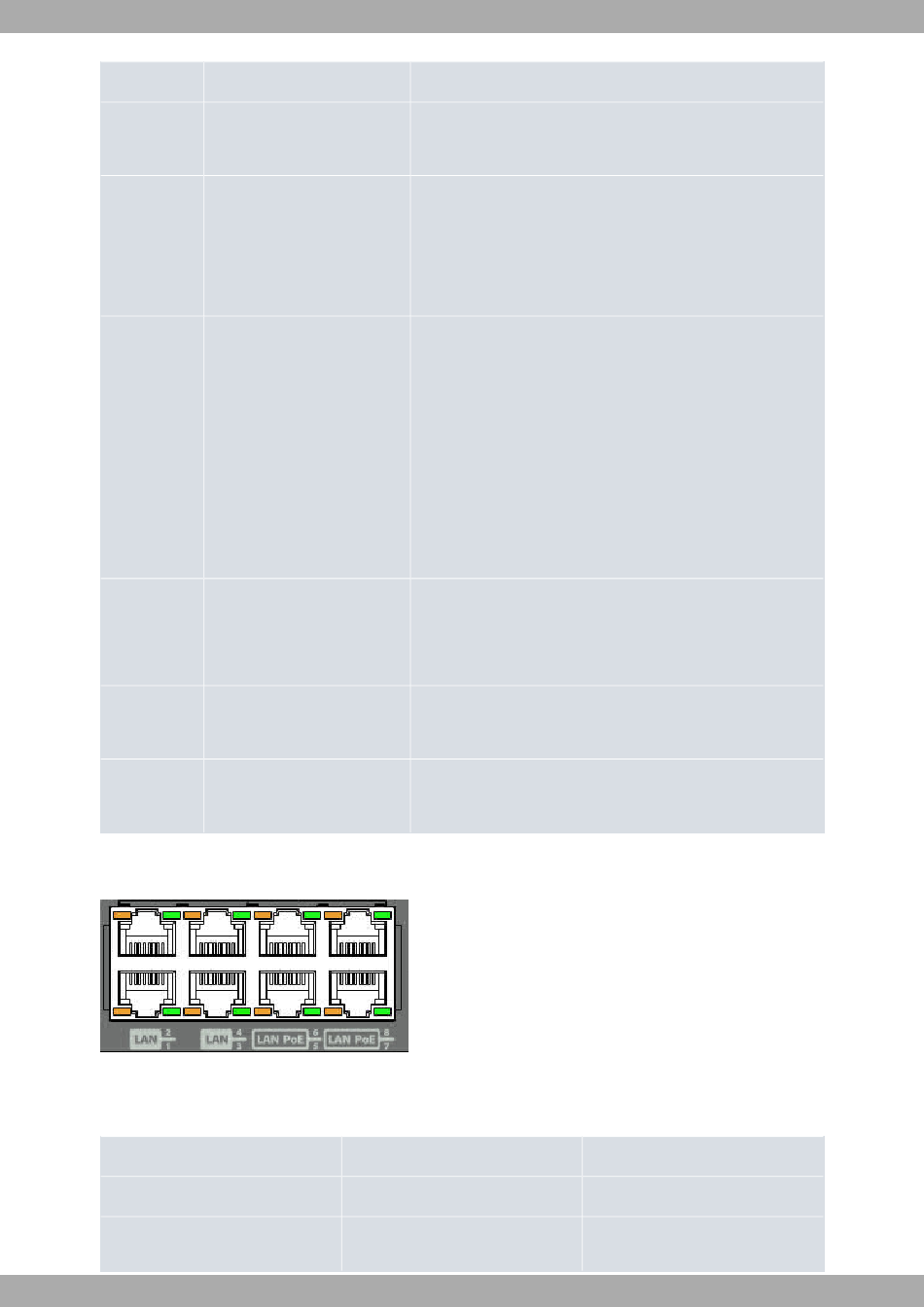

Ethernet interface LEDs
Fig. 2:
The table below provides information on the LEDs associated with the Switch Ethernet interface:
Switch Ethernet interface LED indicators
LED
Orange
Green
Teldat Router iM8-Cx
Definition
Power / Switch On-Off
General Status /
Default Configuration Process
USB Interface Status
LAN Switch interface activity
Base-T
SFP
Description
PoE activity
Ethernet (link) connection established Off -> Link has not been detected.
Status Indication
Off -> no power through PSU.
On -> powered through PSU.
Off -> system off.
Red -> Error, component operating incorrectly.
Green -> System initialized and operating.
Amber (blinking) -> Default configuration.
Off -> system stopped.
Red -> interface is unavailable because it is installing, it is dis-
abled (shutdown) or due to auto-test failure.
Amber -> idle.
• Rapid blinking. It has not registered in the network or the quality
is insufficient.
• Slow blinking. GSM connection (GPRS).
• Steady. WCDMA (UMTS / HSDPA) connection.
Blinking (green/red) -> activity/maintenance.
Green -> connected. Blinking: connection data activity.
Red -> disconnected.
Off -> interface off.
Green -> connected. Blinking: connection data activity.
Off -> not used.
Green -> connected. Blinking: connection data activity.
Off -> not used.
State
Always OFF.
