3.6.2 WAN connection

The Teldat iM8-Cx has 1 Ethernet interface for WAN connection. This port has 2 connectors - SFP for optical link
and RJ45 for 10/100/1000 Base-T link - but they cannot work simultaneously. This interface is totally independent
from the Switch and is handled as just one more interface.
Please pay careful attention to the labeling to avoid mixing up these ports with other port types:

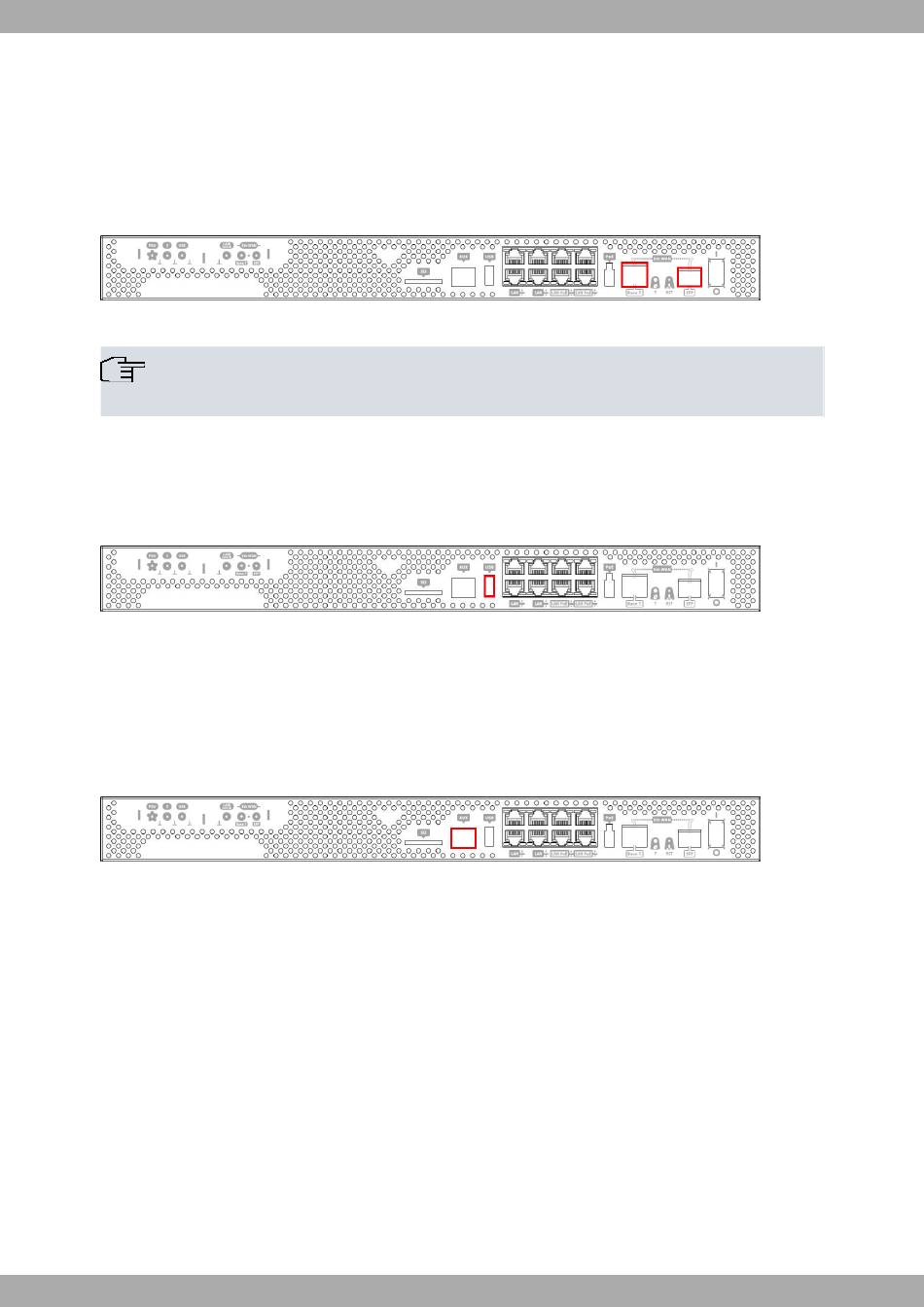

WAN connectors
Fig. 7:
Note
During booting and in BIOS mode, the WAN connectors do not work.

3.6.3 Connecting a USB device (USB connector)

The Teldat iM8-Cx router has a USB HOST 2.0 Type A connector interface, allowing for USB devices to be connec-
ted. The interface can be activated through the purchase of the corresponding software license.
USB Connector
Fig. 8:

3.6.4 Connecting for configuration

The Teldat iM8-Cx has a RJ45 female connector on the front panel (labeled "Aux") that provides access to the
device's local console.
For further information, please see
Aux Connector
Fig. 9:
Teldat Router iM8-Cx
Connecting to the device on page 14.
