Downloading the Project to the Module

In order for the module to use the settings you configured, you must download
(copy) the updated Project file from your PC to the module.
In the tree view in ProSoft Configuration Builder, click once to select the
1
MVI56E-MNETCR module.
2 Open the P

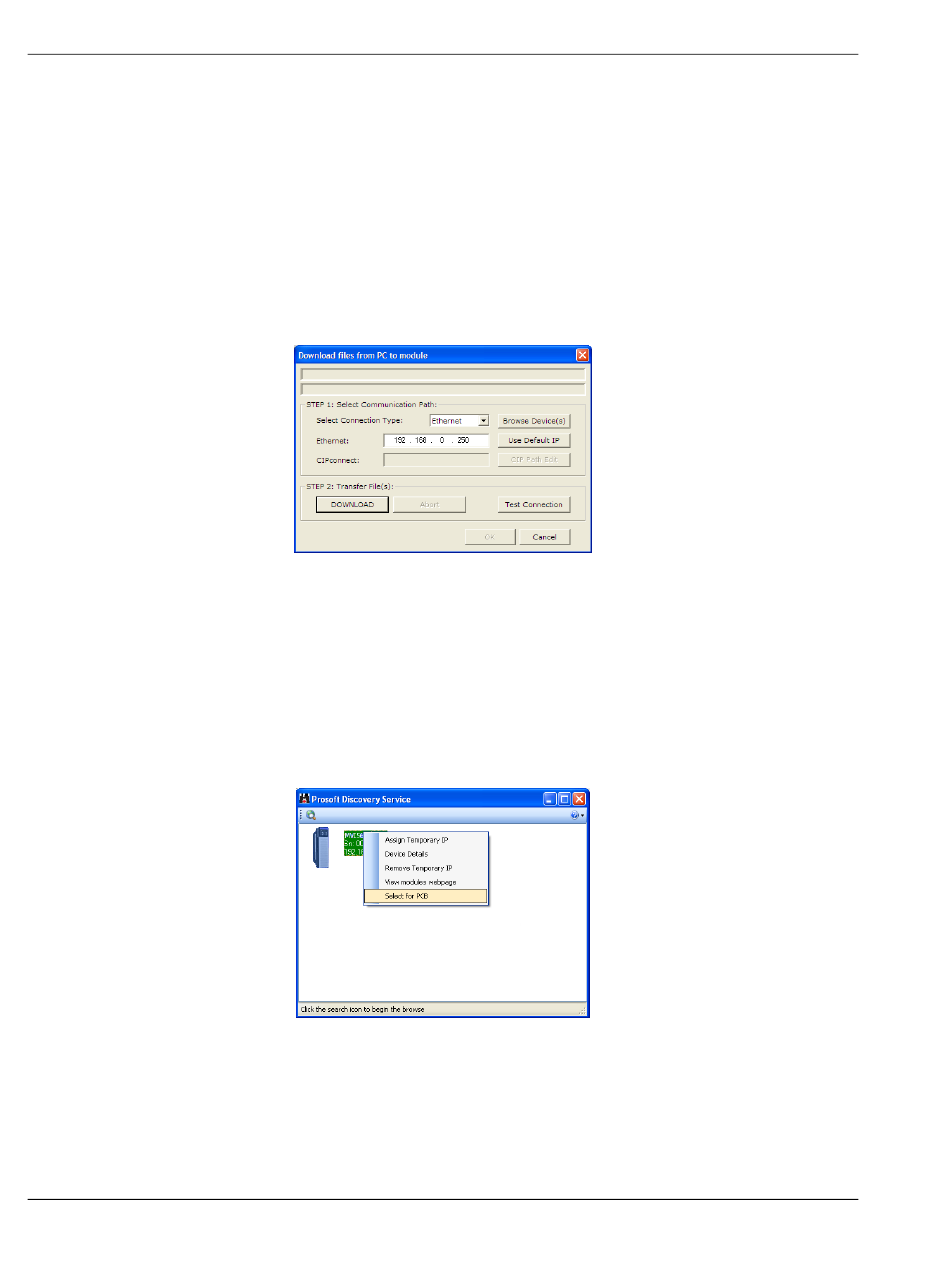

This action opens the Download dialog box. Notice that the Ethernet address
field contains the temporary IP address you assigned in the previous step.
ProSoft Configuration Builder will use this temporary IP address to connect to
the module.
Click T
EST
If the connection succeeds, click D
3
configuration to the module.
If the Test Connection procedure fails, you will see an error message. To correct
the error, follow these steps.
1 Click OK to dismiss the error message.
On the Download dialog box, click B
2
Discovery Service.
3 Select the module, and then click the right mouse button to open a shortcut
menu. On the shortcut menu, choose S
Close ProSoft Discovery Service.
4
Click D
5
OWNLOAD
Page 62 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
menu, and then choose M
ROJECT
to verify that the temporary IP address is correct.
C
ONNECTION
to transfer the configuration to the module.
