MVI56E-MNETCR ♦ ControlLogix Platform
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
The module responds to a command control block with a block containing the
number of commands added to the command queue for the port. The following
table describes the format for this block.
Offset
0
1
2 to 40
41
Reset Module Status Block (9971)

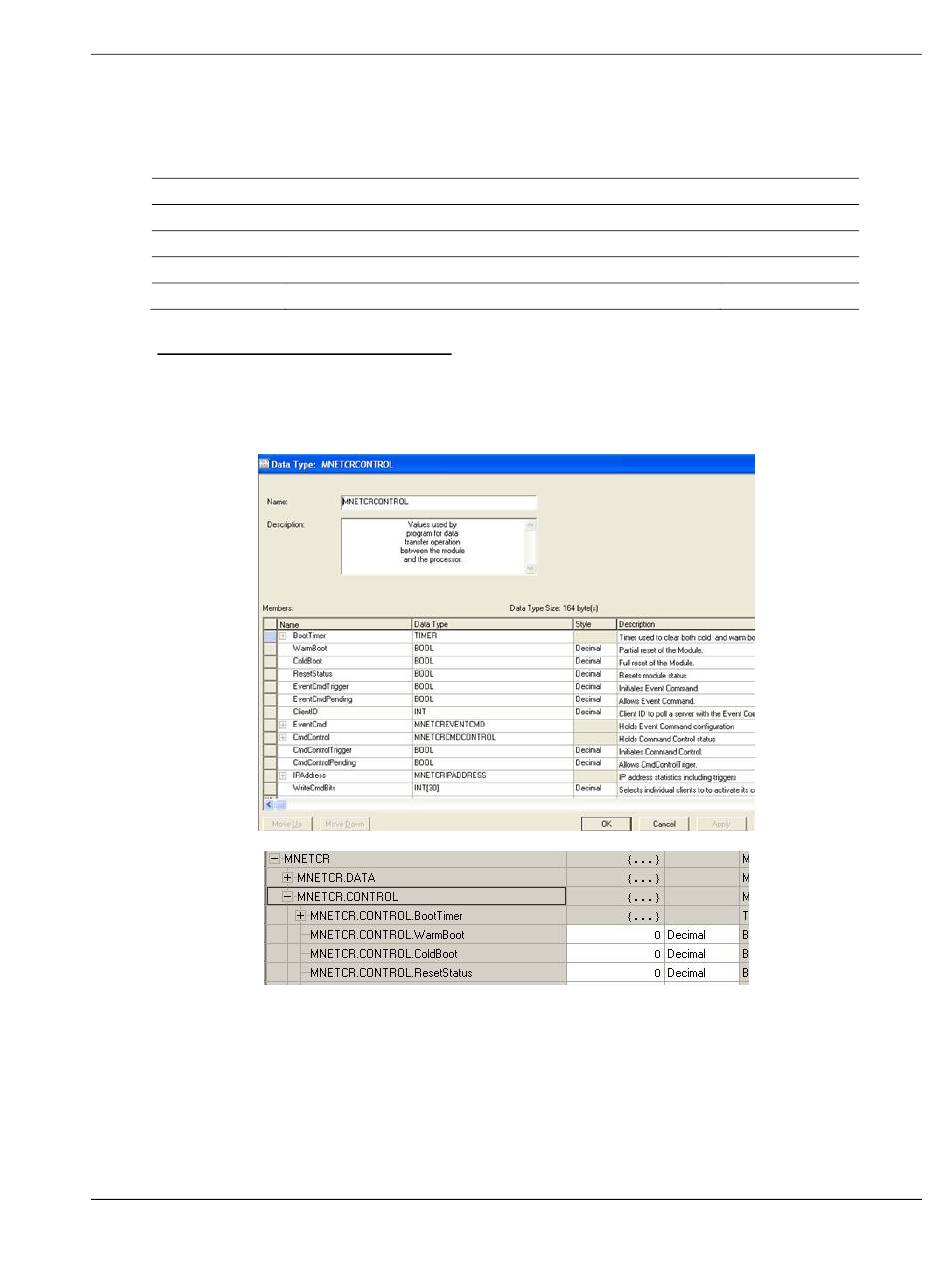

This block allows the processor to reset all status values available from the
module to the processor or through the PCB diagnostics menu. This block is
triggered through the following data type and controller tag elements:
ProSoft Technology, Inc.
June 14, 2011
Description
Write Block ID
Number of commands added to command queue
Spare
5001 to 5016
Reference
User Manual
Length
1
1
39
1
