Reference
User Manual

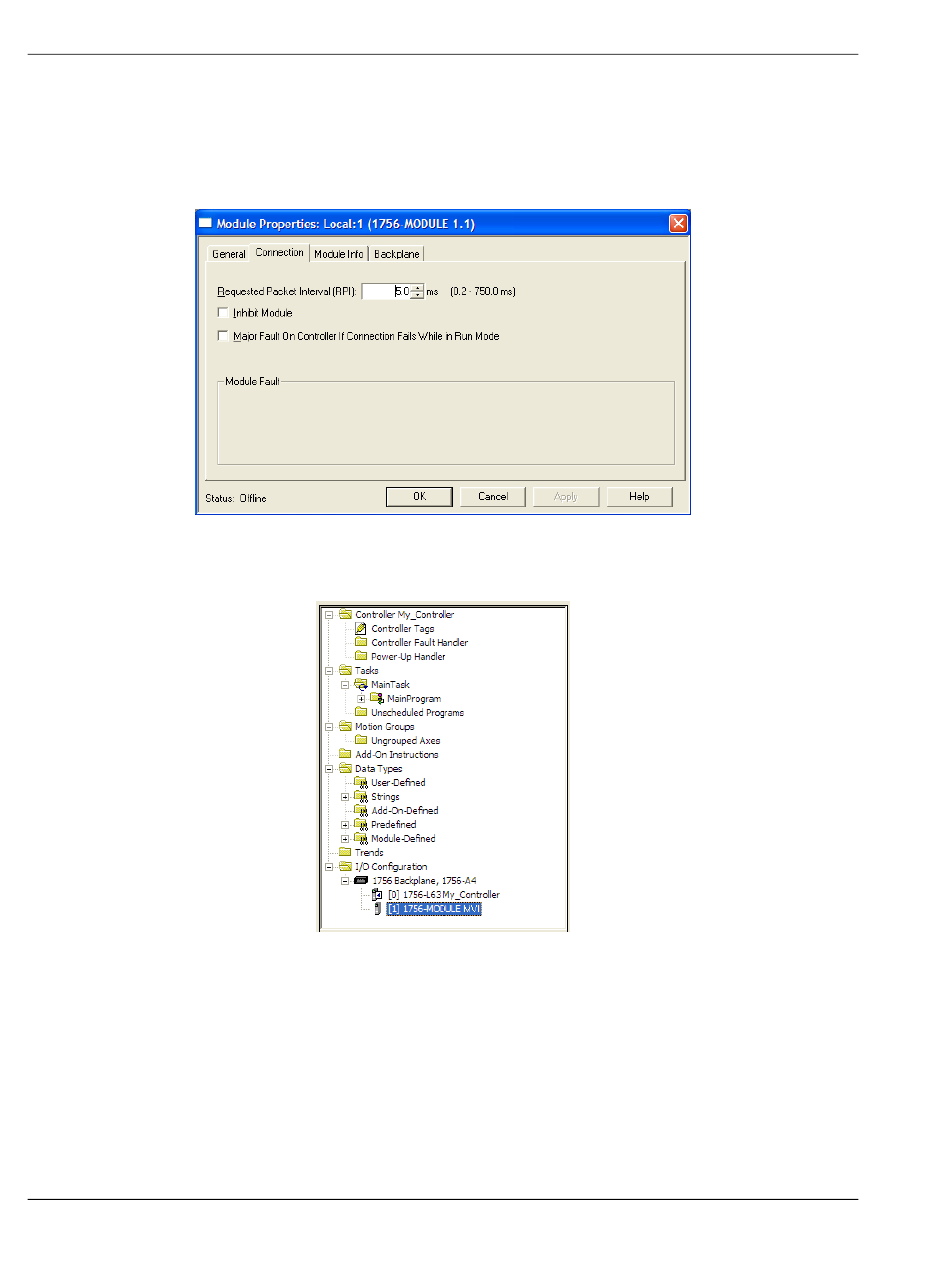

Edit the Module Properties. Select the R
2
for scanning the I/O on the module. This value represents the minimum
frequency that the module will handle scheduled events. This value should
not be set to less than 1 millisecond. The default value is 5 milliseconds.
Values between 1 and 10 milliseconds should work with most applications.
3 Save the module. Click OK to dismiss the dialog box. The C
O
RGANIZATION
Copy the Controller Tags from the sample program.
4
Copy the User Defined Data Types from the sample program.
5
6 Copy the Ladder Rungs from the sample program.
Save and Download (page 43) the new application to the controller and place
7
the processor in run mode.
Page 144 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
window now displays the module's presence.
MVI56E-MNETCR ♦ ControlLogix Platform
P I
EQUESTED ACKET NTERVAL
ONTROLLER
ProSoft Technology, Inc.
value
June 14, 2011
