Start Here
User Manual

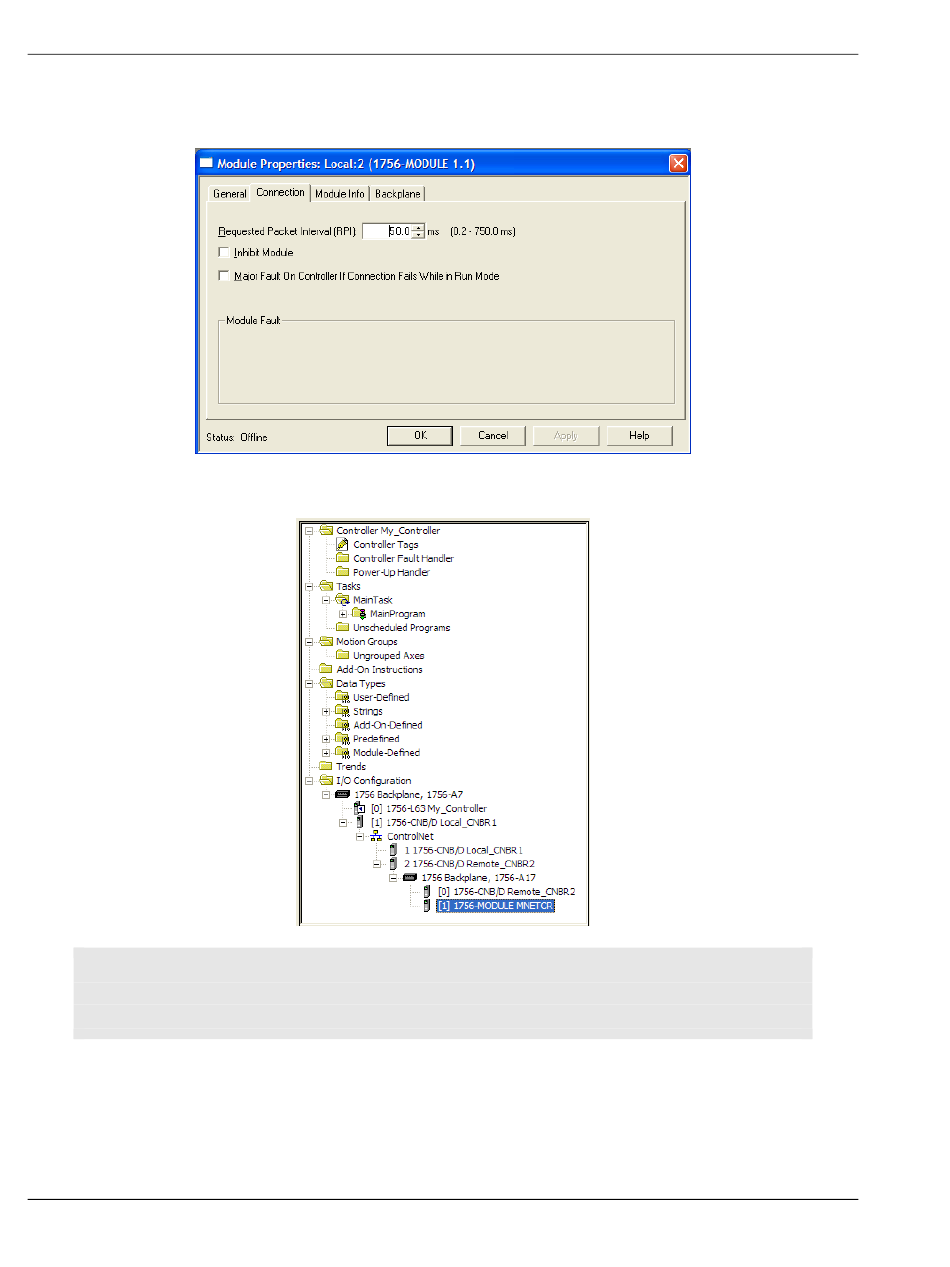

4 On the C
ONNECTION
is usually a good starting value.
The MVI56E-MNETCR module is now visible in the I/O C
Note: If you are installing the MVI56E-MNETCR module in a local rack, follow these next few
steps. If you are installing the module in a remote rack, follow the steps in Create the Module -
Remote Rack (page 27).
Page 30 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
tab, set the RPI value for your project. Fifty milliseconds
MVI56E-MNETCR ♦ ControlLogix Platform
pane.
ONFIGURATION
ProSoft Technology, Inc.
June 14, 2011
