Diagnostics and Troubleshooting
User Manual
4.2

Using the Diagnostics Menu in ProSoft Configuration Builder

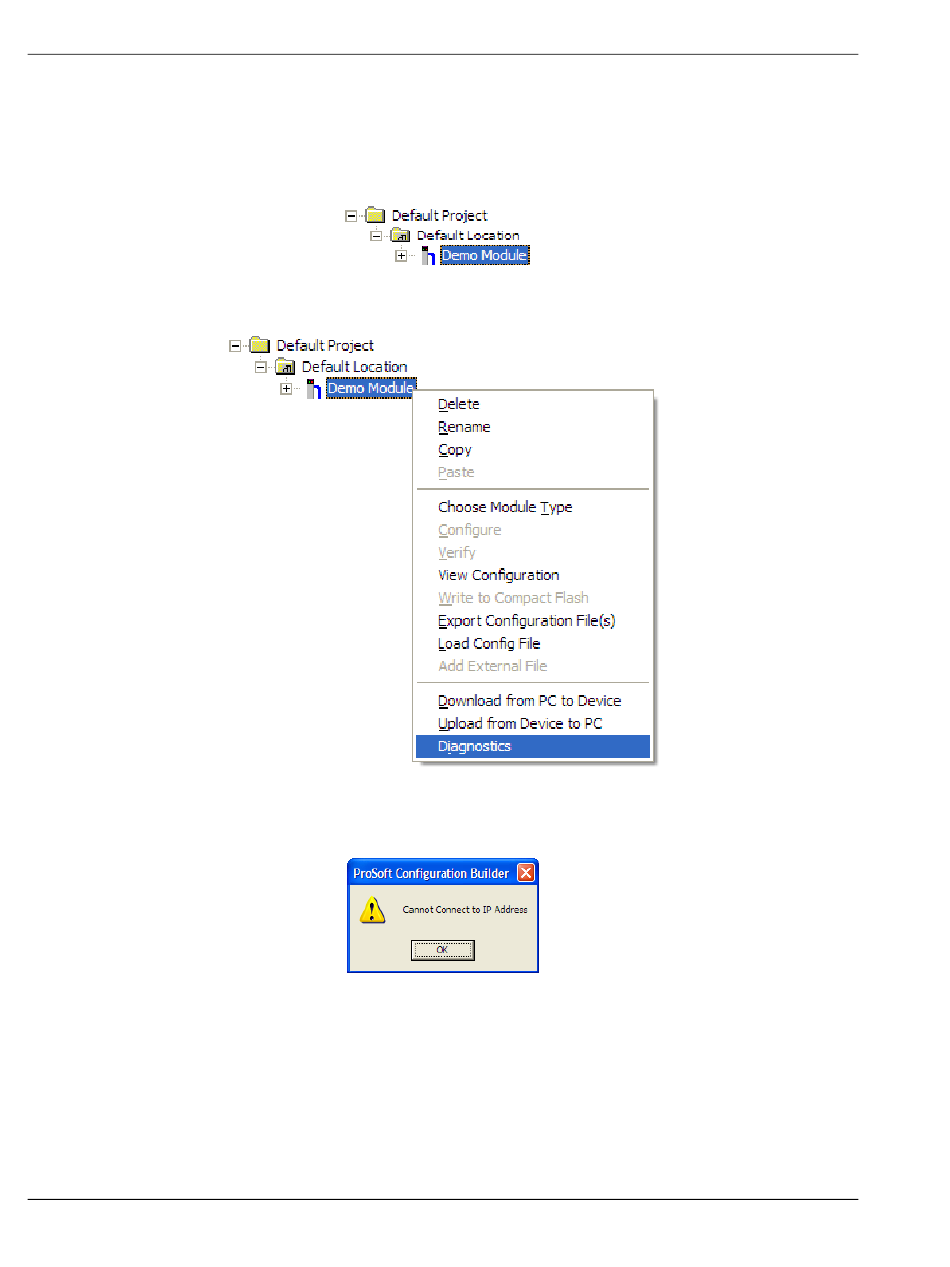

To connect to the module's Configuration/Debug Ethernet port:
In ProSoft Configuration Builder, select the module, and then click the right
1
mouse button to open a shortcut menu.
On the shortcut menu, choose D
2
This action opens the Diagnostics dialog box.
If there is no response from the module,
