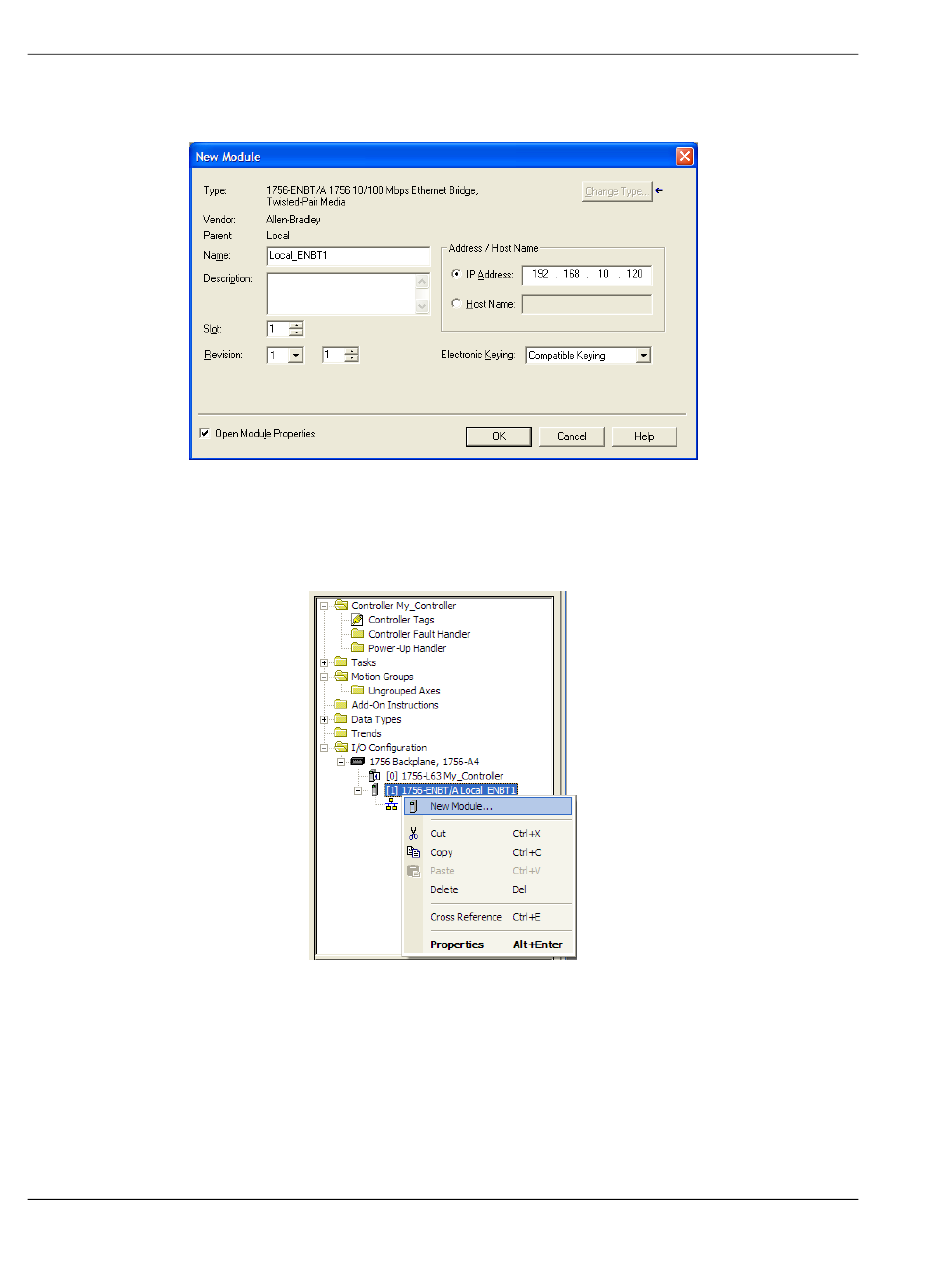

Name the ENBT/A module, then set the IP Address and slot location in the
3
local rack with the ControlLogix processor.
Click OK.
4
5 Next, select the 1756-ENBT module that you just created in the Controller
Organization pane and click the right mouse button to open a shortcut menu.
On the shortcut menu, choose N
Repeat steps 2 and 3 to add the second EtherNet/IP module to the remote
6
rack.
