4.2.1 The Diagnostics Menu

The Diagnostics menu, available through the Ethernet configuration port for this
module, is arranged as a tree structure, with the Main menu at the top of the tree,
and one or more submenus for each menu command. The first menu you see
when you connect to the module is the Main menu.

4.2.2 Monitoring Module Information

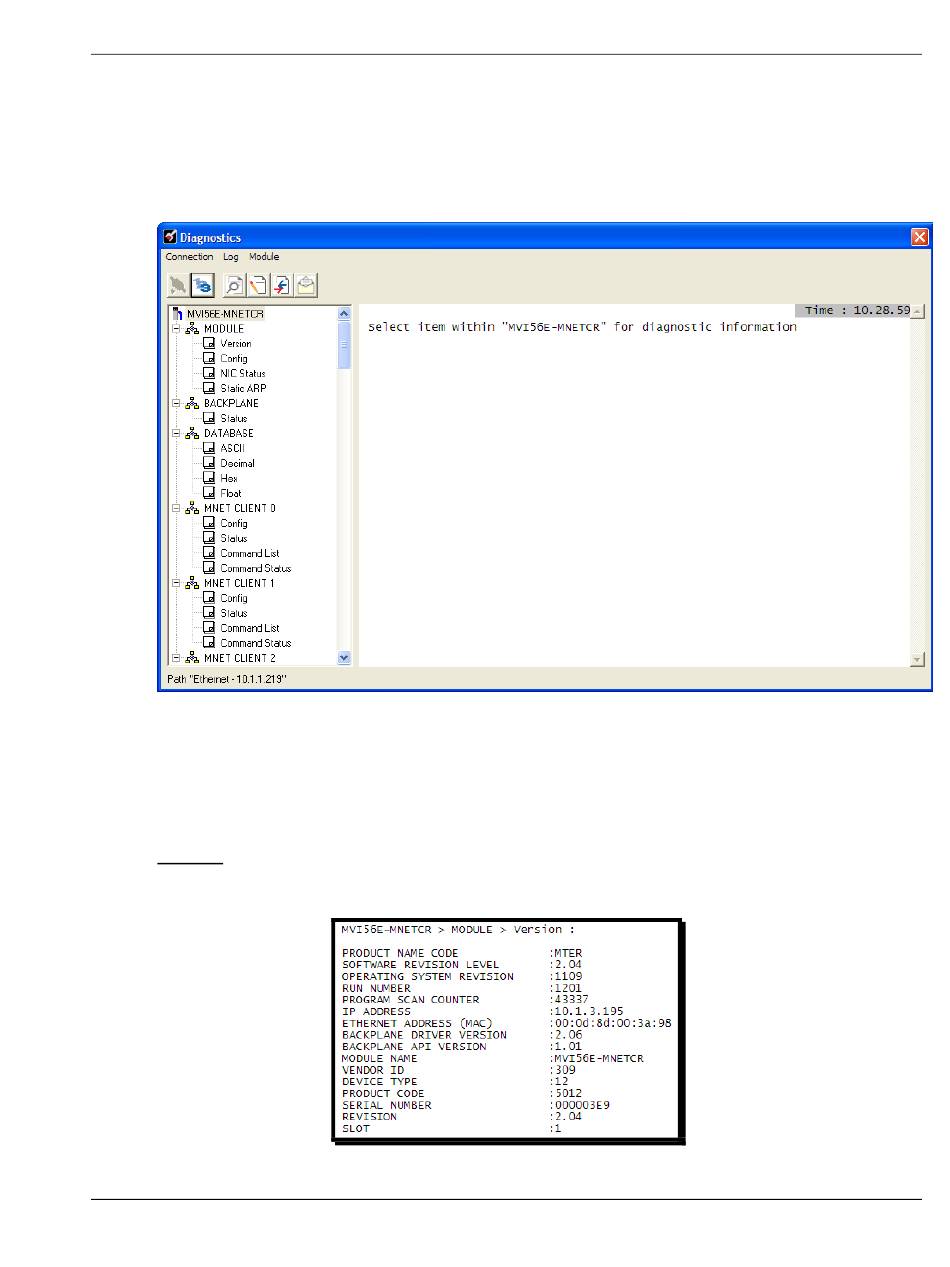

Use the MODULE menu to view configuration and hardware information for the
MVI56E-MNETCR module's backplane and Ethernet application port.
Version
Use the V
ERSION
ProSoft Technology, Inc.
June 14, 2011
menu to view module hardware and firmware information.
