Configuring the MVI56E-MNETCR Module
User Manual

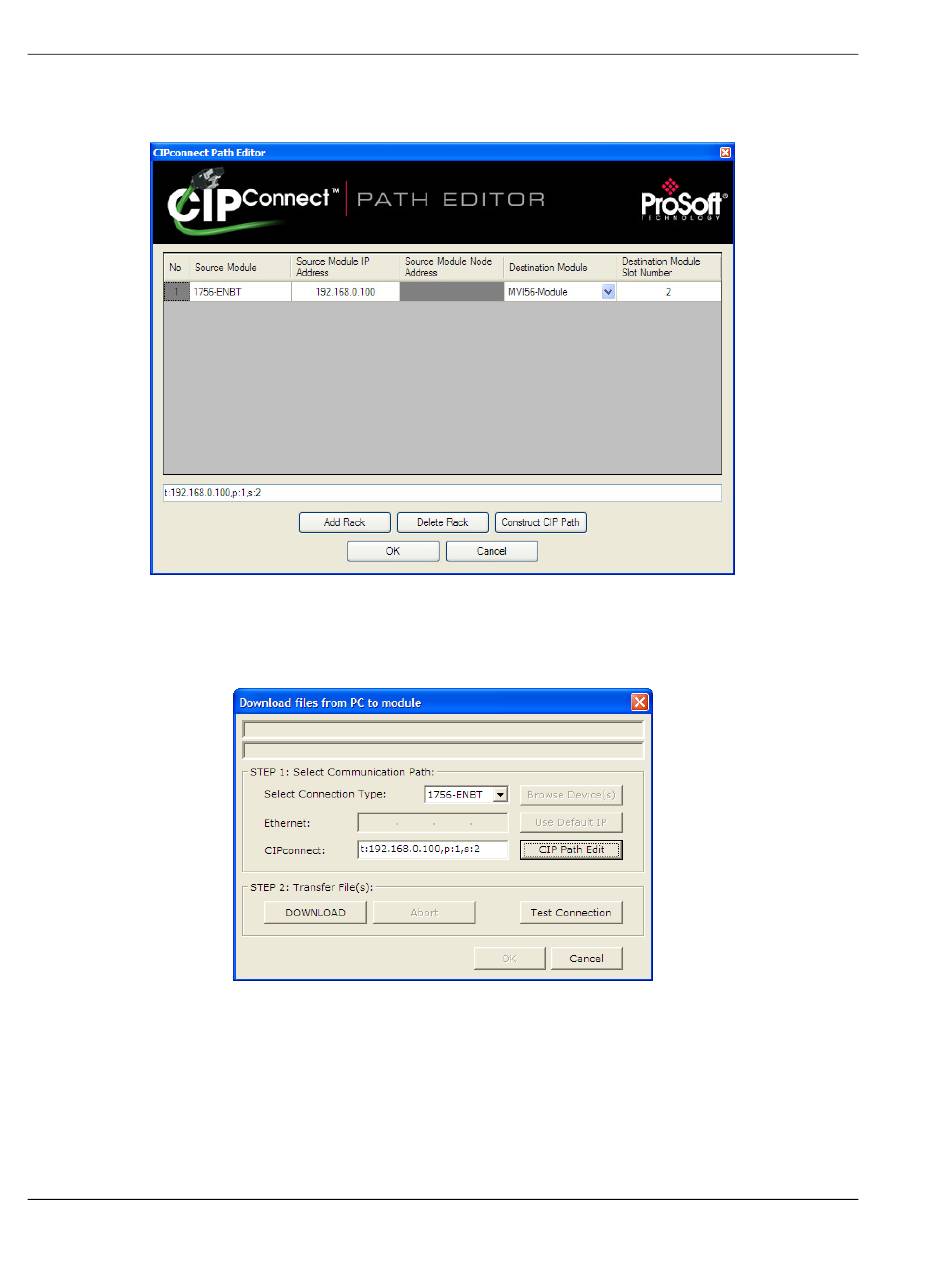

Configure the path as shown in the following illustration, and click
2
C
ONSTRUCT
Click OK to close the CIPconnect Path Editor and return to the Download
dialog box.
3 Check the new path in the Download dialog box.
Page 66 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
to build the path in text format.
CIP P
ATH
MVI56E-MNETCR ♦ ControlLogix Platform
