Reading The Clock Value From The Module - ProSoft Technology inRAX MVI56E-MNETCR User Manual

Reference
User Manual

5.6.6 Reading the Clock Value from the Module

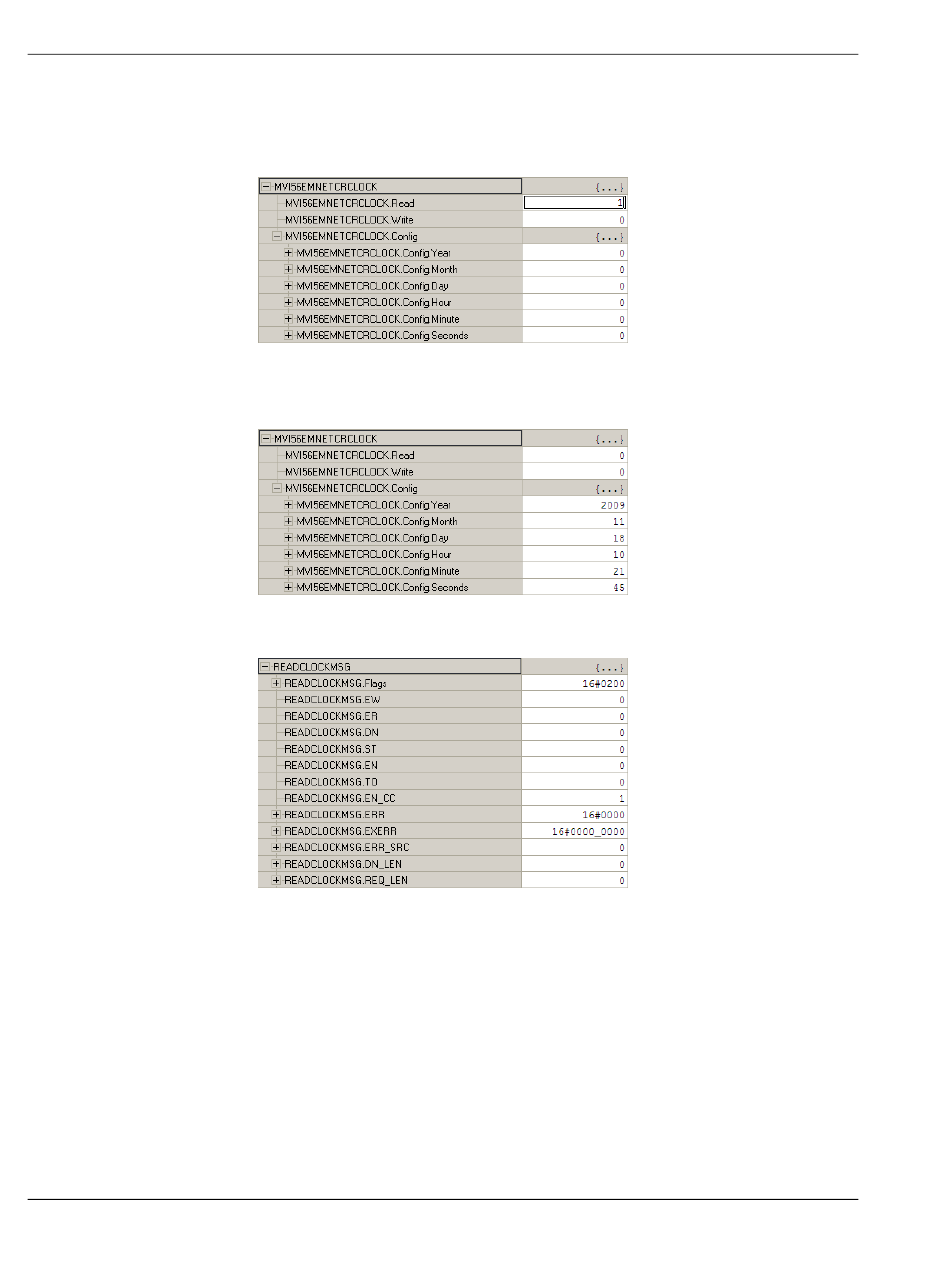

Expand the MVI56EMNETCRCLOCK controller tag and move a value of 1 to
MVI56EMNETCRCLOCK.R
The bit will be automatically reset and the current clock value will be copied to
MVI56EMNETCRCLOCK.C
To check the status of the message, refer to the READCLOCKMSG tag.
Page 140 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
EAD
controller tag as follows.
ONFIG
MVI56E-MNETCR ♦ ControlLogix Platform
ProSoft Technology, Inc.
June 14, 2011
