Configuring the MVI56E-MNETCR Module
User Manual

2.3.2 Example 2: Remote Rack Application

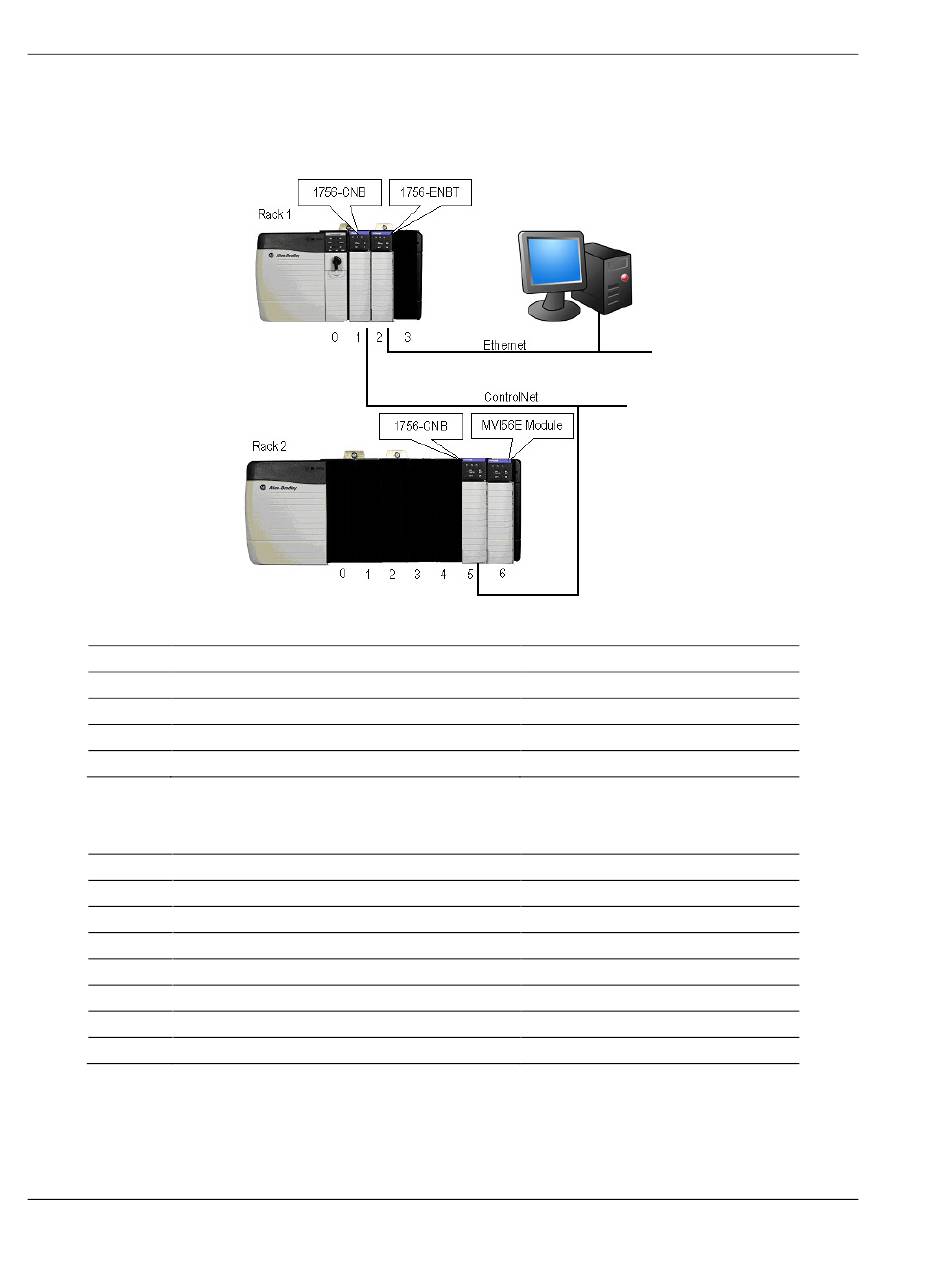

For this example, the MVI56E-MNETCR module is located in a remote rack
accessible through ControlNet, as shown in the following illustration.
Rack 1
Slot Module
0 ControlLogix Processor
1 1756-CNB
2 1756-ENBT
3 Any
Rack 2
Slot Module
0 Any
1 Any
2 Any
3 Any
4 Any
5 1756-CNB
6 MVI56E-MNETCR
Page 68 of 159
Modbus TCP/IP Multi Client Enhanced Communications Module for Remote Chassis
MVI56E-MNETCR ♦ ControlLogix Platform
Network Address
-
Node = 1
IP=192.168.0.100
-
Network Address
-
-
-
-
-
Node = 2
-
