1.11 Creating a New RSLogix 5000 Project

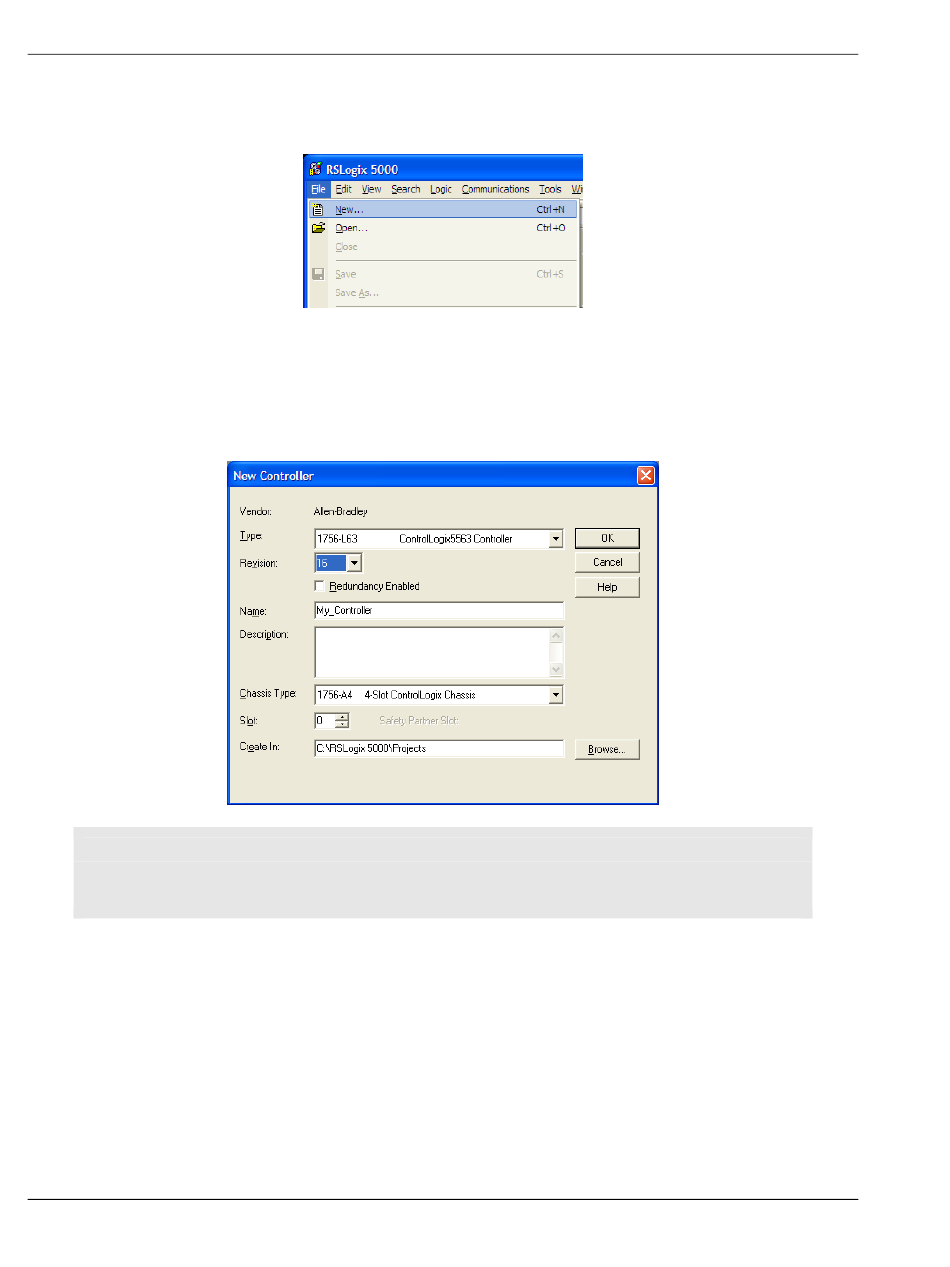

Open the F
1
Select your ControlLogix controller model.
2
Select R
3
EVISION
4 Enter a name for your controller, such as My_Controller.
Select your ControlLogix chassis type.
5
Select S
6
LOT
Note: If you are installing the MVI56E-MNETCR module in a remote rack, follow these next few
steps. If you are installing the module in a local rack, follow the steps in Create the Module - Local
Rack (page 31).
