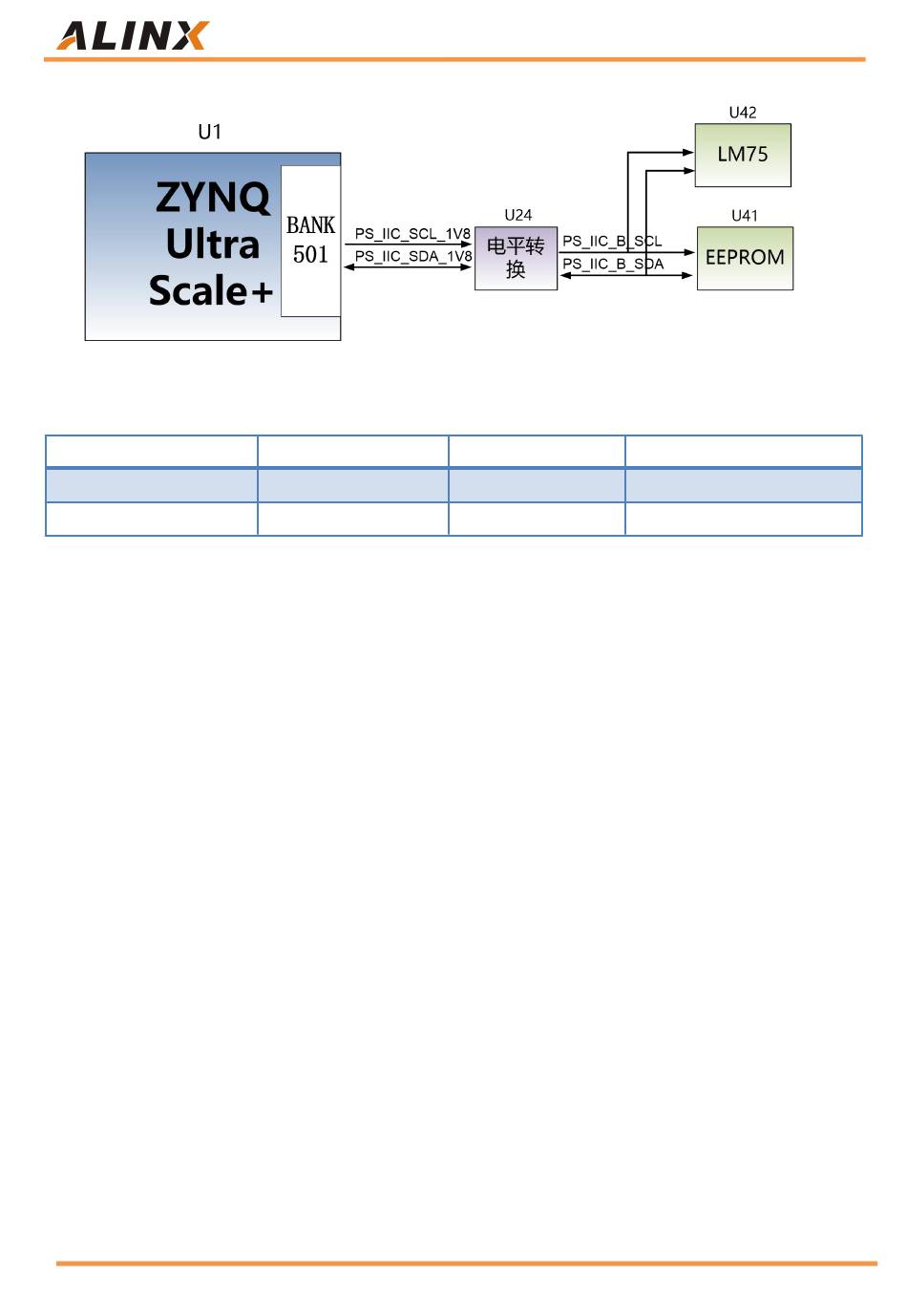

Figure 3-16-1: EEPROM and Sensor connection diagram
EEPROM pin assignment:
Signal Name
PS_IIC_SCL_1V8
PS_IIC_SDA_1V8

Part 3.17: User LEDs

There are 4 LEDs on the AXU9EGB Carrier board. including 1 two-color
indicator light, 1 DONE indicator, 1 PS control indicator, and 1 PL control
indicator. The user can control the on and off through the program. The
schematic diagram of the user's LED light hardware connection is shown in
Figure 3-17-1:
61 / 66
ZYNQ Pin Name
PS_MIO34
PS_MIO35
AXU9EGB User Manual
ZYNQ Pin Number
L22
P22
Description
I2C Clock Signal
I2C Data Signal
www.alinx.com
