PS System RTC Real Time Clock
The passive crystal Y1 on the core board provides a 32.768KHz real-time
clock source for the PS system. The crystal is connected to the PS_PADI_503
and PS_PADO_503 pins of BANK503 of the ZYNQ chip. The schematic
diagram is shown in Figure 2-6-2:
Figure 2-6-2: Passive Crystal Oscillator for RTC
Clock pin assignment:
PS_PADI_503
PS_PADO_503
26 / 66

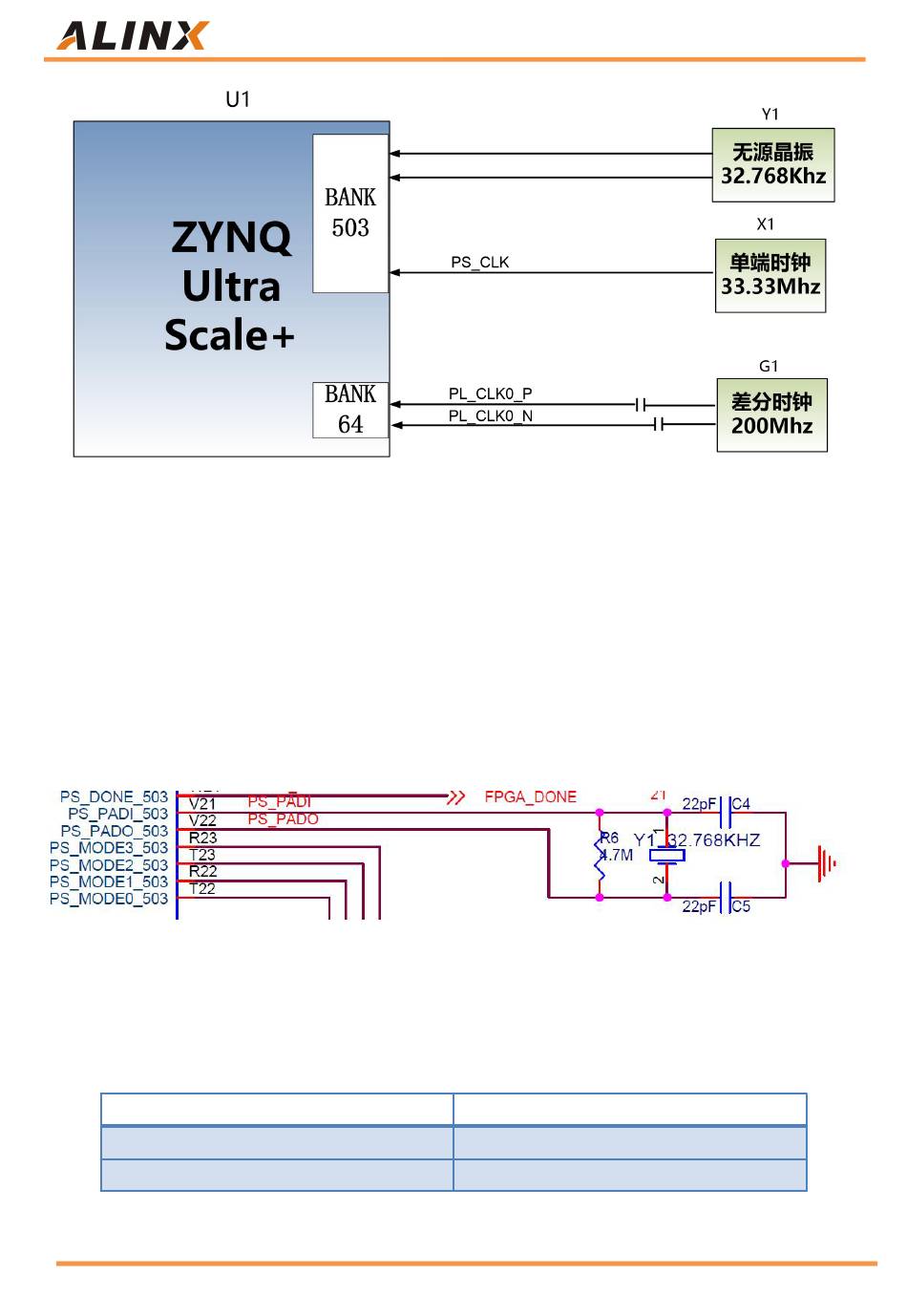

Figure 2-6-1: Core Board Clock Source
Signal Name
AXU9EGB User Manual
Pin
V21
V22
